Schneider BMXNOE0100 Ethernet TCP/IP Network Module

Product Description

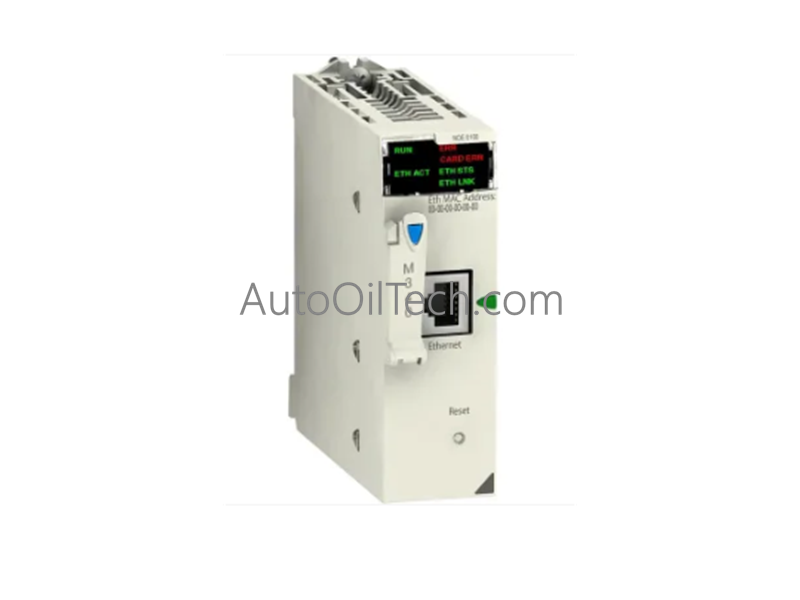

The BMXNOE0100 is a sophisticated Ethernet TCP/IP network module specifically designed for the Schneider Electric Modicon M340 automation platform. As a "Transparent Ready" Class B30 device, it provides seamless web-based access to real-time data, enabling advanced remote monitoring and diagnostic capabilities. This module serves as a high-speed communication bridge (10/100 Mbit/s), supporting critical services such as I/O Scanning, Global Data exchange, and Modbus TCP messaging. Equipped with a supplied Flash memory card and a rugged "TC" protective treatment, the BMXNOE0100 is engineered for reliable performance in demanding industrial environments.

Technical Specifications

• Manufacturer: Schneider Electric

• Model Number: BMXNOE0100

• Series: Modicon M340

• Module Type: Ethernet TCP/IP Network Module

• Concept: Transparent Ready (Class B30)

• Connection Type: RJ45 10BASE-T/100BASE-TX (1 Twisted Pair)

• Communication Services:

• I/O Scanning & Global Data

• Modbus TCP Messaging

• Web Server (Configurable)

• Bandwidth Management

• SNMP Network Administration

• Rack Viewer & Data Editor

• Memory: Supplied with BMXRWSC016M Flash Memory Card

• Diagnostics: 6 status LEDs (ETH ACT, RUN, ETH STS, ETH 100, CARD ERR, ERR)

• Power: Internal power supply via rack (90 mA @ 24 V DC)

• Protective Treatment: TC (Standard for all-climate durability)

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Net Weight: 0.2 kg (0.4 lbs)

Key Features & Networking Capabilities

The BMXNOE0100 (BMXNOE0100) transforms the Modicon M340 into a highly connected industrial node:

• Web Server (Class B30): Allows for remote data visualization and system configuration through a standard web browser, reducing the need for on-site specialized software.

• I/O Scanning: Simplifies the management of distributed devices by automatically polling and updating data from remote Ethernet I/O drops.

• Flash Memory Card: The included BMXRWSC016M card is used for application backup and activating advanced web server features, ensuring system settings are retained during power loss.

• Cold Restart Control: Features a front-facing RESET push-button, allowing for a controlled cold restart of the communication services without cycling power to the entire rack.
