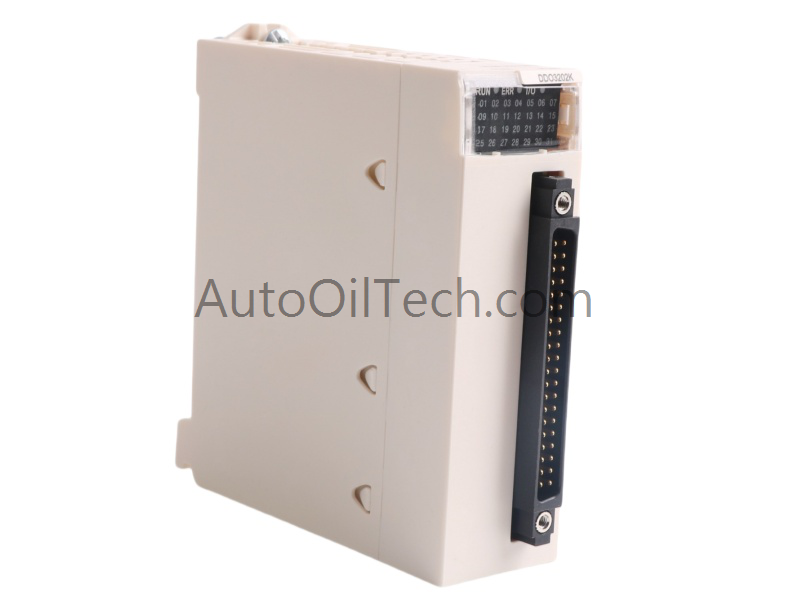

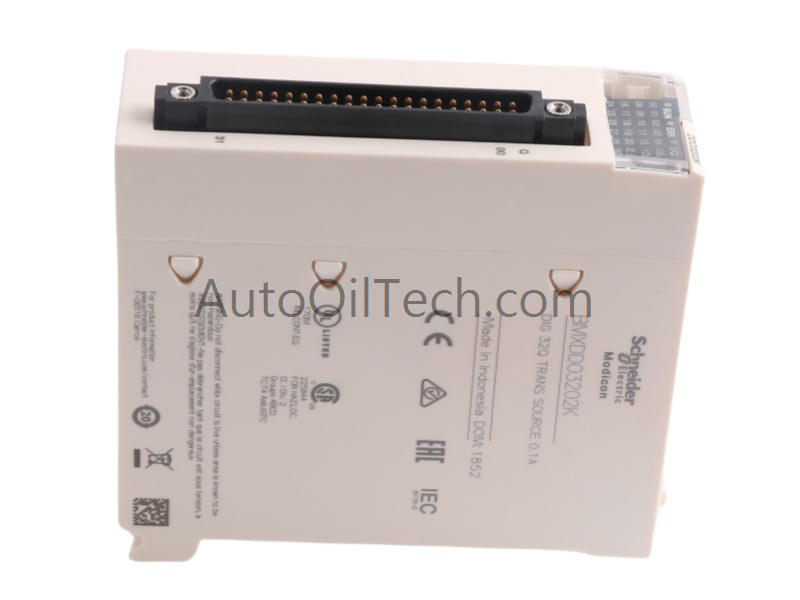

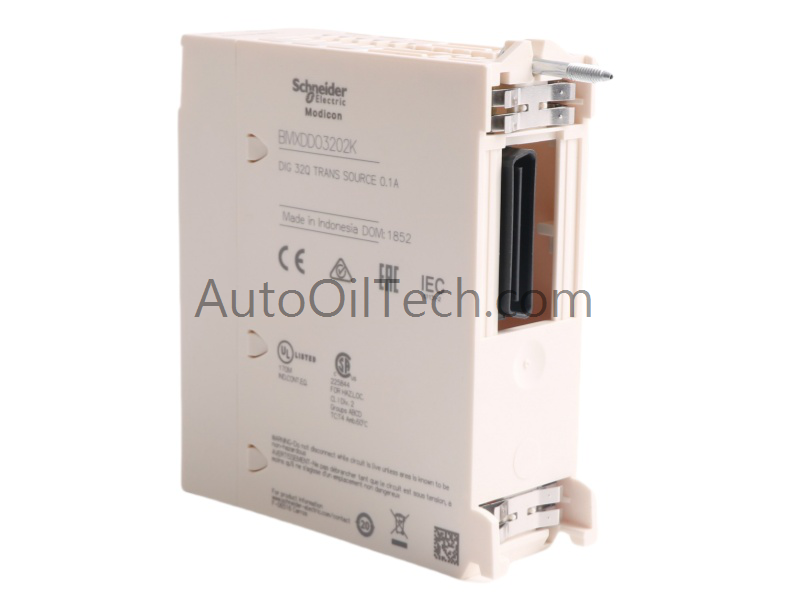

The BMXDDO3202K Discrete Output Module by Schneider Electric delivers 32-channel solid-state outputs for Modicon X80 PLC systems. Designed for high-density control applications, it features 24V DC positive logic and compact single-slot architecture, ensuring efficient operation and seamless integration.
Technical Specifications
Parameter
Value
Manufacturer
Schneider Electric
Model Number
BMXDDO3202K
Module Type
Discrete Output Module
Product Range
Modicon X80 Series
Output Channels
32
Output Type
Solid-state, 24V DC positive logic
Output Current
0.1A per channel, 3.2A total
Voltage Drop
<1.5V
Leakage Current
<0.1mA
Insulation Resistance
>10MΩ @ 500V DC
Power Dissipation
3.6W
Dimensions (W×H×D)
3.1 × 10.5 × 10.3 cm
Weight
0.12 kg
HS Code
8537101190
Operating Temperature
0°C to 60°C
IP Rating
IP20
Compliance Standards
EN/IEC 61131-2
System Compatibility
PLC (Modicon X80, M340 Series)
Product Origin
France
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
32 discrete outputs support high-density control applications.
Solid-state design ensures long-term reliability and fast switching.
Low leakage and voltage drop improve energy efficiency.
High insulation resistance enhances channel isolation and safety.
Compact form factor fits single-slot configurations in control panels.
IP20-rated enclosure protects electronics in industrial environments.
