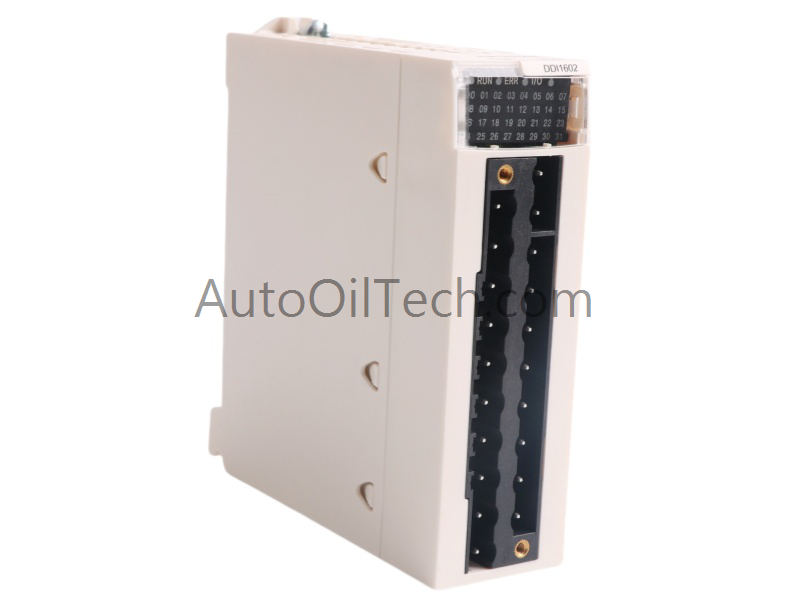

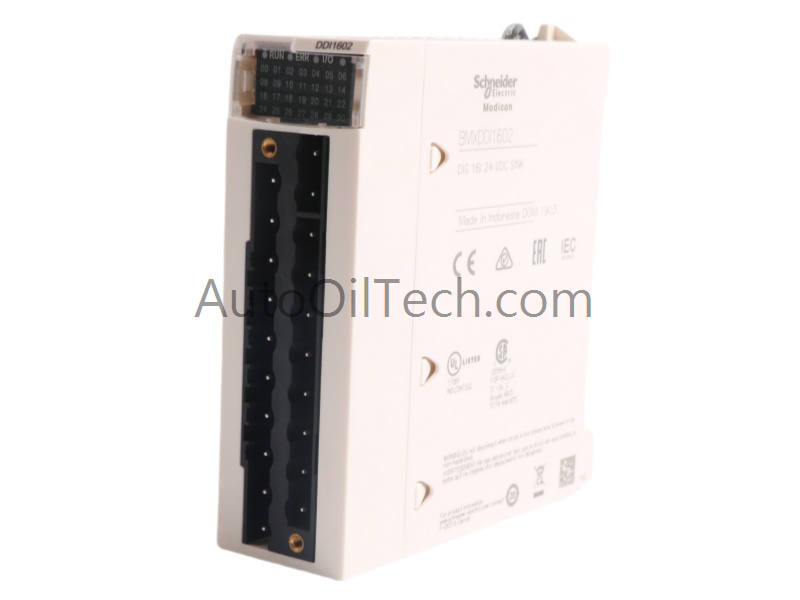

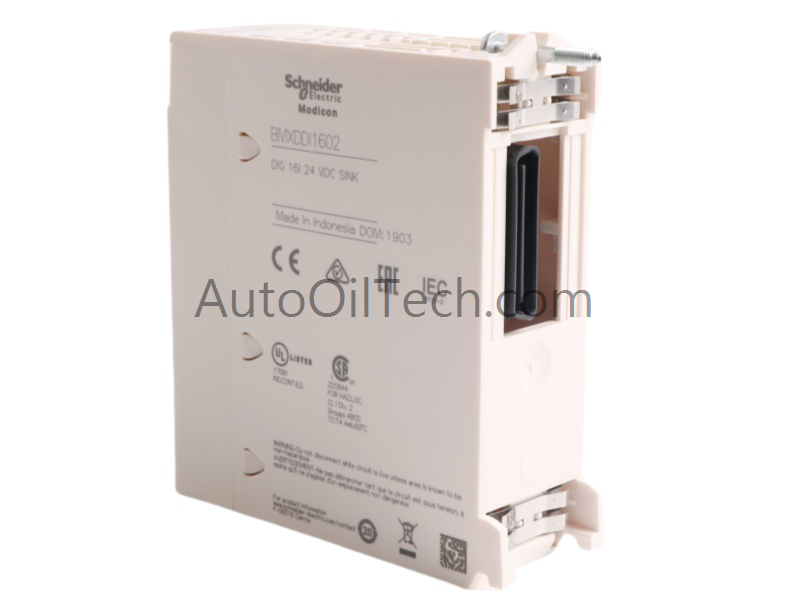

The BMXDDI1602 Digital I/O Module by Schneider Electric is a 16-channel discrete input unit designed for Modicon X80 PLC systems. It features 24V DC isolated inputs with positive logic, enabling precise signal acquisition in industrial automation environments.
Technical Specifications
Parameter
Value
Manufacturer
Schneider Electric
Model Number
BMXDDI1602
Module Type
Digital I/O Module
Product Range
Modicon X80 Series
Input Channels
16 isolated inputs
Input Voltage
24V DC (positive logic)
Input Current
3.5mA per channel
Response Time
4ms typical / 7ms max
Insulation Resistance
>10MΩ @ 500V DC
Power Dissipation
2.5W
Terminal Block
20-way removable
Dimensions (W×H×D)
3.1 × 9.7 × 10.3 cm
Weight
0.12 kg
HS Code
8537101190
Operating Temperature
0°C to 60°C
IP Rating
IP20
Compliance Standards
EN/IEC 61131-2
System Compatibility
PLC (Modicon X80)
Product Origin
France
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
16-channel input module supports high-density signal acquisition.
24V DC isolated inputs ensure compatibility with industrial sensors.
Fast signal response (4ms typical) suits time-sensitive control tasks.
Removable terminal block simplifies wiring and maintenance.
High insulation resistance improves channel isolation and safety.
Compact form factor fits single-slot configurations in control panels.
Applications & Compatibility
The BMXDDI1602 module is ideal for:
Manufacturing automation requiring fast input processing
Process control systems with multiple sensor inputs
