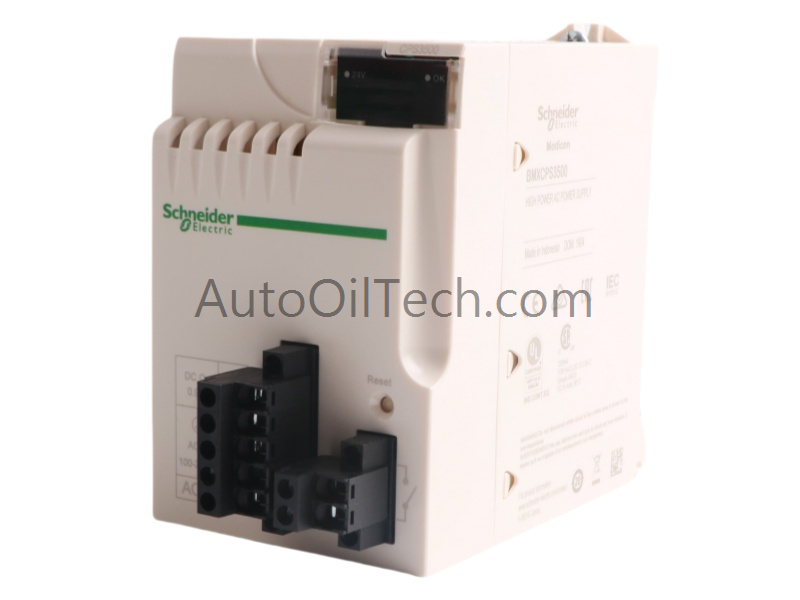

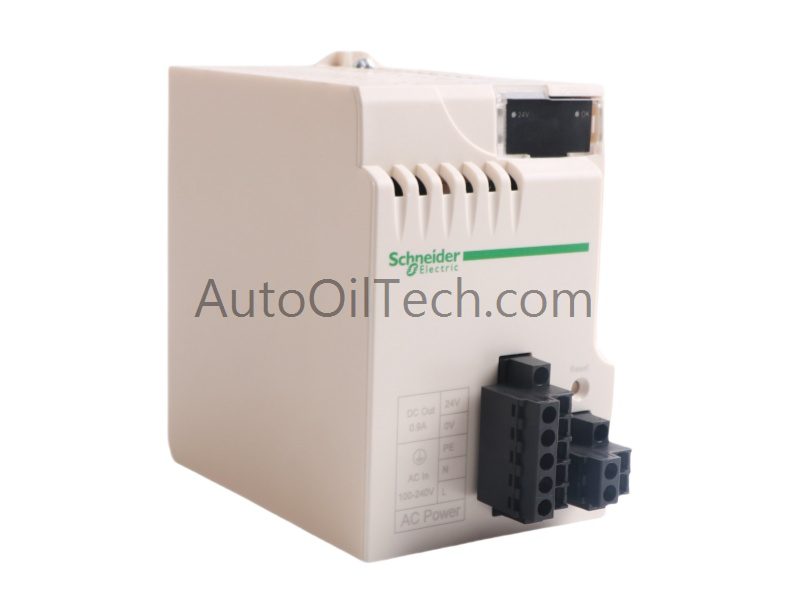

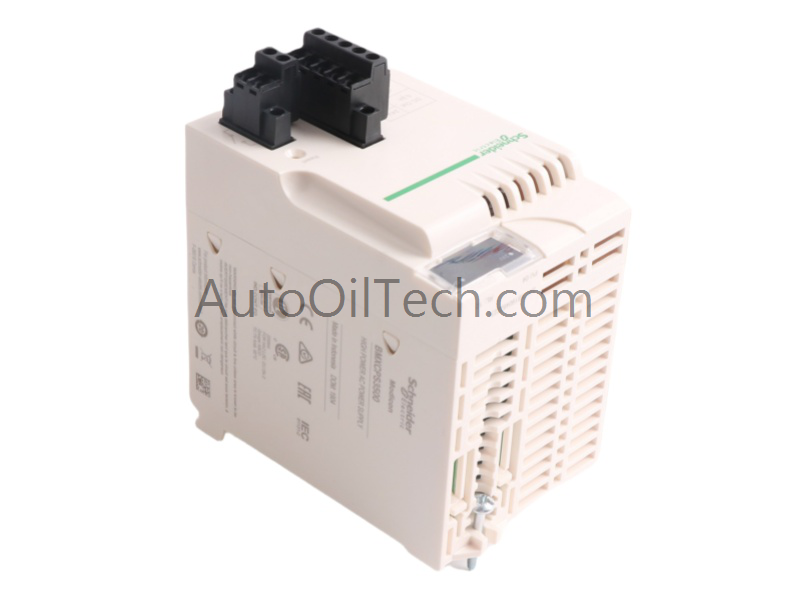

The BMXCPS3500 Power Supply Module from Schneider Electric is designed for Modicon X80 systems, supporting both M580 and M340 PACs. It delivers stable multi-voltage outputs and integrates seamlessly into industrial control architectures requiring high reliability and compact form factor.
Technical Specifications
Parameter
Value
Manufacturer
Schneider Electric
Model Number
BMXCPS3500
Module Type
Power Supply Module
Product Range
Modicon X80 Series
Input Voltage Range
100–240V AC
Output Power
31.2W @ 24V DC, 15W @ 3.3V DC
Total Secondary Power
36W
Max Power Dissipation
8.5W
Connectors
2-pin alarm relay, 5-pin line supply
Protective Earth
Yes
Mounting Type
DIN-rail
Dimensions (W×H×D)
6.7 × 15.4 × 58.5 cm
Weight
1.36 kg
HS Code
8537101190
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Humidity Resistance
Up to 95%
Certifications
CE, UL, CSA
Compliance Standard
EN 61131-2
IP Rating
IP20
System Compatibility
PLC (M580, M340)
Product Origin
France
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
Dual output channels support I/O and logic circuits simultaneously.
Intelligent power distribution ensures efficient energy use and thermal management.
Compact IP20-rated housing fits tight control panel spaces.
Global certifications ensure compliance with industrial safety standards.
Wide input voltage and frequency tolerance for international deployment.
