- Schneider Electric BMXAMI0810H Modicon X80 Analog Input Module
Sale

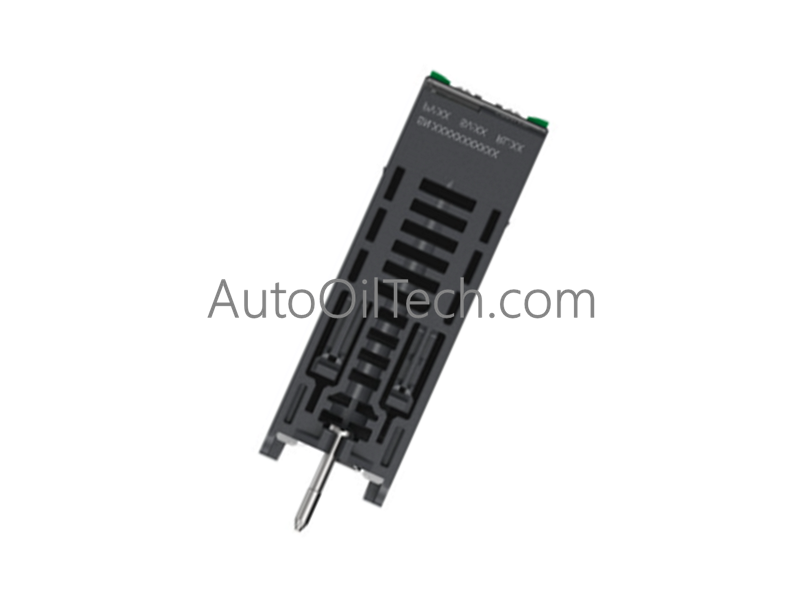

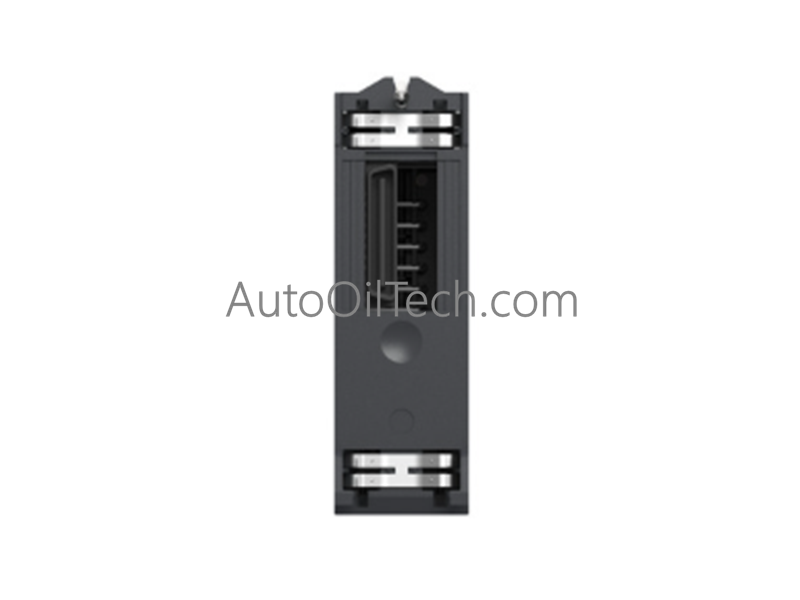

Schneider Electric BMXAMI0810H Modicon X80 Analog Input Module
No reviews
In stock!
- Part Number: BMXAMI0810H
- Brand: Schneider Electric
- Type: Analog Input Module
- Dimensions: 4x10.5x25cm
- Country of Origin: France
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
The Schneider Electric BMXAMI0810H, also cataloged as the BMXAMI0810H Analog Input Module, operates as a dedicated hardware component for isolated high-level parameter tracking within severe industrial environment platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | BMXAMI0810H |
| Brand | Schneider Electric |
| Origin | United States (US) |
| Weight | 0.175 kg (0.386 lb) |
| Dimensions | Standard Modicon X80 single-slot ruggedized module form factor |
| Operating Temp | -25 to 70 deg C (-13 to 158 deg F) |
| Power Consumption | 1.50 W 24 V DC maximum / 0.48 W 3.3 V DC maximum |
| Analogue Input Quantity | 8 isolated high-level channels |
| Input Signal Types | 0-20 mA, 4-20 mA, +/-20 mA, 0-5 V, 1-5 V, 0-10 V, +/-5 V, +/-10 V |
| Analog/Digital Conversion | 16 bits (15 bits + sign resolution) |
| Common Mode Rejection | 80 dB |
| Input Overload Limit | +/-30 mA (current mode), +/-30 V (voltage mode) |

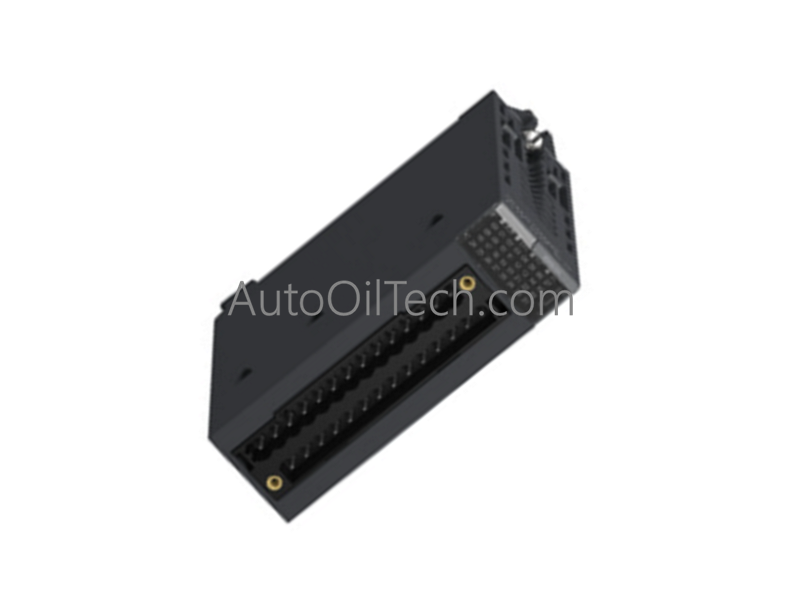

| Electrical Connection | 1 connector with 28 ways |
| Isolation Voltage | 300 V DC channel-to-channel, 1400 V DC channel-to-ground/bus |
| Environmental Hardening | Conformal coating, Gas class 3C4/Gx, Dust/Sand class 3S4 |
Modicon X80 Platform Backplane Architecture
The BMXAMI0810H hardware core establishes multi-channel data filtering matrices designed to track system variables across backplane bus communication velocity Licences. By providing 1400 V DC hardware separation between the processing array and the local chassis, the module translates analog current and voltage inputs into native binary fields without introducing data conversion loop lag.
The internal physical layers manage data conversions over Profinet / EtherNet/IP deterministic networks via the standard chassis interconnection path. The instrumentation layout facilitates ongoing I/O density scaling routines, completing a fast read cycle profile within 1 ms baseline plus 1 ms per active channel deployed (9 ms nominal sequence for all 8 paths). The conversion hardware retains an internal resistance precision profile of 0.1 % across severe thermal gradients, utilizing integrated first-order digital filtering algorithms while maintaining complete software configuration firmware flash compatibility across standard EcoStruxure Control Expert engineering execution tools.
Frequently Asked Questions
Q: How does the channel-to-channel isolation on the BMXAMI0810H handle ground potential loops?
A: The module contains internal electrical barriers providing 300 V DC isolation between individual channels. This separation prevents stray ground loops from corrupting data signals when tracking field transmitters that are tied to different local ground references.
Q: What action does the module take when an input signal transcends the standard 4-20 mA scale limits?
A: The input conversion circuitry supports an extended measurement limit up to 30 mA. If an input exceeds this threshold, the module flags an over-range error vector via the front panel I/O LED status array and passes a diagnostic fault bit to the central processor process image.
