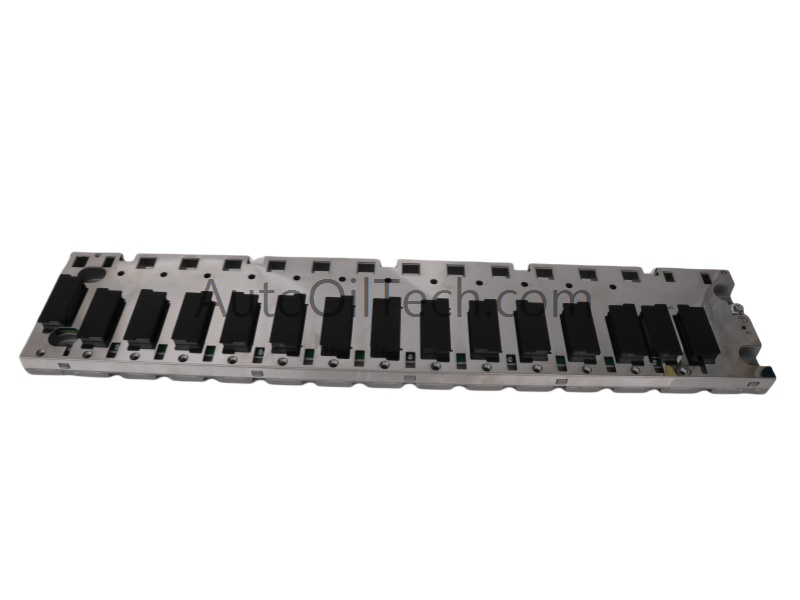

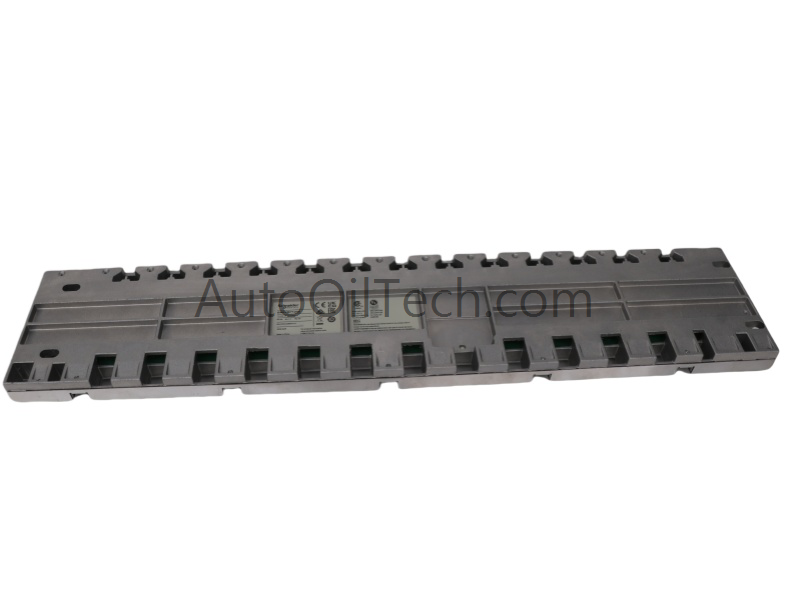

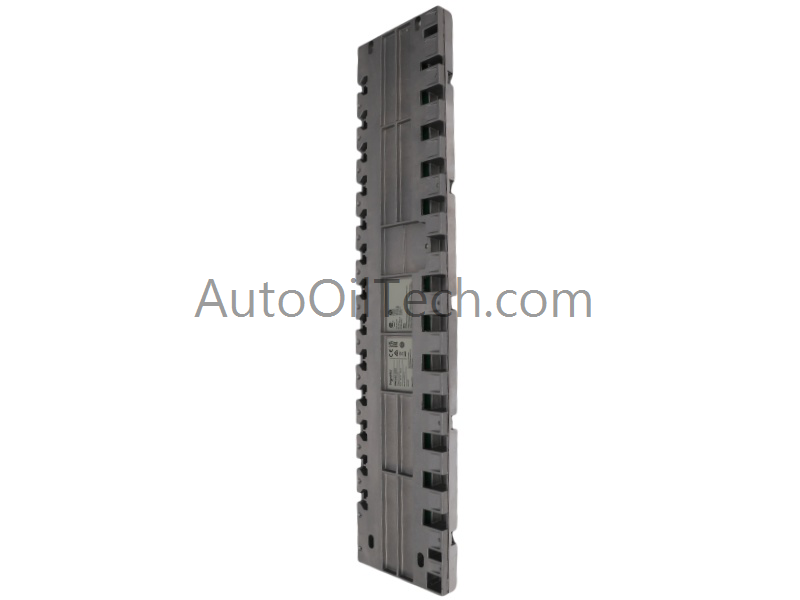

The BMEXBP1200 Rack by Schneider Electric is a 12-slot Ethernet backplane engineered for Modicon X80 systems. It supports M580, M340, and Quantum Ethernet I/O modules, offering a unified platform for scalable industrial automation.
Technical Specifications
Parameter
Value
Manufacturer
Schneider Electric
Model Number
BMEXBP1200
Module Type
Rack
Product Range
Modicon X80 Series
Slot Configuration
8 mixed slots + 4 X-bus slots
Architecture
Dual Ethernet and X-bus
MTBF Rating
1,500,000 hours
Power Consumption
164mA @ 24V DC
Expansion Connector
XBE module connector
Dimensions (W×H×D)
6.7 × 15.4 × 58.5 cm
Weight
1.36 kg
HS Code
8537101190
Operating Temperature
0°C to 60°C
IP Rating
IP20
Certifications
CE, UL, CSA
Compliance Standards
EN 61131-2, EN 61000-6-4
System Compatibility
PLC (M580, M340, Quantum Ethernet I/O)
Product Origin
France
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
12-slot layout supports mixed and X-bus modules for flexible system design.
Dual Ethernet and X-bus architecture enables high-speed communication and modular expansion.
164mA low power draw at 24V DC ensures energy-efficient operation.
IP20-rated enclosure suitable for protected industrial environments.
Compact footprint allows space-saving installation in control cabinets.
MTBF of 1.5 million hours ensures long-term reliability.
