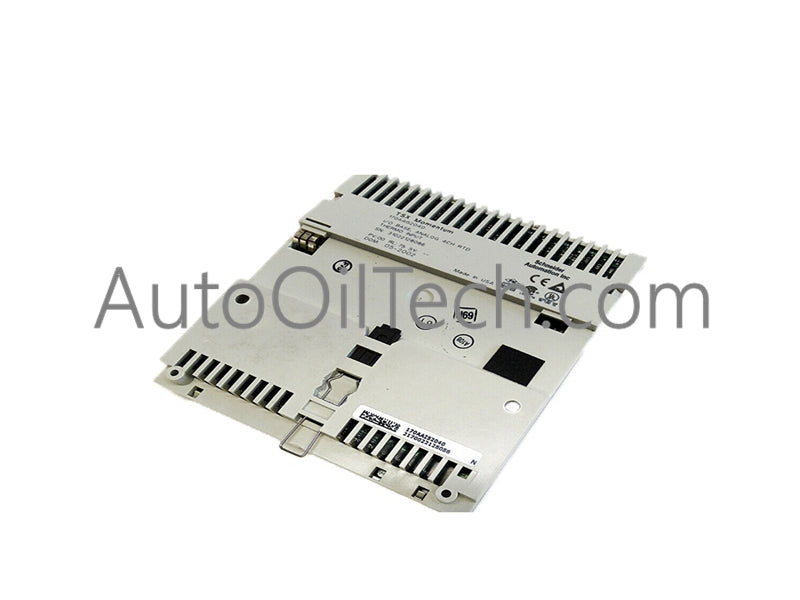

Schneider Electric 170ADM35010 Discrete Solid State I/O Base

Product Description

The Schneider Electric Modicon Momentum 170ADM35010 is a discrete solid state I/O base DC module designed for the Modicon Momentum automation platform. It provides 16 inputs and 16 outputs, organized into two groups of 8 outputs and one group of 16 inputs, making it ideal for compact, distributed control applications.

Key Features

Main Specifications

• Range of Product: Modicon Momentum automation platform

• Product Type: Discrete Solid State I/O Base DC

• Inputs: 16 discrete inputs (positive logic, 24 VDC, –3…30 V range)

• Outputs: 16 discrete outputs (solid state switches, ≤30 VDC, 24 VDC typical)

• Groups:

  • 2 groups of 8 outputs

  • 1 group of 16 inputs

Electrical Characteristics

• Input Resistance: 4 kΩ

• Peak Output Current: 5 A

• Discrete Output Current:

  • 0.5 A per point

  • 4 A per group

  • 8 A per module

• Leakage Current: ≤1 mA at 24 VDC output circuit

• Voltage Drop: <0.5 V at state 1 for output circuit

• Typical Current Consumption: 250 mA at 24 VDC

• Power Dissipation: 6 W

• Isolation: 500 VAC between channels and bus

Performance

• Response Time:

  • Outputs: <0.1 ms (state 0→1 or 1→0)

  • Inputs: 2.2 ms (state 0→1), 3.3 ms (state 1→0)

• Guaranteed States:

  • Voltage state 1: 11…30 V

  • Voltage state 0: –3…5 V

  • Current state 1: ≥2.5 mA

  • Current state 0: ≤1.2 mA

Mechanical & Local Signalling

• Local Signalling: 16 LEDs for channel status

• Dimensions:

  • Height: 141.5 mm

  • Width: 125 mm

  • Depth: 47.5 mm

• Net Weight: 0.2 kg

Environmental & Standards

• IP Protection: IP20

• Protective Treatment: TC (Tropicalization for harsh environments)

• Certifications: CE, UL, CSA

• Operating Temperature: 0…60 °C

• Storage Temperature: –40…85 °C

• Relative Humidity: Up to 95% (non-condensing)

• Operating Altitude: ≤5000 m

FAQ

Q: How many I/O channels does the 170ADM35010 provide? A: It provides 16 inputs and 16 outputs.

Q: What is the maximum current per output point? A: Each output supports up to 0.5 A.

Q: How fast is the response time? A: Outputs switch in <0.1 ms, while inputs respond in 2.2–3.3 ms.

Q: Does the module include overload protection? A: Yes, outputs are electronically protected against overloads.
