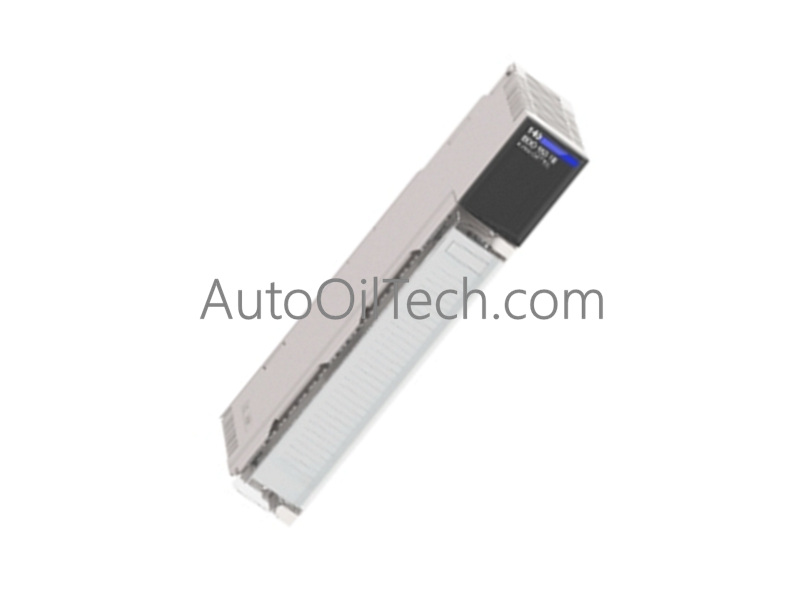

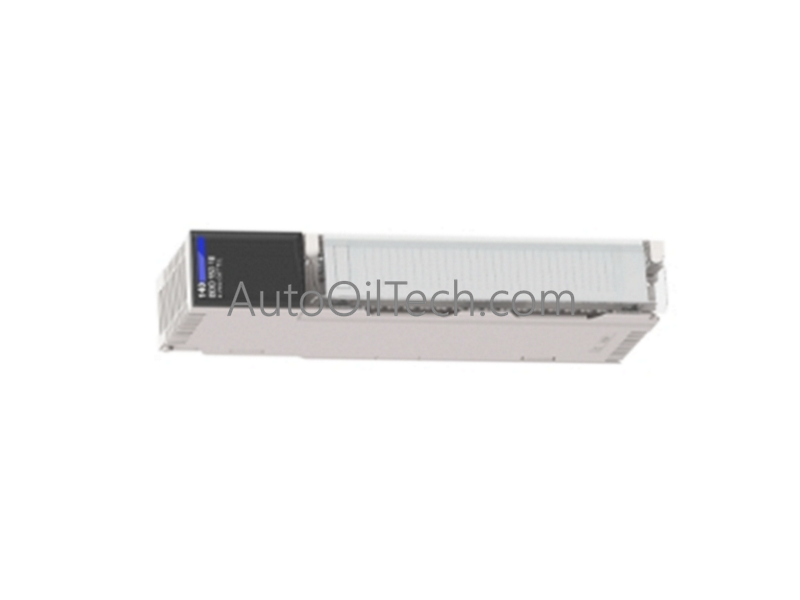

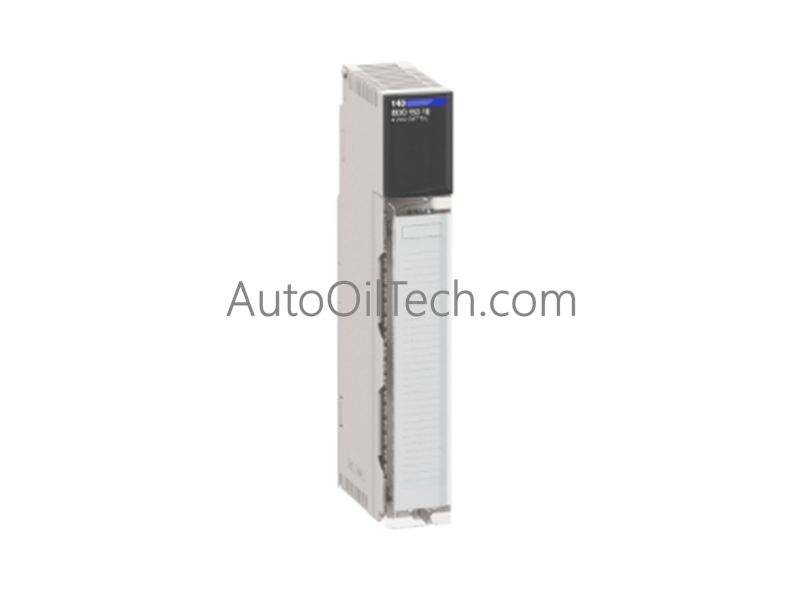

The Schneider Electric 140DDO35310, also cataloged as the 140DDO35310 DC Discrete Output Module, operates as a dedicated hardware component for solid-state binary load sink control within Modicon Quantum automation networks.
Hardware Specifications
Parameter
Specification
Model
140DDO35310
Brand
Schneider Electric
Origin
France / Global Standard Architecture
Weight
0.45 kg (0.99 lb) net module mass
Dimensions
Standard Modicon Quantum single-slot form factor
Operating Temp
0 to 60 deg C (32 to 140 deg F)
Power Dissipation
2.0 W + (0.4 V x total load current)
Bus Current Requirement
330 mA via internal backplane configuration
Discrete Output Number
32 outputs organized in 4 groups of 8 channels
Discrete Output Logic
Negative logic (Sink configuration)
Discrete Output Voltage
24 V DC nominal (19.2 to 30 V DC limits)
Maximum Load Current
16 A per module / 4 A per channel group
Response Time
<= 1 ms state-to-state transitions
Isolation Breakdown
1780 Vrms DC channel-to-bus / 500 Vrms DC group-to-group
Environmental Hardening
FM Class 1 Division 2 hazardous location clearance
Modicon Quantum Platform Backplane Architecture
The 140DDO35310 hardware architecture processes high-density discrete switching tables designed to track system variables across backplane bus communication velocity Licences. Occupying an allocation grid that maps exactly to 2 output words inside the central processing unit register, the module converts internal bus logic states into physical current conduction paths over Profinet / EtherNet/IP deterministic networks via external process nodes.
