Schneider BMXXBE2005 Backplane Extender Kit

Product Description

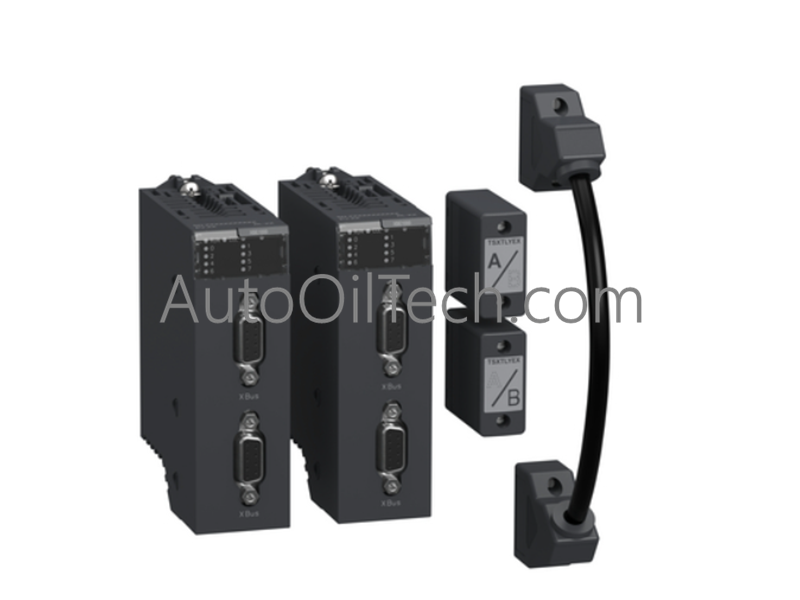

The BMXXBE2005 is a specialized backplane expansion kit designed for the Schneider Electric Modicon M340 automation platform. This essential connection accessory allows for the physical extension of the PLC backplane, enabling the interconnection of multiple racks. By facilitating high-speed communication across extended distances, the BMXXBE2005 kit provides the scalability required for complex industrial architectures. This kit is a critical component for systems that exceed the slot capacity of a single local rack, ensuring seamless data flow throughout the entire I/O configuration.

Technical Specifications

• Model Number: BMXXBE2005

• Range Compatibility: Modicon M340 / Modicon X80

• Product Type: Backplane Extender Kit

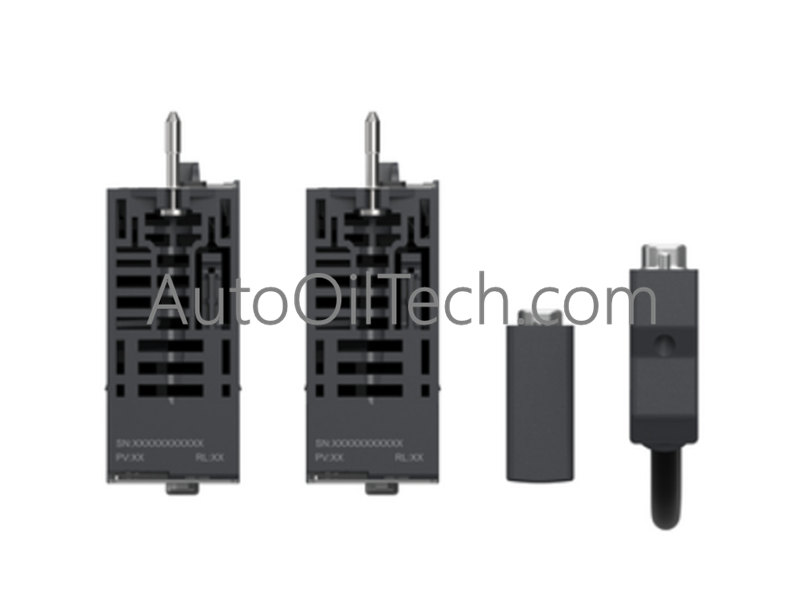

• Kit Composition: High-speed expansion cable and line terminators

• Compatibility: Designed for use with the BMXXBE1000 rack expansion module

• Standards Compliance: IEC 61131-2, IEC 61010-2-201, IACS E10

• Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC), 2014/34/EU (ATEX)

• Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy

• Hazardous Location Ratings: ATEX/IECEx Zone 2/22, Class I Division 2

• Weight: 0.634 kg (1.4 lbs)

• Country of Origin: France (FR)

Key Engineering Features

• High-Integrity Bus Extension: Engineered to maintain signal quality across multiple racks, the kit includes precision line terminators to prevent signal reflection and ensure stable communication on the X-bus.

• Harsh Environment Ready: Certified for ATEX/IECEx Zone 2/22 and Hazardous Location Class I Division 2, making it suitable for oil and gas, chemical processing, and other volatile industrial environments.

• Marine & Offshore Certified: With Merchant Navy and IACS E10 certifications, this extender kit is verified for the high-vibration and corrosive atmosphere requirements of maritime applications.

• Comprehensive Compliance: Meets stringent electromagnetic compatibility (EMC) standards (IEC 61000-6-5), ensuring reliable operation near high-voltage equipment and power interfaces.

• System Scalability: Directly supports the modular nature of the M340 platform, allowing engineers to expand I/O capacity without sacrificing the performance or "Transparent Ready" capabilities of the processor.
