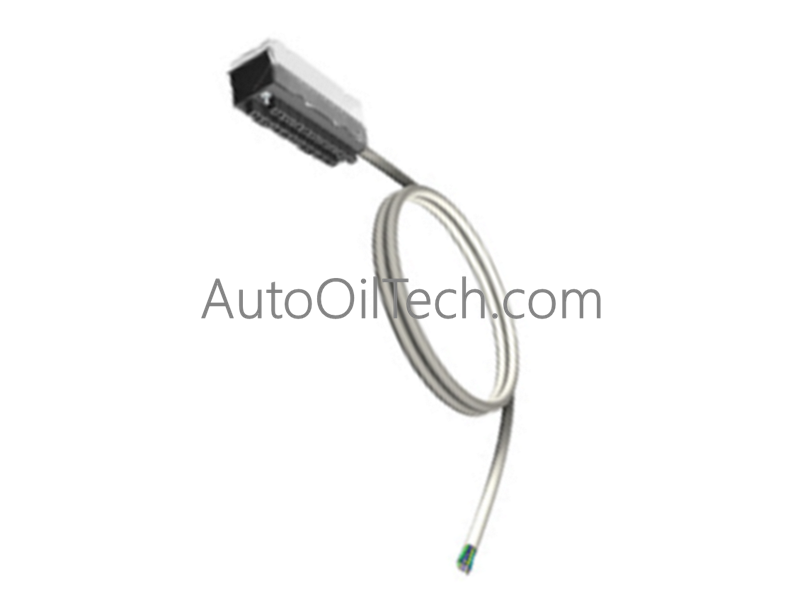

Schneider BMXFTW301S Preformed Shielded Cordset

Product Overview

The BMXFTW301S (3595863920420) is a specialized 3-meter preformed shielded cordset designed for the Modicon X80 automation platform. It provides a streamlined connectivity solution between specific analog I/O modules and field devices. Featuring a 20-way removable terminal block on the module side and color-coded flying leads on the field side, this cordset simplifies wiring, reduces installation time, and ensures signal integrity for sensitive analog measurements in high-interference environments.

Technical Specifications

• Brand: Schneider Electric

• Range: Modicon X80

• Model Designation: BMXFTW301S

• Accessory Type: Preformed Cordset (Shielded)

• Cable Length: 3 m (9.8 ft)

• Module Side Connection: 1 x 20-way Removable Terminal Block

• Field Side Connection: 1 x Free end with color-coded flying leads

• Compatibility: BMXAMI0410 (Analog Input), BMXAMO0210 (Analog Output), BMXAMM0600 (Mixed Analog)

• Shielding: Integrated shielding for electromagnetic noise reduction

• Net Weight: 0.47 kg (1.04 lb)

• Operating Environment: Industrial standard for Modicon X80 racks

• Country of Origin: Tunisia (TN)

• Warranty: 18 Months

Engineering Insights and Connectivity Logic

The BMXFTW301S is engineered to eliminate the manual complexity of wiring high-density analog modules. Analog signals are highly susceptible to electromagnetic interference (EMI); therefore, this "S" variant (Shielded) is mandatory for maintaining the precision of 4-20mA or 0-10V signals across the 3-meter distance. The 20-way connector is keyed to the module side to prevent incorrect insertion, while the flying leads allow technicians to terminate directly to field terminal strips or DIN-rail blocks without needing intermediate adapters. This cordset is particularly effective in high-vibration or compact cabinet layouts where custom-made cables might fail due to poor termination.
