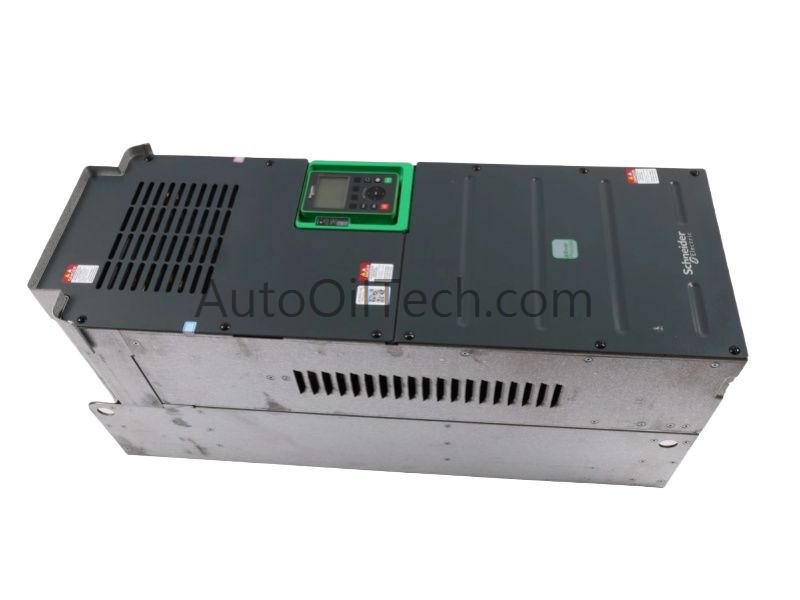

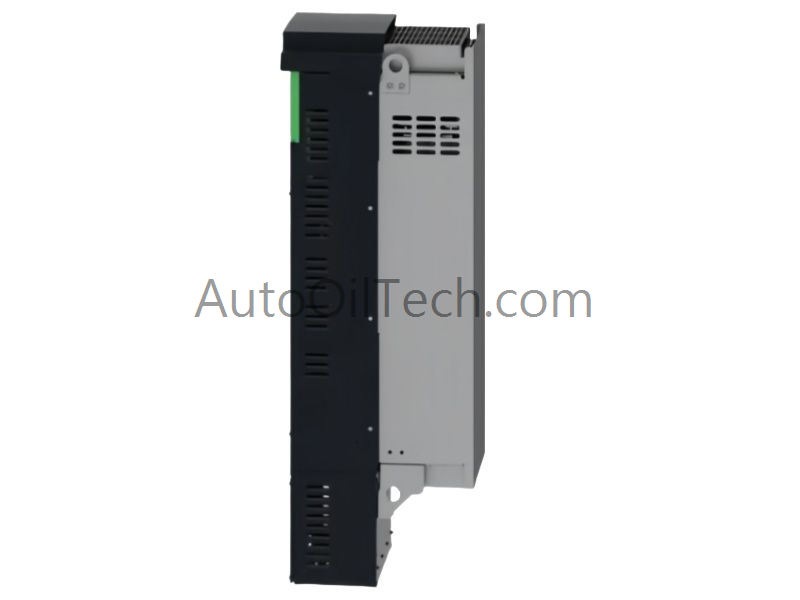

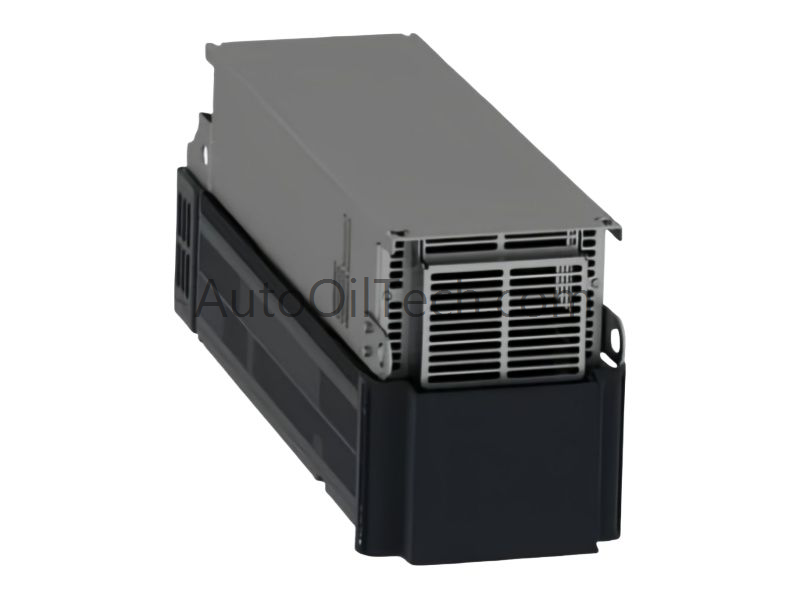

The ATV630C22N4 Variable Speed Drive by Schneider Electric is a robust motor control solution from the Altivar Process ATV600 series. Designed for 220kW (350HP) motors, it delivers precise speed regulation, energy efficiency, and advanced diagnostics for demanding industrial environments.
Technical Specifications
Parameter
Value
Manufacturer
Schneider Electric
Model Number
ATV630C22N4
Module Type
Variable Speed Drive
Product Range
Altivar Process ATV600 Series
Motor Power Rating
220kW / 350HP
Input Voltage
3-phase 380–480V AC
Supply Frequency
50–60 Hz ±5%
Cooling System
Forced convection
Enclosure Type
IP00 (open-type, panel mount)
Dimensions (W×H×D)
27.9 × 21.6 × 6.3 cm
Weight
1.9 kg
HS Code
8537101190
Communication Interface
Ethernet Router
System Compatibility
PLC
Product Origin
France
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
Supports 220kW asynchronous motors with stable performance under fluctuating power conditions.
Forced convection cooling ensures thermal stability during continuous operation.
IP00 open-type enclosure designed for protected panel mounting.
±5% frequency tolerance enhances reliability in unstable power environments.
Advanced diagnostics and configuration tools reduce downtime and simplify maintenance.
Compatible with pumps, fans, conveyors, and other process control applications.
Applications & Compatibility
The ATV630C22N4 drive is ideal for:
Industrial motor control in manufacturing and utilities
Energy-efficient automation of pumps and fans
Process control systems requiring high-power drives
Integration into Schneider Electric’s Altivar Process architecture
