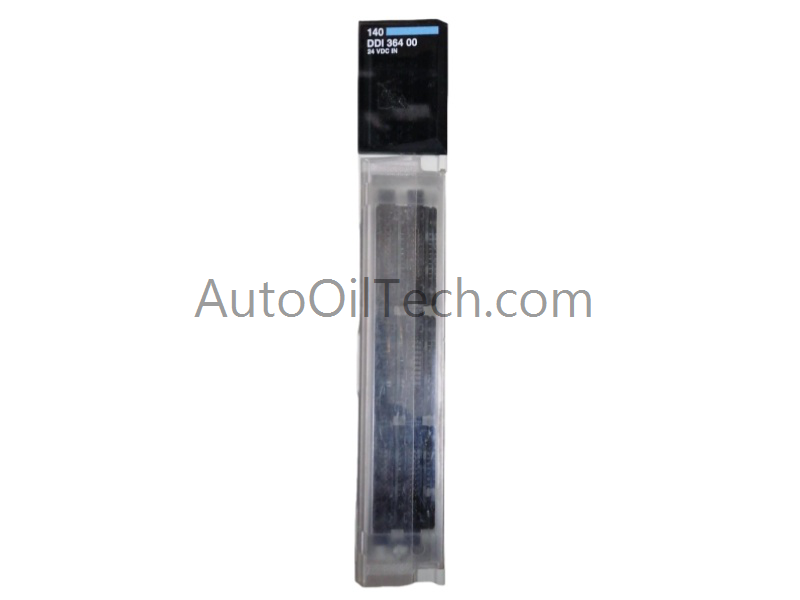

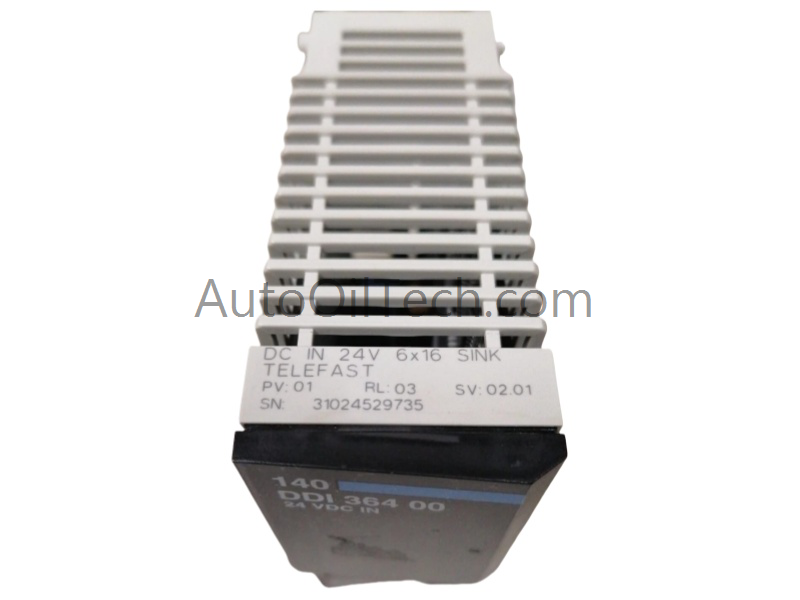

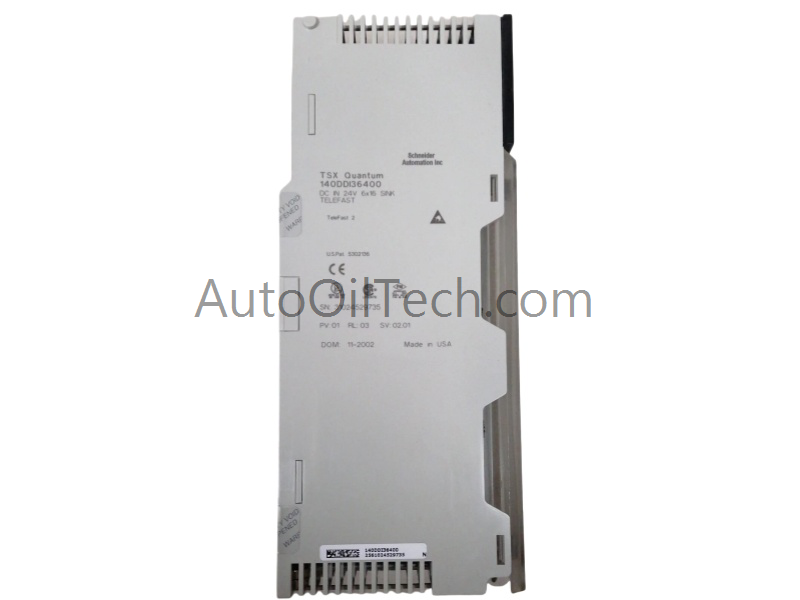

The 140DDI36400 Digital Input Module by Schneider Electric is a high-density 96-channel input unit designed for Modicon Quantum PLC systems. It supports 24V DC sinking logic and delivers fast, reliable signal acquisition for demanding industrial automation environments.
Technical Specifications
Parameter
Value
Manufacturer
Schneider Electric
Model Number
140DDI36400
Module Type
Digital Input Module
Product Range
Modicon Quantum Series
Input Channels
96
Input Voltage Range
19.2V to 30V DC
Input Configuration
Sinking, positive logic
Input Resistance
6700 ohms
Response Time
≤ 2ms (OFF→ON), ≤ 3ms (ON→OFF)
Transient Voltage Tolerance
Up to 50V DC
Isolation
500 Vrms between input groups
Base Power Dissipation
1.35W
Additional Power per Input
0.13W
Bus Current Draw
270mA
LED Indicators
96 green (status), 1 red (fault), 1 green (bus)
Dimensions (W×H×D)
6.5 × 23.5 × 25 cm
Weight
0.4 kg
HS Code
8537101190
Operating Temperature
Industrial-grade (0°C to 60°C typical)
IP Rating
IP20
System Compatibility
PLC (Modicon Quantum)
Product Origin
France
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
96 discrete inputs enable high-density signal acquisition for large control systems.
Fast switching response ensures accurate real-time monitoring.
Built-in electrical isolation enhances safety and reliability.
LED indicators provide clear status and fault diagnostics.
Compact modular design simplifies integration into Quantum racks.
Low power draw and efficient heat dissipation reduce system load.
