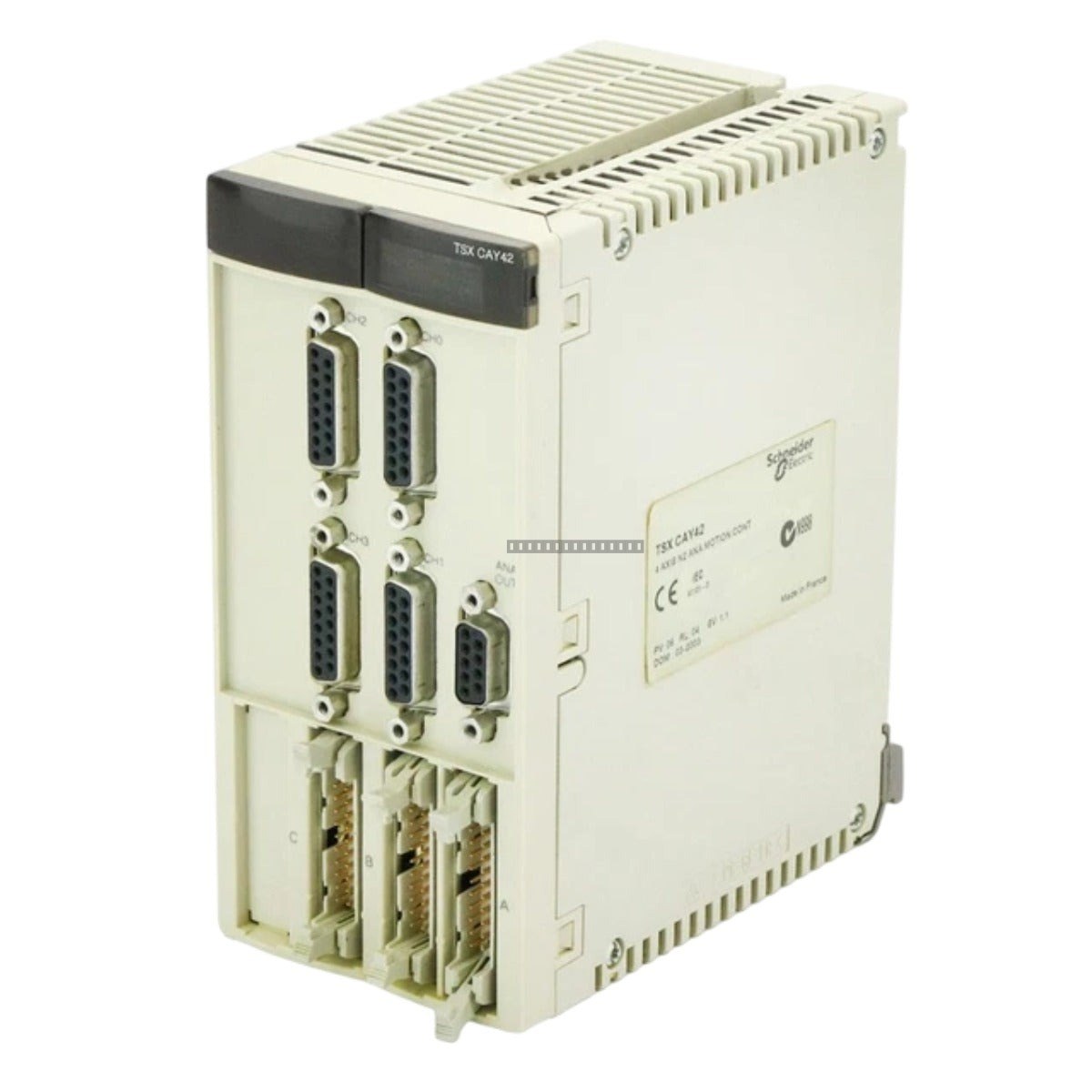

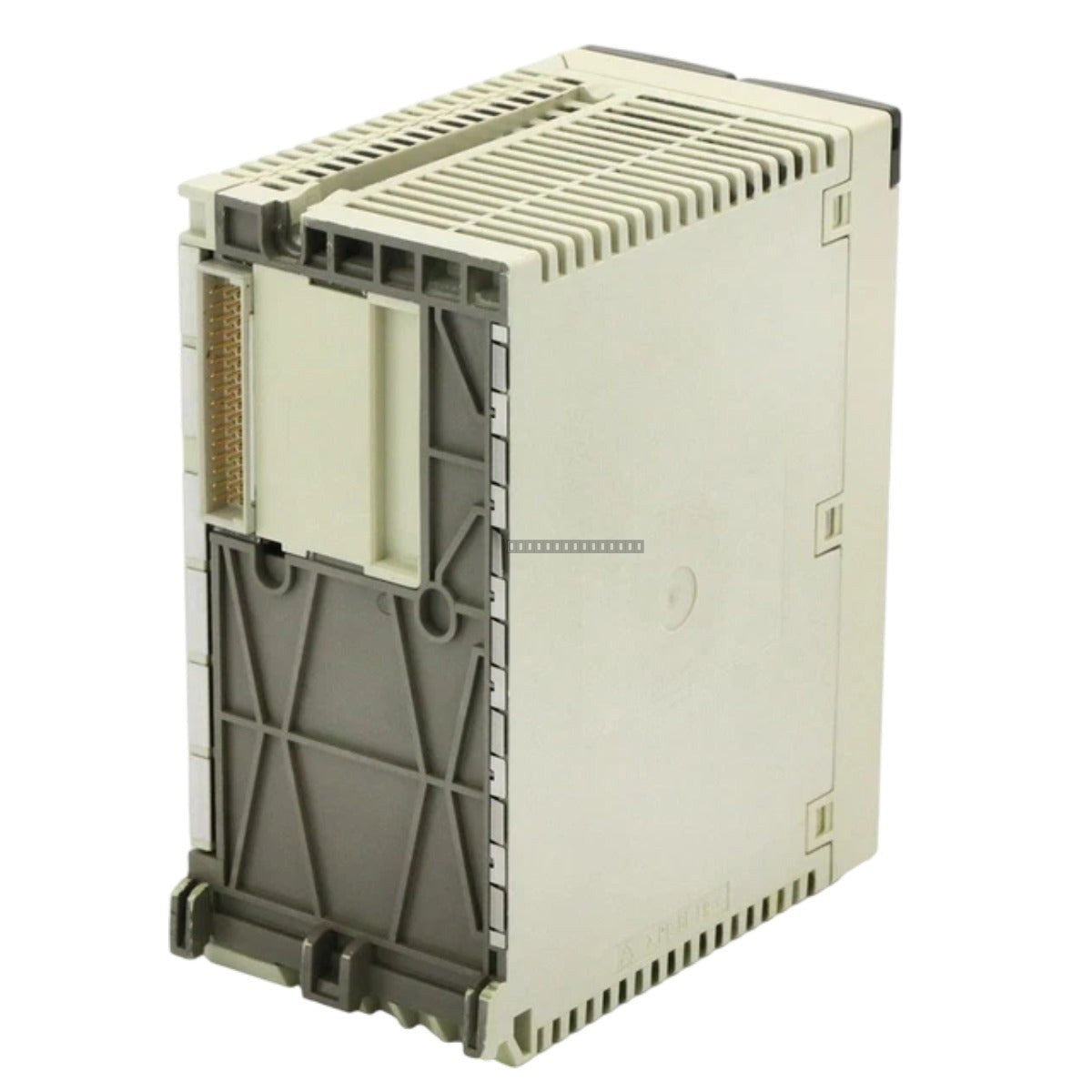

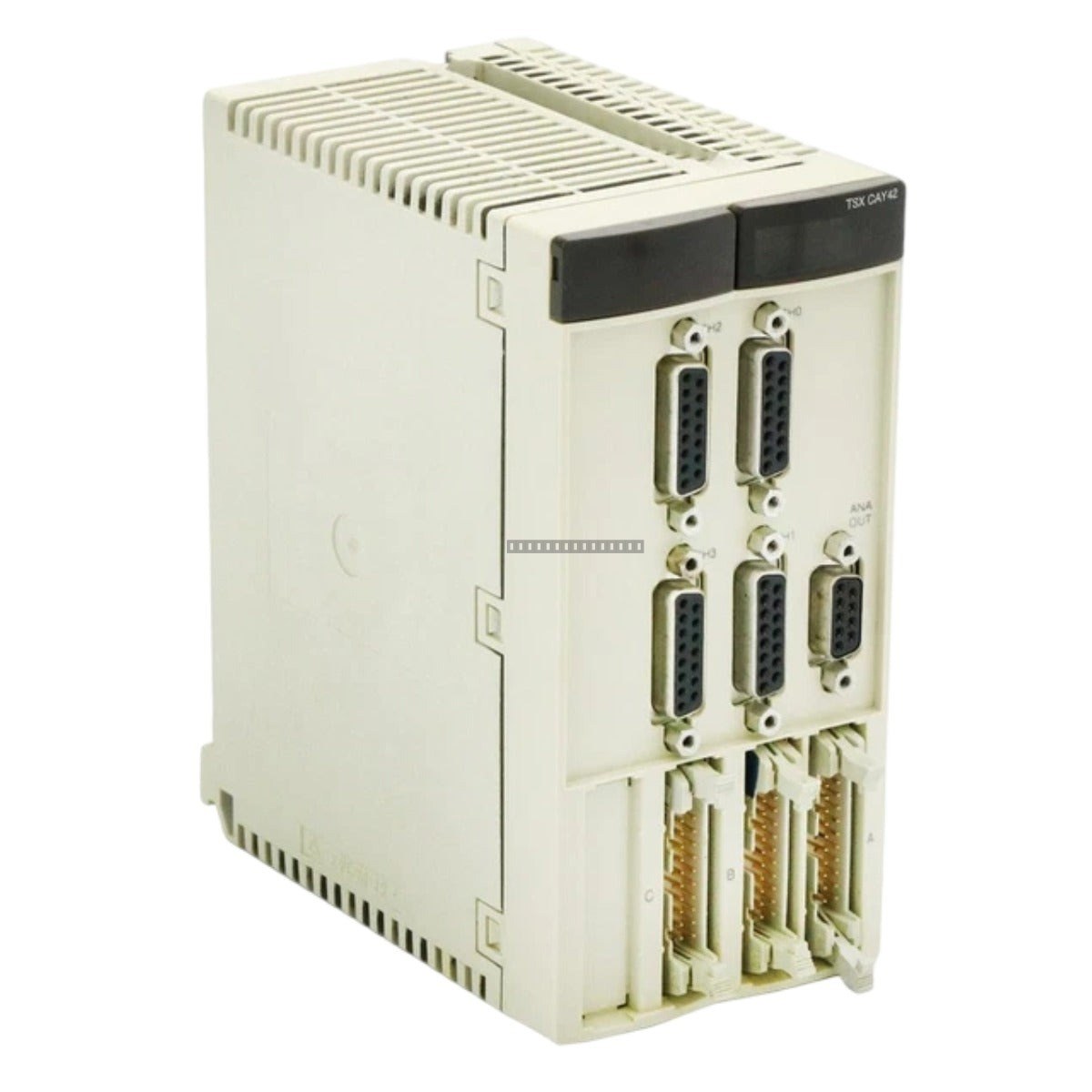

The Schneider Electric TSXCAY42C is a high-performance motion control module designed for the Modicon Premium automation platform. This module provides precise control for up to 4 axes of servomotors, enabling complex motion profiles in industrial automation environments. It is engineered to deliver reliable performance with a cycle time range of 8 ms to 10 s, supporting demanding motion control requirements.
Features
Supports control for up to 4 independent axes.
Designed for seamless integration with the Modicon Premium PLC range.
Optimized for high-precision servomotor management.
Configurable cycle times ranging from 8 ms to 10 s.
Robust construction suitable for industrial control cabinet environments.
Applications
The TSXCAY42C is intended for use in automated manufacturing systems requiring multi-axis synchronization, including packaging machinery, material handling equipment, and complex assembly lines utilizing the Modicon Premium architecture.
Technical Specifications
Model
TSXCAY42C
Brand
Schneider Electric
Product Range
Modicon Premium
Control Axes
4
Cycle Time
8 ms to 10 s
Weight
0.88 kg
Installation Guidelines
Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the backplane connector and secured with the integrated locking mechanism.
Use shielded cables for all motion control I/O to minimize electromagnetic interference (EMI).
Route signal cables away from high-voltage power lines and motor drive cabling.
Ensure adequate ventilation within the control cabinet to maintain operating temperatures within specified limits.
Handle with standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.
FAQ
Is the TSXCAY42C still in production?
This module is classified as a phase-out product. It remains a reliable solution for maintenance and expansion of existing Modicon Premium installations, but users should consult current lifecycle status for long-term project planning.
What system is this module compatible with?
The TSXCAY42C is specifically designed for the Schneider Electric Modicon Premium series PLC platform.
