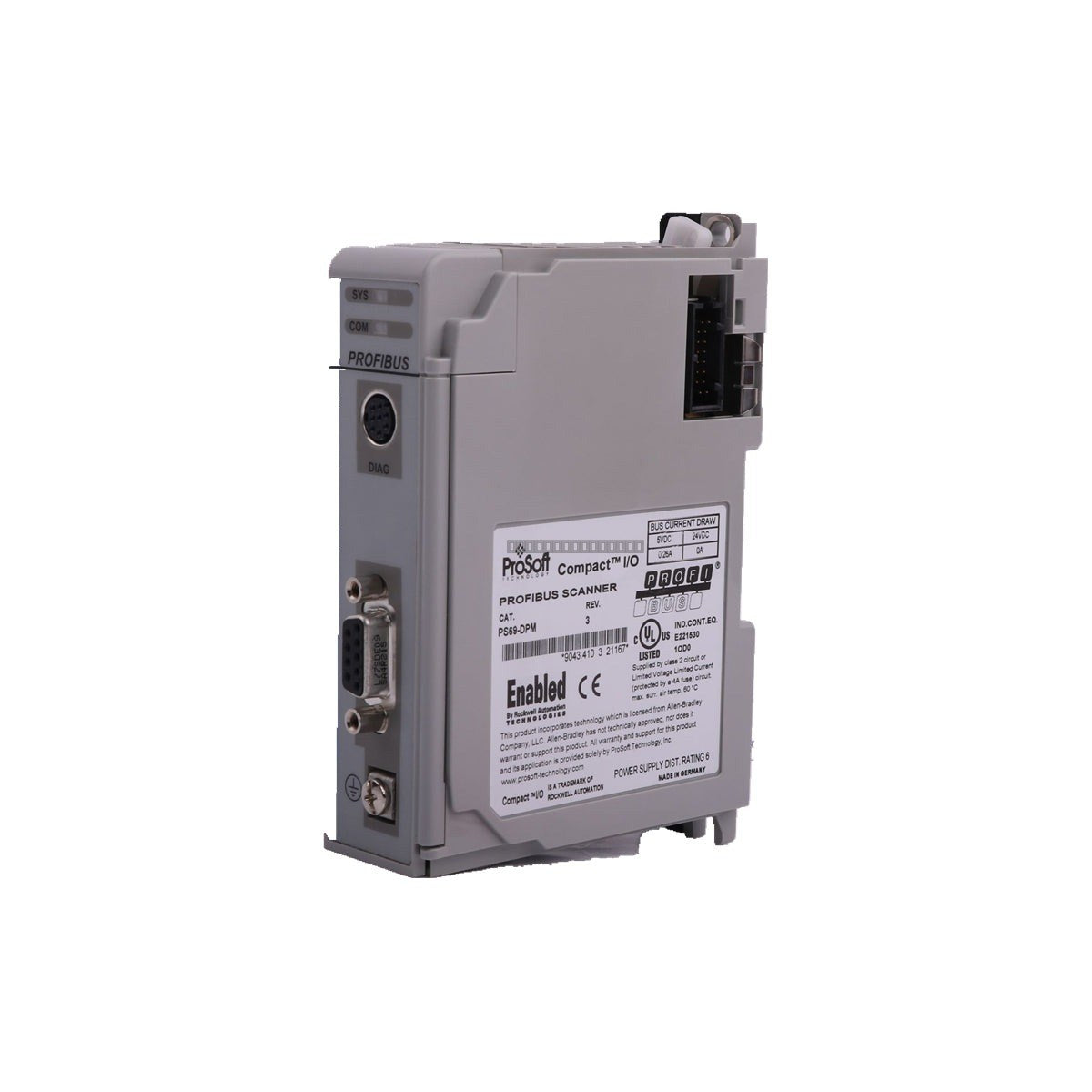

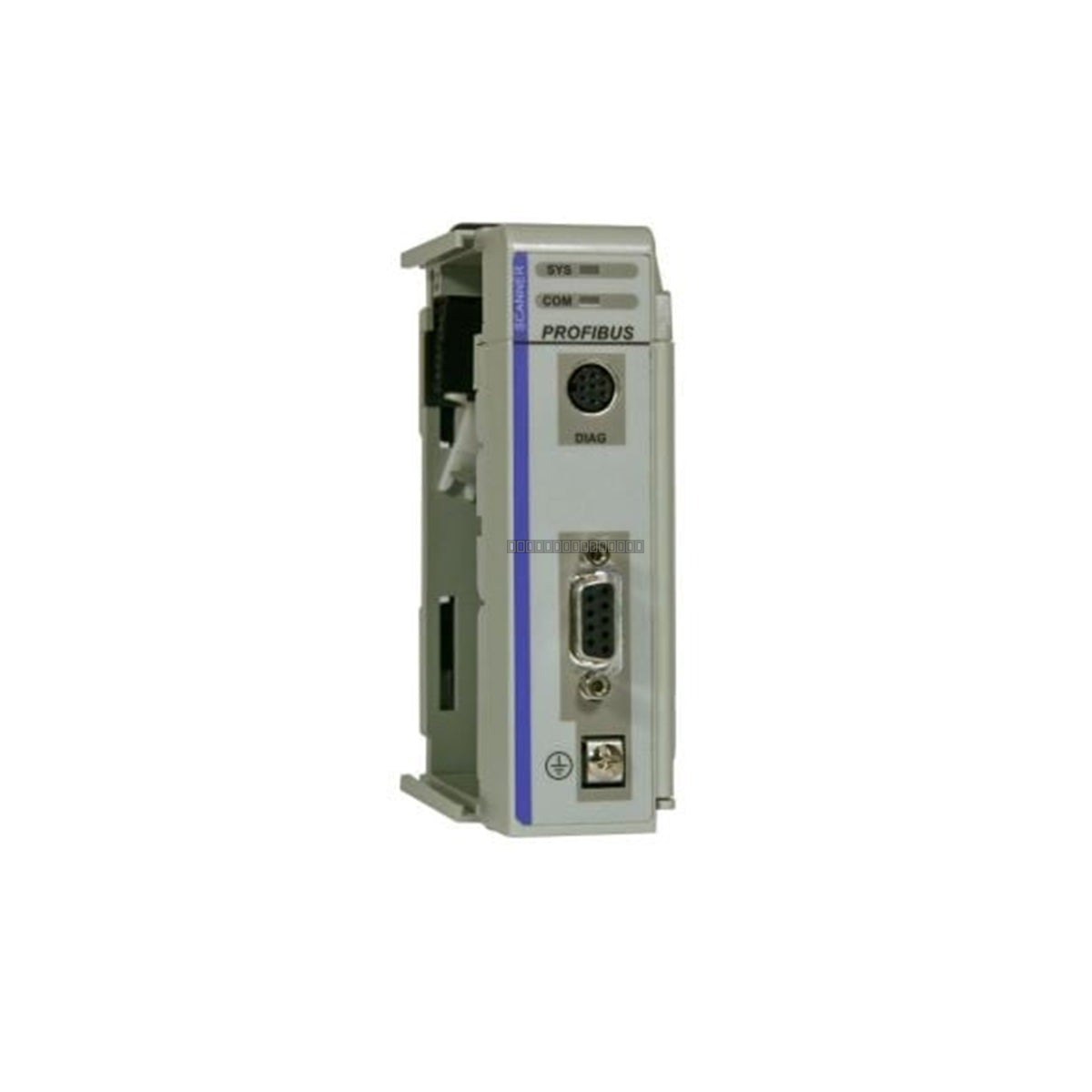

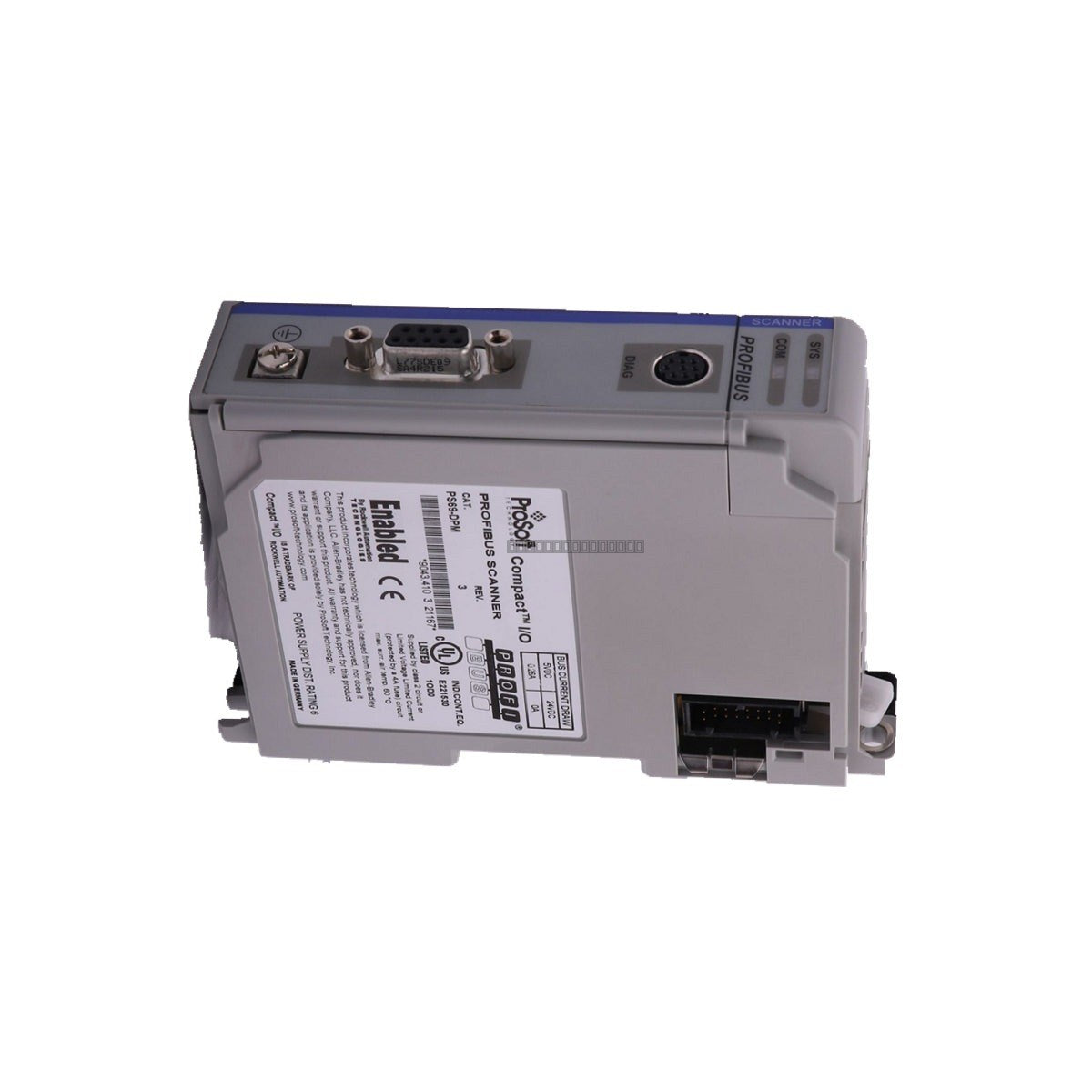

The ProSoft PS69-DPM is a high-performance communication module designed to function as a PROFIBUS DPV1 Master. This module is engineered for seamless integration with Rockwell Automation CompactLogix platforms, enabling efficient data exchange between the PLC and PROFIBUS-enabled field devices. It serves as a bridge for complex automation architectures requiring reliable fieldbus communication.
Features
Compatible with Rockwell Automation CompactLogix systems.
Supports up to 125 PROFIBUS slaves.
Handles up to 244 bytes of I/O data per slave.
Supports DPV1 acyclic communication for advanced device diagnostics and configuration.
Provides up to 480 bytes of output data and 408 bytes of input data.
Includes 88 bytes of dedicated status data for system monitoring.
Applications
The PS69-DPM is typically utilized in industrial automation environments where CompactLogix controllers must interface with third-party drives, sensors, or remote I/O stations operating on the PROFIBUS network. It is widely used in manufacturing, process control, and material handling applications.
Technical Specifications
Product Model
PS69-DPM
Communication Protocol
PROFIBUS DPV1 Master
Max. Slaves
125
Max. Input Data
408 Bytes
Max. Output Data
480 Bytes
Max. I/O per Slave
244 Bytes
Status Data
88 Bytes
Manufacturer
ProSoft
Installation Guidelines
Ensure the CompactLogix backplane is powered down before installing or removing the module.
Verify that the module is firmly seated in the chassis slot to ensure proper electrical contact.
Use shielded PROFIBUS-rated cable for all field connections to minimize EMI interference.
Maintain proper grounding practices for the control cabinet to protect against electrical noise.
Configure the module parameters via the appropriate Rockwell Automation software environment before commissioning.
Handle with care using ESD-safe procedures to prevent damage to internal circuitry.
FAQ
What is the primary function of the PS69-DPM?
The PS69-DPM acts as a PROFIBUS DPV1 Master, allowing a CompactLogix PLC to communicate with and control up to 125 PROFIBUS slave devices.
Is this module compatible with all CompactLogix controllers?
The PS69-DPM is designed for the CompactLogix platform; however, users should verify specific firmware and backplane compatibility requirements in the official ProSoft user manual for their specific controller revision.
