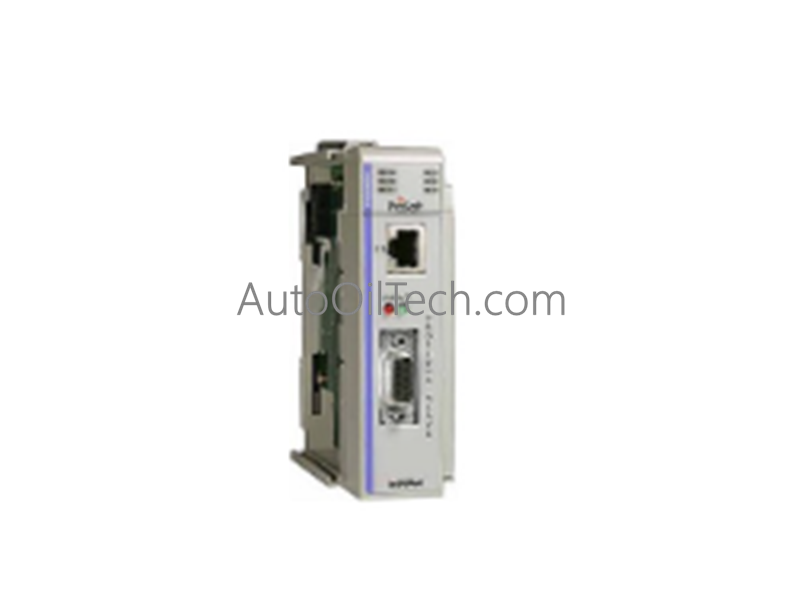

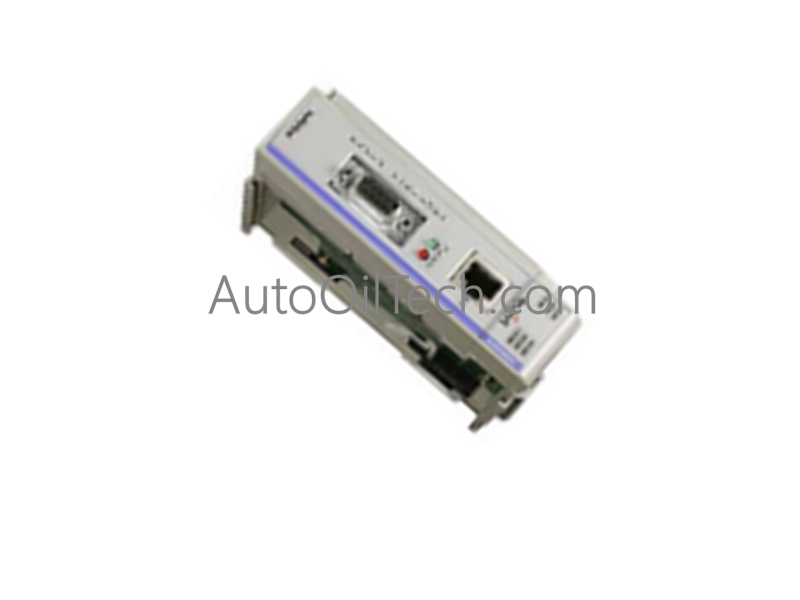

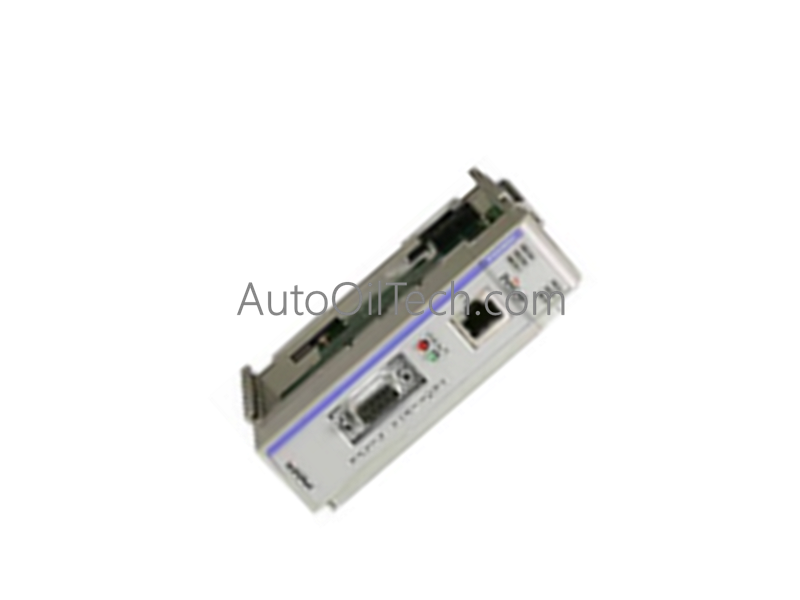

ProSoft MVI69-PDPS Profibus DP Slave Communication Module

Configured for Profibus DP slave interfacing in CompactLogix control platforms, the ProSoft MVI69-PDPS (MVI69-PDPS Communication Module) provides direct physical/electrical execution of protocol conversion and data exchange.

Suffix Breakdown & Model Matrix

The MVI69-PDPS is a singular hardware revision designed for backplane integration. The "MVI69" designation identifies the CompactLogix form factor series, while the "PDPS" suffix denotes the specific Profibus DP Slave communication functionality.

Hardware Specifications

Industrial Network and Communication Characteristics

• Intrinsic safety (Ex i) barriers: While the module itself is intended for non-hazardous control cabinet deployment, all field-side Profibus DP connections should be evaluated for appropriate surge voltage protection limits when routed through industrial environments with high electromagnetic interference.
• DIN-rail mounting stability: The module chassis integrates directly into the CompactLogix backplane, ensuring mechanical stability that maintains consistent electrical contact during vibration-intensive industrial operation.
• Surge voltage protection limits: Internal logic includes protection against transient electrical noise typically found on industrial backplanes, ensuring that the 400-register internal database remains uncorrupted during high-speed data transfers.
• Protocol conversion latencies: The MVI69-PDPS operates with configurable baud rates from 9.6 kbps to 12 Mbps. The internal architecture minimizes protocol conversion latency between the Profibus DP fieldbus and the CompactLogix backplane, permitting deterministic update times for field devices.

Frequently Asked Questions

Q: Does the module support hot-swapping in the CompactLogix rack?

A: No, the MVI69-PDPS does not support hot-swapping. Ensure the system power is removed before inserting or extracting the module from the backplane to prevent electrical damage to the module or the backplane communication bus.

Q: How is the internal database accessed by the processor?

A: The module maintains an internal database of 400 registers. Data is exchanged between the CompactLogix controller and the module through the backplane using read/write commands configured in the ladder logic program.

Field Installation Guidelines

• Mounting: Slide the module onto the CompactLogix backplane until the tongue-and-groove connectors are fully engaged and the module is flush against the adjacent controller or power supply.
• Grounding: Ensure the rack assembly is securely bonded to the cabinet earth bus. A robust, low-impedance connection is mandatory to provide a stable reference for the internal communication shielding and to facilitate the suppression of common-mode noise.
• Wiring: Connect the Profibus DP network to the designated interface port using shielded, twisted-pair cabling. Maintain a minimum separation of 150 mm from high-voltage AC power lines to prevent induced noise on the data bus, which could result in packet loss or baud rate instability at higher transmission speeds.
