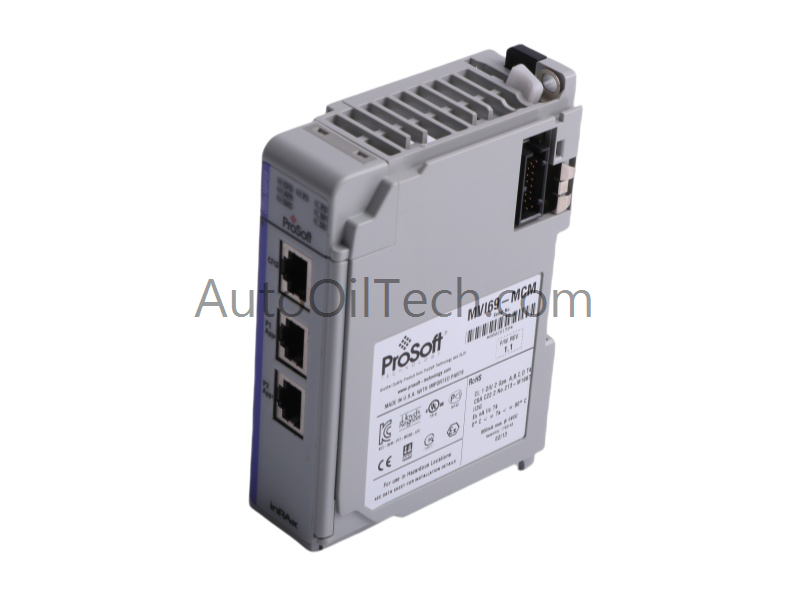

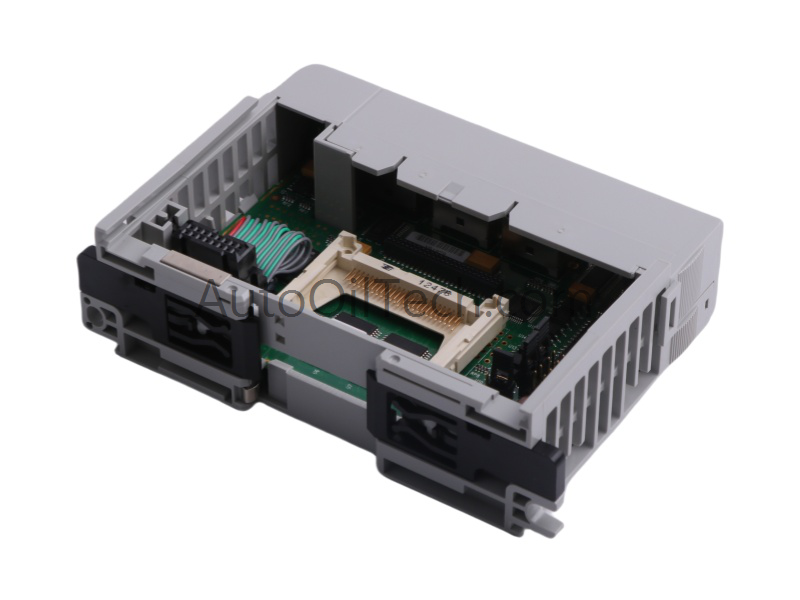

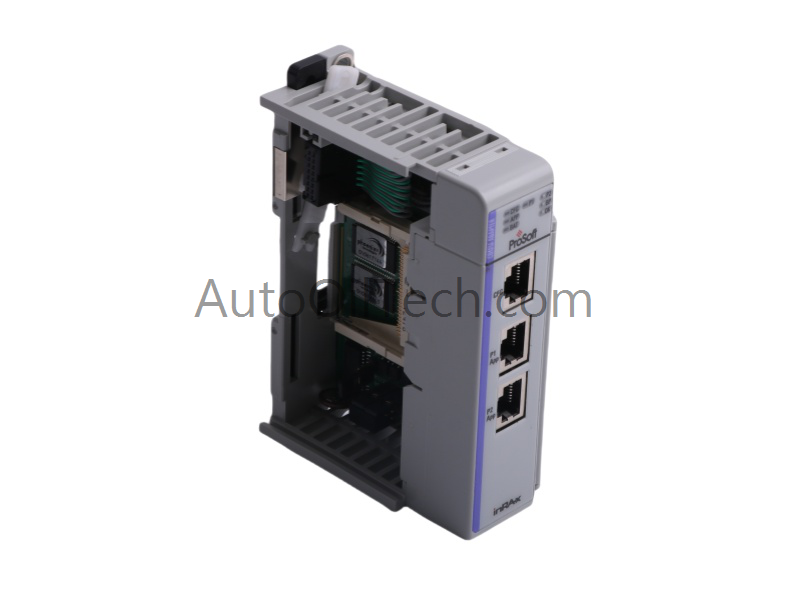

The ProSoft MVI69-MCM Modbus Master/Slave Communication Module enables seamless integration of Modbus RTU and ASCII devices into CompactLogix and MicroLogix PLC systems. Designed for industrial automation upgrades, it occupies a single slot and provides dual serial ports for flexible network connectivity.
Technical Specifications
Parameter
Specification
Model Number
MVI69-MCM
Manufacturer
ProSoft
Product Series
ControlLogix
Module Type
Modbus Master/Slave Communication
System Compatibility
CompactLogix / MicroLogix
Protocols Supported
Modbus RTU / Modbus ASCII
Communication Ports
2 × RS-232/RS-485
Baud Rate
Up to 115.2kbps
User Memory
32KB
Configuration Software
RSLogix 5000 / RSLogix 500
Diagnostics
Terminal emulator via Ymodem
Power Requirement
800mA
PC Requirements
Pentium III 733MHz / 256MB RAM
OS Compatibility
Windows XP / 2000 / Server 2003
Dimensions
3.8 × 8.6 × 13 cm
Weight
0.14 kg
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
Minimum Order
1 unit
Country of Origin
USA
Lifecycle Status
Active
Key Features
Dual RS-232/RS-485 ports for Modbus RTU/ASCII communication
Supports both Master and Slave modes for flexible integration
32KB memory stores configuration and mapping tables
Baud rate up to 115.2kbps for fast data exchange
Compatible with legacy Windows systems and industrial IT setups
Compact 3.8×8.6×13 cm form factor fits CompactLogix/MicroLogix chassis
Terminal-based firmware updates via Ymodem protocol
