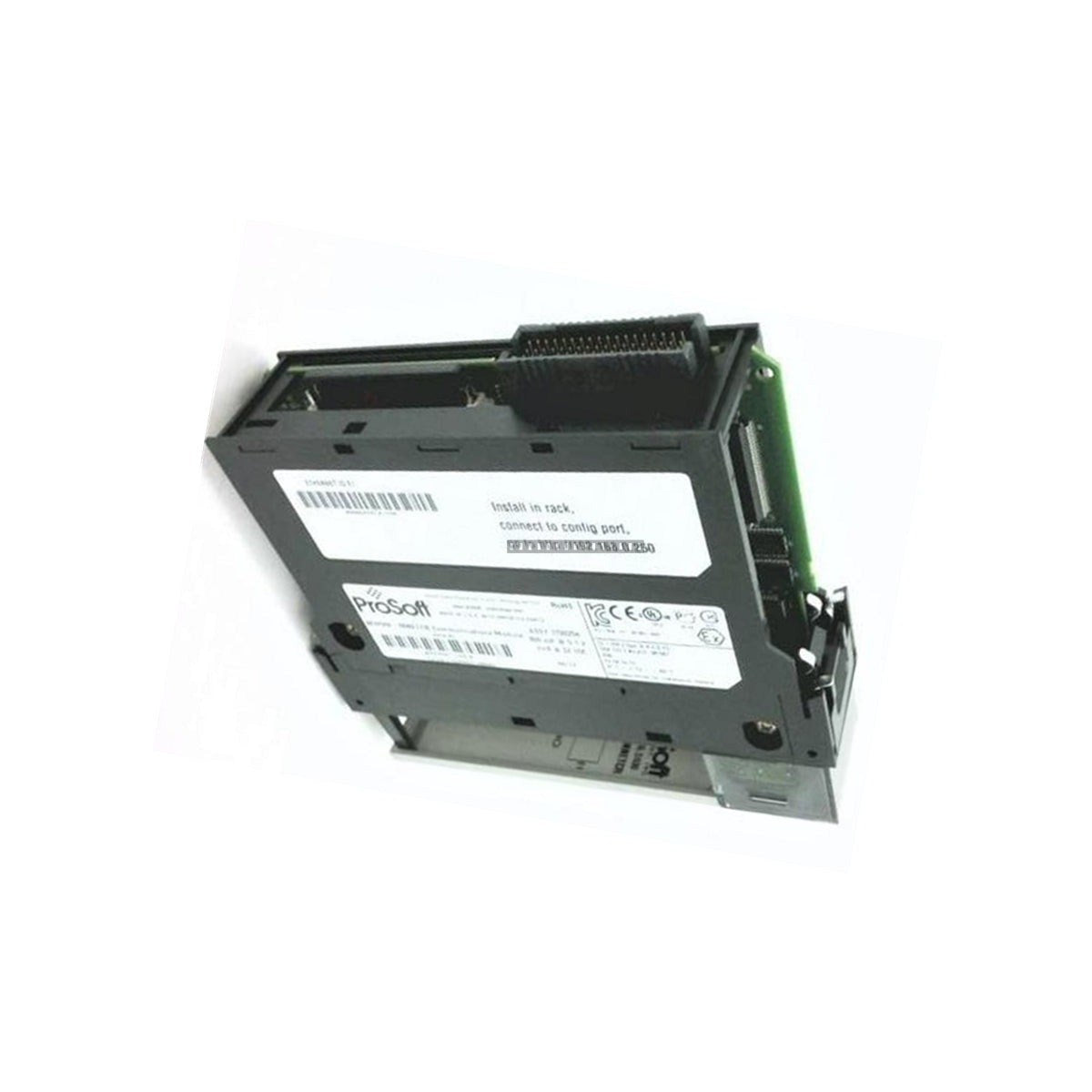

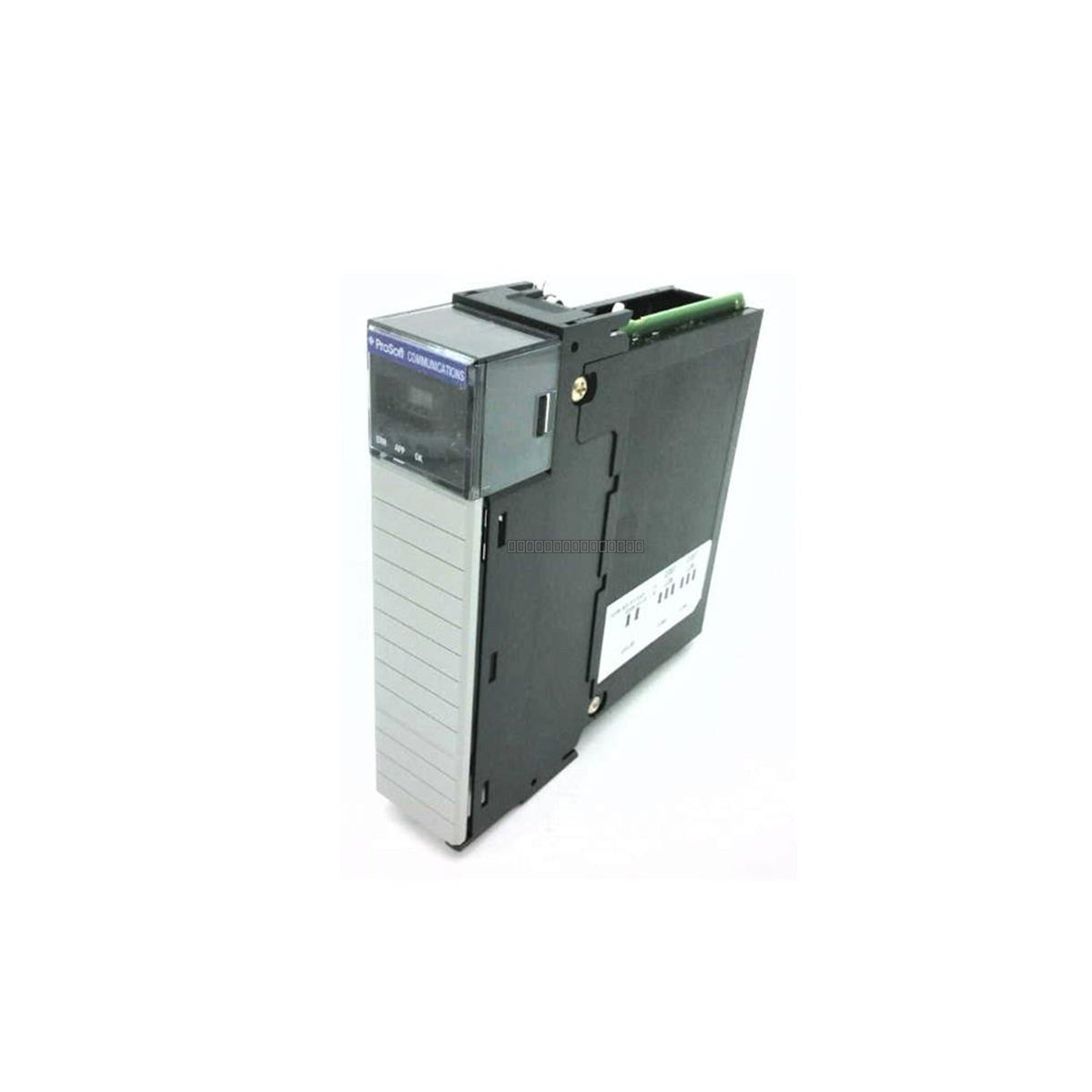

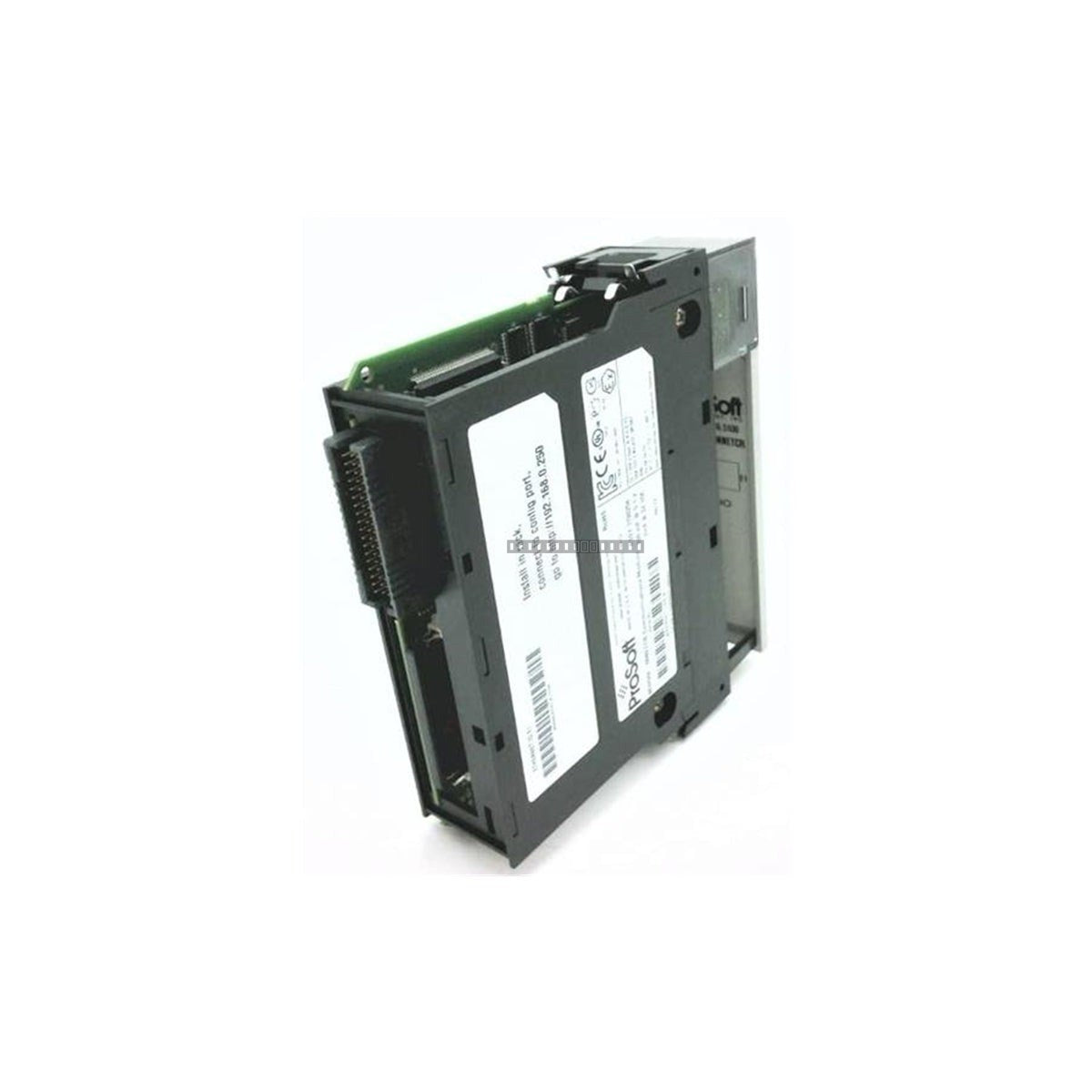

ProSoft MVI56E-MNETCR ControlLogix Modbus TCP/IP Enhanced Communications Module

Description

The ProSoft MVI56E-MNETCR is a high-performance Modbus TCP/IP Enhanced Communications Module designed for seamless integration with the Rockwell Automation ControlLogix platform. This module enables a ControlLogix processor to interface with up to 30 simultaneous client connections and 20 server connections over an Ethernet network. The 'CR' designation signifies a reduced data block version, specifically optimized for high-speed I/O data exchange. It is a critical component for bridging high-level controllers with field devices such as power meters, variable frequency drives, and remote I/O in power generation, water treatment, and large-scale manufacturing environments.

Features

• Supports 30 Client and 20 Server connections for robust Modbus TCP/IP communication.
• Optimized 100-word reduced data block interface to minimize backplane traffic.
• Integrated web server for remote configuration, module monitoring, and diagnostics.
• Native support for Studio 5000 Add-On Instructions (AOI) for rapid deployment.
• 10/100 Mbps RJ45 Ethernet port for high-speed network connectivity.
• Compatible with standard ControlLogix chassis backplane power.

Applications

This module is widely used in industrial automation for connecting ControlLogix systems to third-party Modbus TCP/IP devices. Common applications include data acquisition from power monitoring equipment, integration of variable frequency drives (VFDs), and interfacing with remote I/O stations in SCADA-managed architectures.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module.
• Seat the module firmly into the designated slot in the ControlLogix rack and secure the top and bottom retaining screws.
• Use shielded twisted-pair Ethernet cabling to minimize EMI interference in industrial environments.
• Maintain proper ventilation within the cabinet to ensure the module operates within the 0 to 60 deg C temperature range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Does this module require special software for configuration?

The MVI56E-MNETCR can be configured via its integrated web server or using the ProSoft Configuration Builder (PCB) software. It also supports Add-On Instructions (AOI) within the Studio 5000 environment for simplified integration.

What does the CR suffix indicate?

The 'CR' suffix indicates that the module uses a reduced data block interface (100 words), which is specifically optimized for high-speed I/O data exchange and reduced backplane loading.
