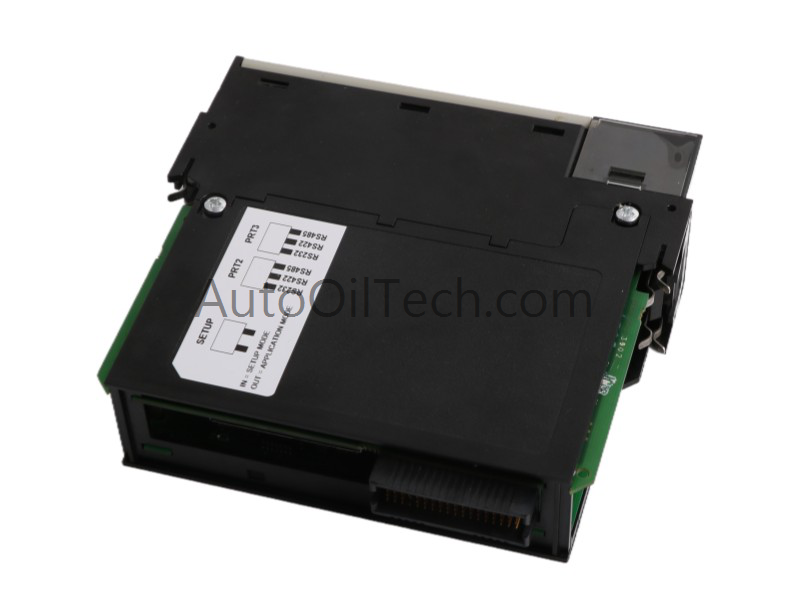

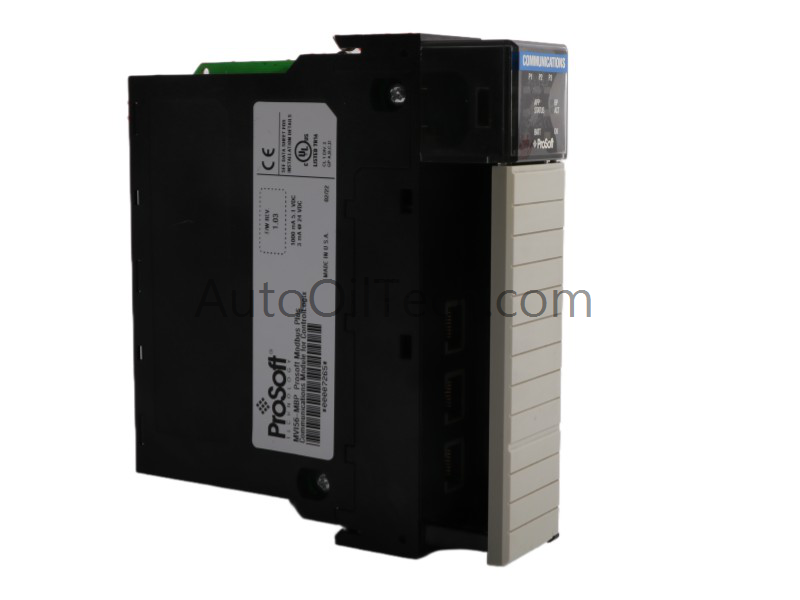

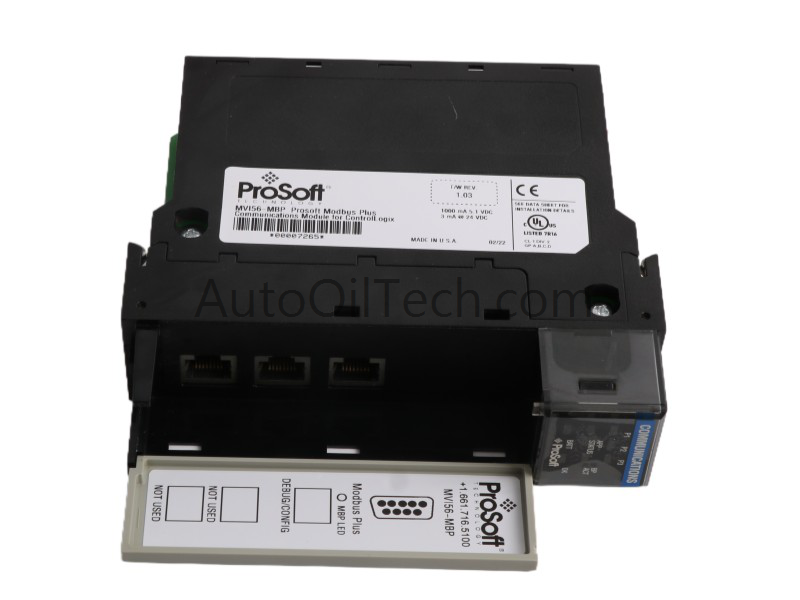

The Prosoft MVI56-MBP Communication Module is a specialized gateway designed to connect Allen-Bradley ControlLogix PLCs with devices using the Modbus Plus protocol. Engineered for seamless integration, it enables reliable data exchange across multi-vendor industrial networks, supporting both master and slave modes for flexible communication with drives, relays, and power monitors.
Technical Specifications
Model Number:MVI56-MBP
Manufacturer: Prosoft
Product Type: Communication Module
Condition: Brand New
System Compatibility: ControlLogix / PLC
Weight: 0.22 kg
Dimensions: 3.5 × 14 × 14.5 cm
HS Code: 8537101190
Origin: USA
Minimum Order Quantity (MOQ): 1
Lead Time: In Stock
Lifecycle Status: Active (still supported)
Backplane Current Load: 800 mA at 5V DC
Baud Rate: 57,600
Register Memory: 4000-word
Communication Service: Ethernet router
Functional Overview
The MVI56-MBP Communication Module provides asynchronous data transfer between the ControlLogix backplane and Modbus Plus networks. Its dual-port design allows integration with multiple devices, while the built-in Lithium Vanadium battery backs up CMOS data and the real-time clock for up to 21 days without external power.
Key features include:
Gateway between ControlLogix PLCs and Modbus Plus devices
Supports both master and slave modes for flexible integration
4000-word register memory for efficient data handling
Built-in Lithium Vanadium battery for data and clock backup
Supports up to 200 master commands for complex communication tasks
Single-slot installation in ControlLogix racks (local or remote)
Rugged design for reliable operation in industrial environments
Application Scenarios
Multi-vendor automation environments requiring ControlLogix–Modbus Plus integration
Oil & gas facilities with legacy Modicon processors
Power generation systems needing robust communication gateways
Manufacturing plants requiring reliable data exchange across diverse devices
FAQ
Q: Is the MVI56-MBP still active? A: Yes, this module remains active and supported within Prosoft’s product line.
Q: What is its primary function? A: It acts as a gateway between ControlLogix PLCs and Modbus Plus devices, supporting both master and slave modes.
Q: Which industries typically use this module? A: Oil & gas, power generation, chemical, petrochemical, and manufacturing industries.
