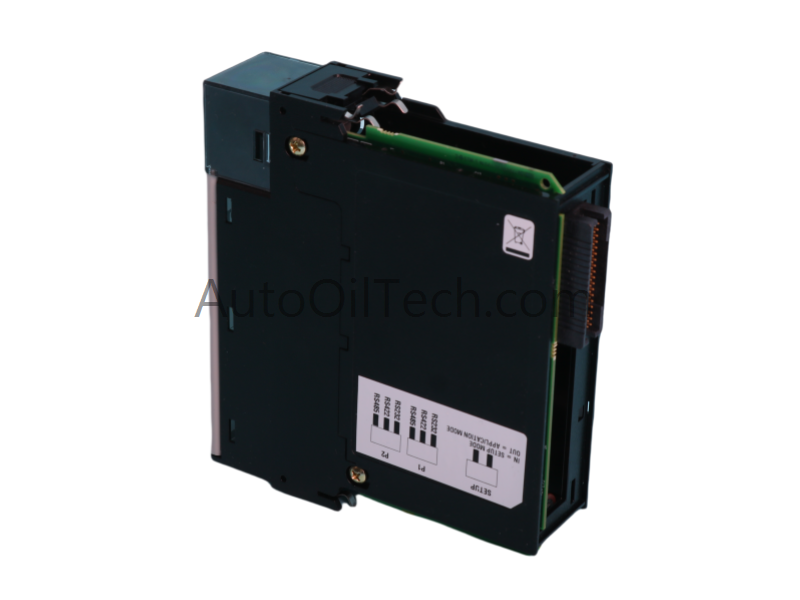

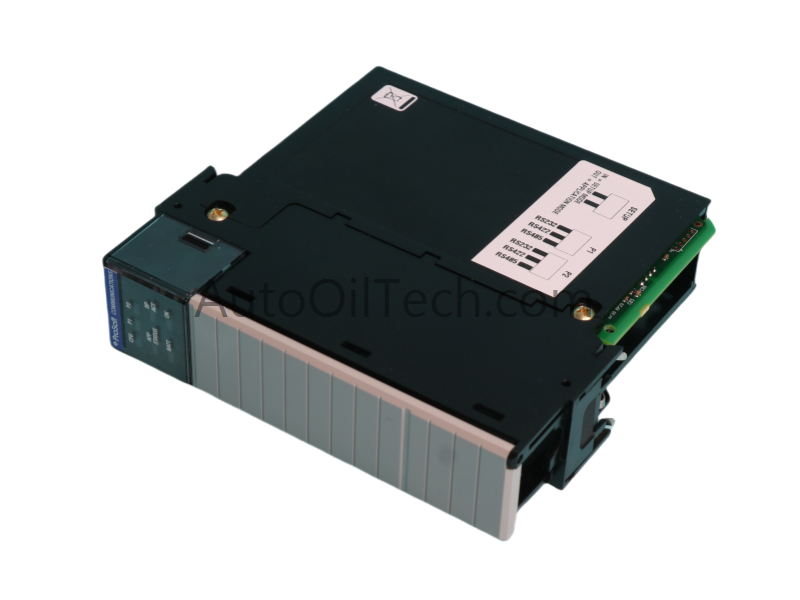

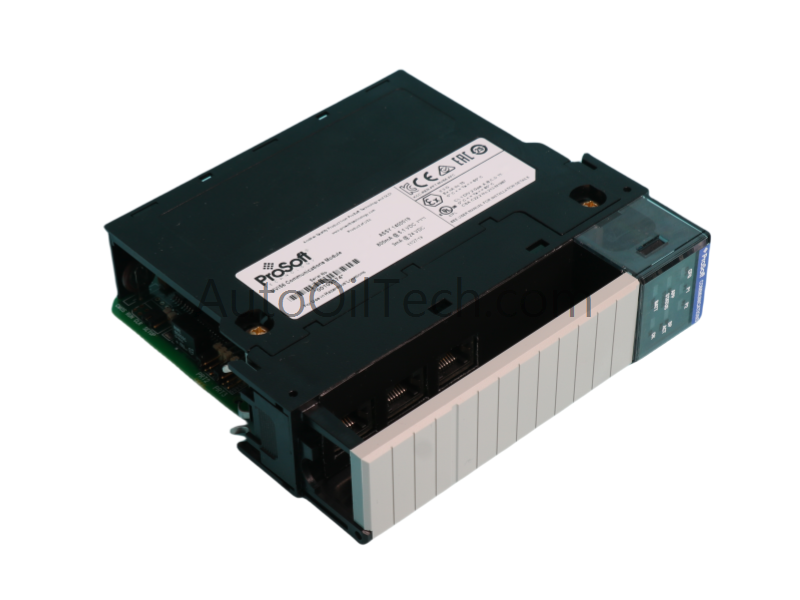

The ProSoft MVI56-DFCM PLC Module enables seamless integration ofModbus RTU and ASCII devices into Allen-Bradley ControlLogix systems. Supporting up to 32 Modbus nodes, each configurable as Master or Slave, it offers flexible communication across diverse industrial networks.
Technical Specifications
Parameter
Specification
Model Number
MVI56-DFCM
Manufacturer
ProSoft
Product Series
ControlLogix
Module Type
PLC Communication Module
System Compatibility
PLC / ControlLogix
Protocols Supported
Modbus RTU / Modbus ASCII
Connections Supported
Up to 32 Modbus devices
Communication Modes
Master and Slave
Configuration
RSLogix 5000
Diagnostics
Network health monitoring tools
Latency
Minimal, optimized for real-time data
Hot Swap Support
Yes
Dimensions
3.5 × 14 × 14.5 cm
Weight
0.45 kg
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
Minimum Order
1 unit
Country of Origin
USA
Lifecycle Status
Active
Key Features
Supports 32 Modbus RTU/ASCII devices with Master/Slave flexibility
Direct memory mapping into ControlLogix processors for fast data access
RSLogix 5000 configuration simplifies setup and integration
Built-in diagnostics enhance network visibility and fault resolution
Compact 3.5×14×14.5 cm design fits standard ControlLogix chassis
Robust error handling ensures reliable performance in harsh environments
Applications & Compatibility
The ProSoft MVI56-DFCM is ideal for industrial sectors requiring Modbus RTU/ASCII connectivity within ControlLogix environments. It supports applications in oil and gas, water treatment, power generation, and manufacturing.
