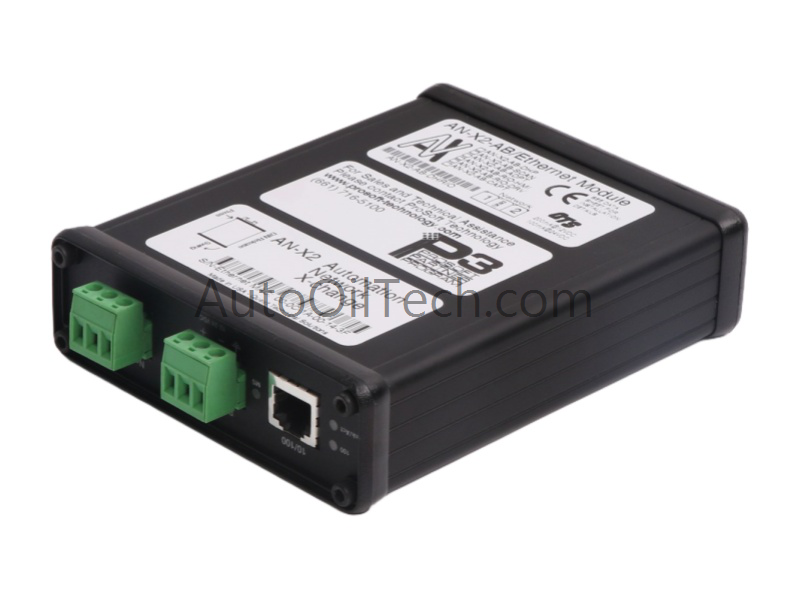

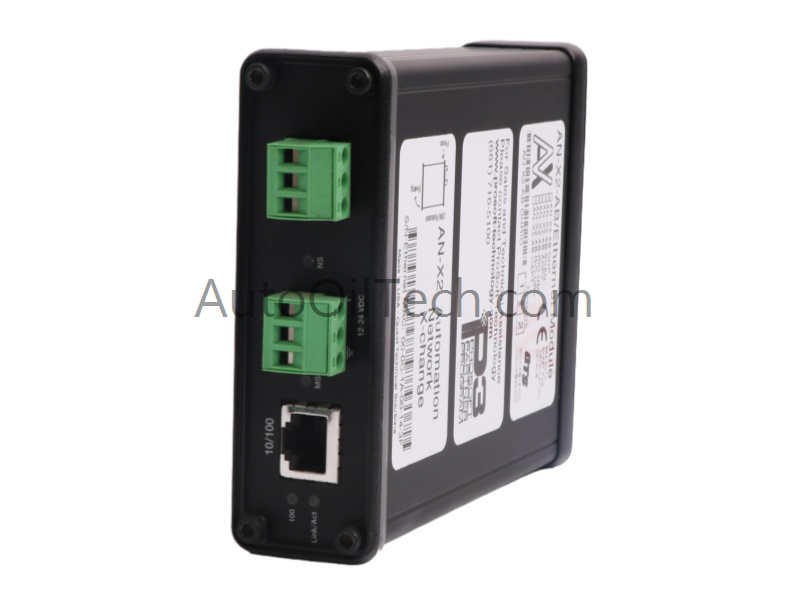

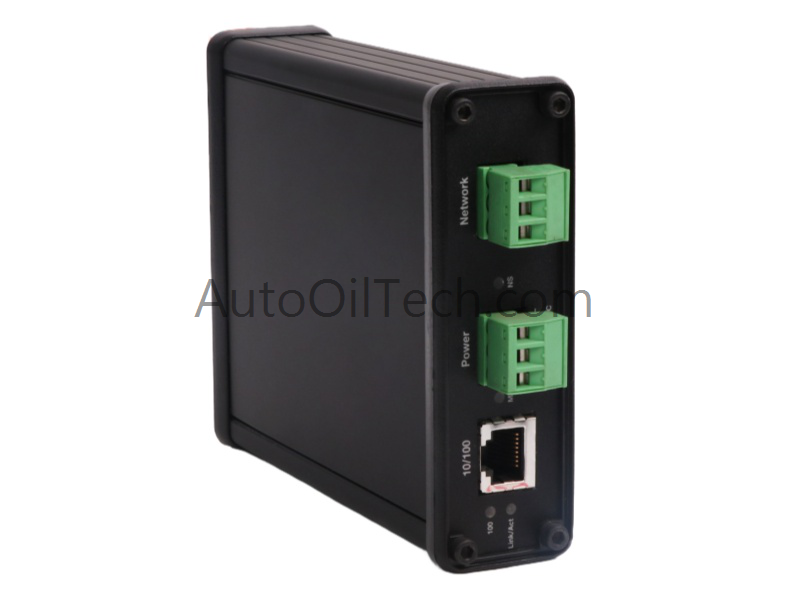

Prosoft AN-X2-AB-DHRIO Remote I/O to EIP Drives

Product Description

The Prosoft AN-X2-AB-DHRIO Remote I/O to EIP Drives is a specialized communication gateway module designed to connect modern Allen-Bradley ControlLogix/CompactLogix PLCs with legacy Data Highway Plus (DH+) or Remote I/O networks. This versatile solution bridges the gap between Ethernet/IP systems and older automation protocols, enabling seamless integration without costly equipment replacements.

Technical Specifications

• Model Number: AN-X2-AB-DHRIO

• Manufacturer: Prosoft

• Product Type: Remote I/O to EIP Drives Gateway

• Condition: Brand New

• System Compatibility: PLC / ControlLogix / CompactLogix

• Weight: 0.22 kg

• Dimensions: 3.5 × 14 × 14.5 cm

• HS Code: 8537101190

• Origin: USA

• Minimum Order Quantity (MOQ): 1

• Lead Time: In Stock

• Power Supply: 24V DC, ~100 mA consumption

• Baud Rate: Configurable from 57.6 to 230.4 kbaud

• Communication Interface: RJ45 Ethernet (10/100 Mbps), Phoenix connectors

• Lifecycle Status: Active (still supported)

Functional Overview

The AN-X2-AB-DHRIO gateway provides reliable data exchange across different network architectures, supporting plant modernization projects by extending the lifecycle of legacy equipment. Its built-in web server allows remote configuration, monitoring, and diagnostics via a standard browser, simplifying setup and reducing errors. LED indicators provide real-time feedback on network and operational status.

Key features include:

• Seamless connectivity between Ethernet/IP systems and legacy DH+/Remote I/O networks

• Built-in web server for remote configuration and diagnostics

• LED indicators for real-time network and system monitoring

• Compact design with desktop and DIN rail mounting options

• Cost-effective solution for plant modernization and migration projects

Application Scenarios

• Industrial plants modernizing legacy DH+ or Remote I/O networks

• Oil & gas facilities requiring integration of older equipment with Ethernet/IP systems

• Power generation and manufacturing industries focused on minimizing downtime

• Automation projects needing scalable and flexible communication gateways

FAQ

Q: Is the AN-X2-AB-DHRIO still active? A: Yes, this model remains active and supported within Prosoft’s product line.

Q: What is its primary function? A: It bridges legacy DH+/Remote I/O networks with modern Ethernet/IP systems for seamless integration.

Q: Which industries typically use this module? A: Oil & gas, power generation, manufacturing, and chemical industries.
