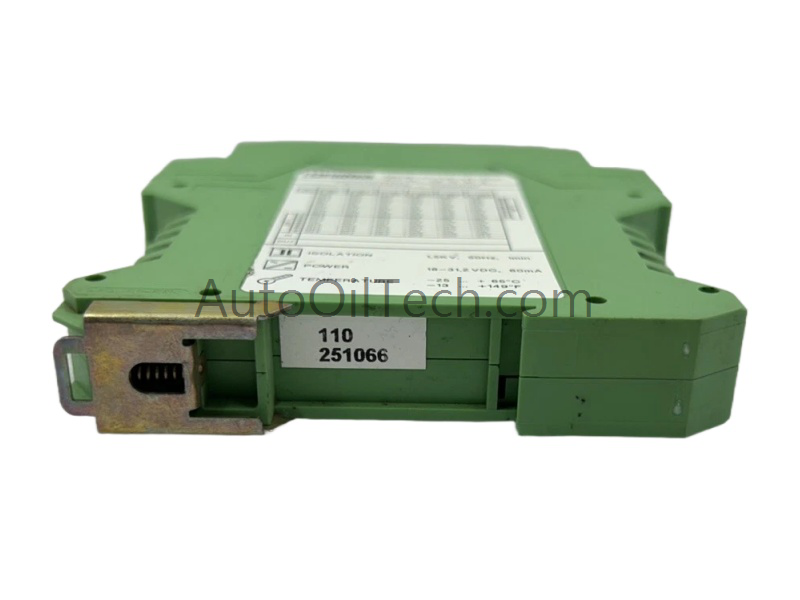

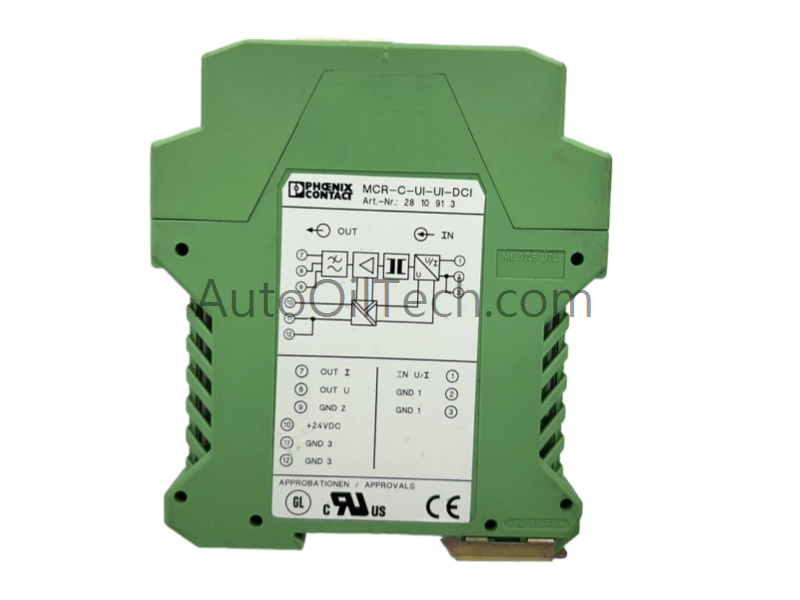

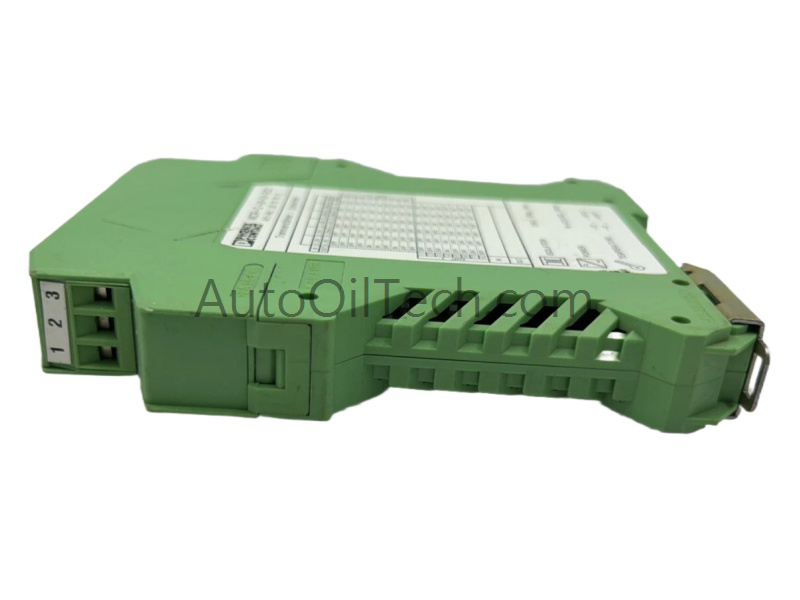

Phoenix Contact MCR-C-UI-UI-DCI 2810913 Signal Conditioning Module

Product Overview

The Phoenix Contact MCR-C-UI-UI-DCI (2810913) is a versatile 3-way signal conditioning module designed for electrical isolation, conversion, and reliable transmission of analog signals. Part of the MINI MCR Series, it ensures accurate decoupling between sensor circuits and processing circuits, preventing cross-coupling and interference.

Key Technical Specifications

• Model / Part Number: MCR-C-UI-UI-DCI (2810913)

• Manufacturer: Phoenix Contact

• Product Type: Signal Conditioning Module

• System Compatibility: PLC / automation systems

• Inputs/Outputs: Configurable; standard 0–10 V input/output signals

• Adjustment: Two sealed potentiometers for zero/span fine-tuning

• Reconfiguration: DIP switches allow >200 signal variations

• Transmission Method: Inductive isolation with downstream filter for interference reduction

• Power Indicator: Green LED for auxiliary supply status

• Mounting: EN 50 022 symmetrical DIN rail

• Connections: Pluggable screw terminals, clearly labeled

• Dimensions: 3.2 × 10.6 × 13 cm

• Weight: 0.32 kg

• Country of Origin: USA

• HS Code: 8537101190

• Minimum Order Quantity: 1 unit

• Condition: Brand New

• Availability: In stock

• Lifecycle Status: Active

• Communication: Ethernet diagnostics/configuration (not a router)

Functional Highlights

• Provides electrical isolation between input, output, and auxiliary supply.

• Prevents cross-coupling for accurate signal transmission.

• Configurable inputs/outputs with >200 variations via DIP switches.

• Zero/span adjustment for precise calibration.

• Compact DIN rail mounting for easy installation.

• LED power indicator for operational safety.

Applications

• PLC-based automation systems.

• Industrial process control requiring analog signal isolation.

• Sensor-to-controller signal conditioning.

• Environments requiring interference-free analog transmission.

FAQ

Q: What is the standard input/output configuration? A: 0–10 V signals, configurable via DIP switches.

Q: How many signal variations are possible? A: More than 200, thanks to flexible DIP switch settings.

Q: Is this product discontinued? A: No, it is active and available.

Q: How is it mounted? A: On EN 50 022 symmetrical DIN rails.
