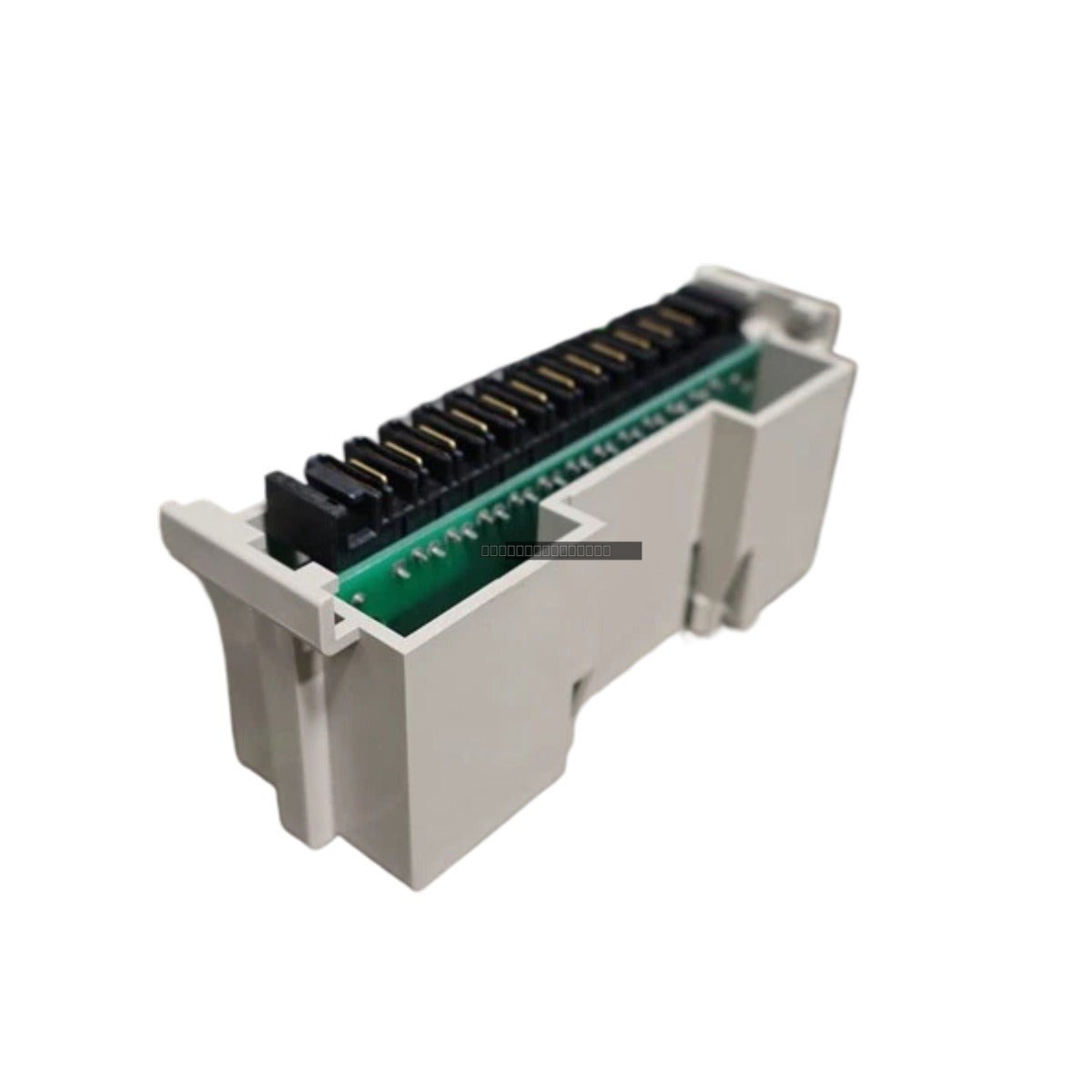

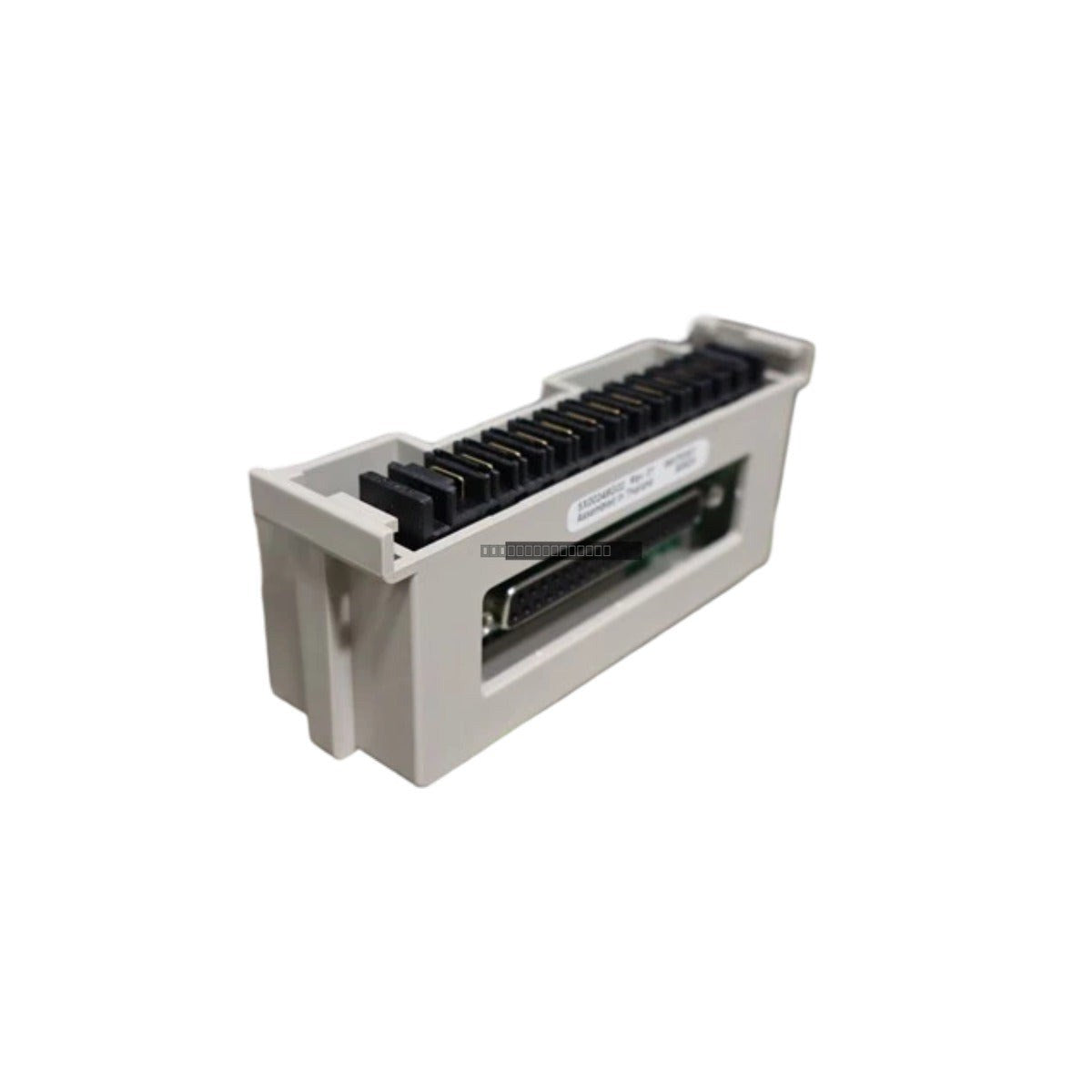

Emerson Ovation 5X00248G02 Analog Input Module

The Emerson Ovation 5X00248G02 is a specialized analog input module engineered for seamless integration within the Ovation distributed control system (DCS). This module acts as a critical signal interface, capturing data from various field instrumentation such as flow, pressure, and temperature sensors. By digitizing these analog signals with high precision, the 5X00248G02 enables reliable process monitoring across demanding industrial sectors, including power generation and chemical processing.

Features

• High-resolution 16-bit analog-to-digital conversion for accurate process data acquisition.
• Support for standard industrial signaling, including 4-20 mA and 1-5 V ranges.
• Integrated hardware filtering to minimize the impact of electromagnetic interference and common-mode noise.
• Advanced opto-isolation providing 1500 VDC protection between field-side signals and the internal backplane.
• Full compatibility with redundant I/O rack configurations to support high-availability control strategies.
• Deterministic data communication via the Ovation I/O bus for low-latency system performance.

Applications

This module is designed for deployment in large-scale industrial control environments requiring high-integrity signal processing. Typical use cases include thermal power plant monitoring, petrochemical refinery loop control, and continuous industrial process automation where fault detection and system uptime are critical.

Technical Specifications

Installation Guidelines

• Ensure the Ovation I/O chassis is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is properly seated in the designated chassis slot to ensure reliable backplane communication.
• Use shielded cabling for all field inputs to maintain signal integrity and reduce susceptibility to EMI.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal circuitry.
• Ensure adequate ventilation within the cabinet, maintaining ambient temperatures within the specified 0-60 degC range.

FAQ

What is the primary function of the 5X00248G02? The module serves as an analog input interface for the Emerson Ovation DCS, converting field analog signals into digital values for control and monitoring.

Does this module support redundant configurations? Yes, the 5X00248G02 is designed to be compatible with redundant I/O rack setups, allowing for seamless failover in critical applications.

What is the isolation rating of this module? The module provides 1500 VDC isolation between the field-side inputs and the backplane logic to safeguard system components.
