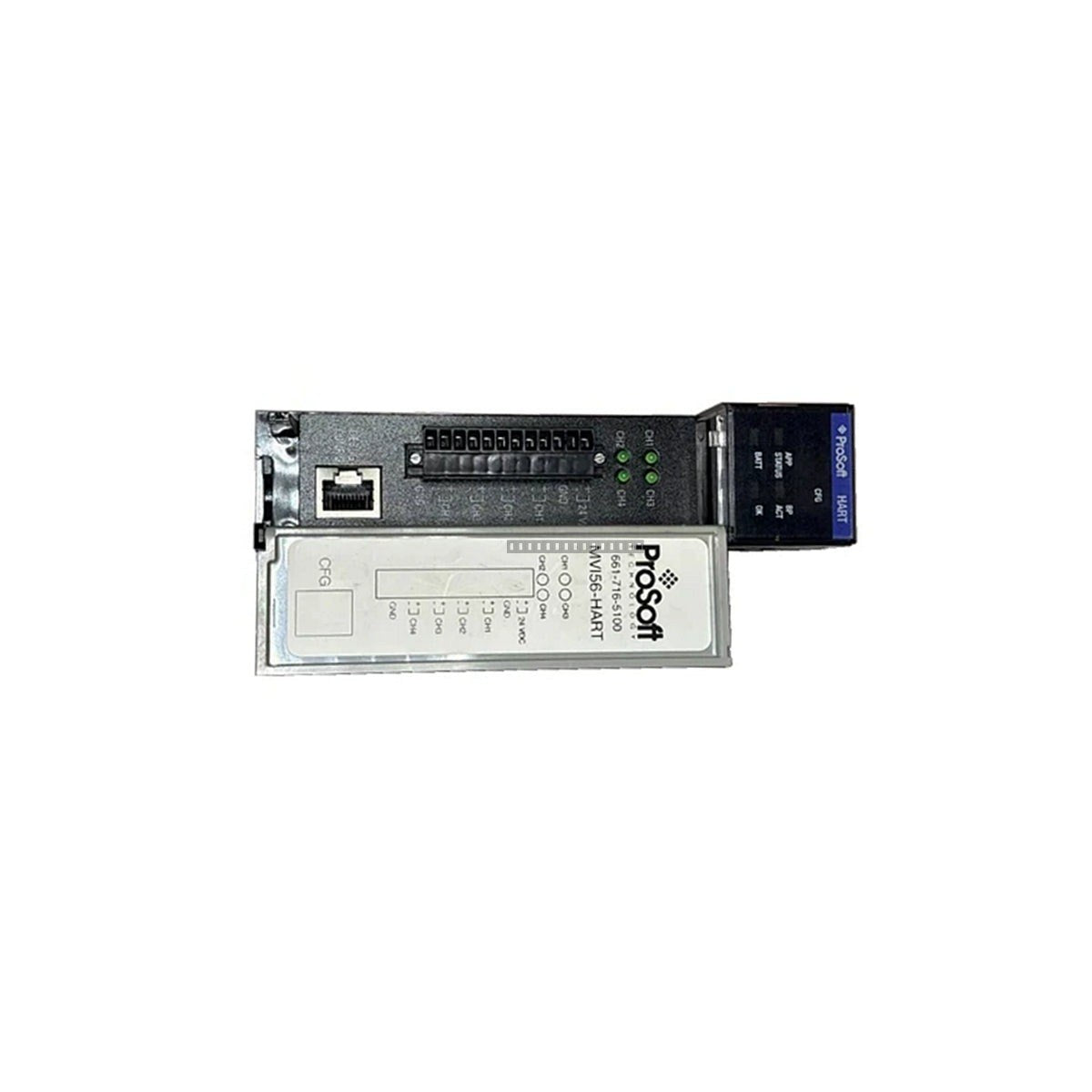

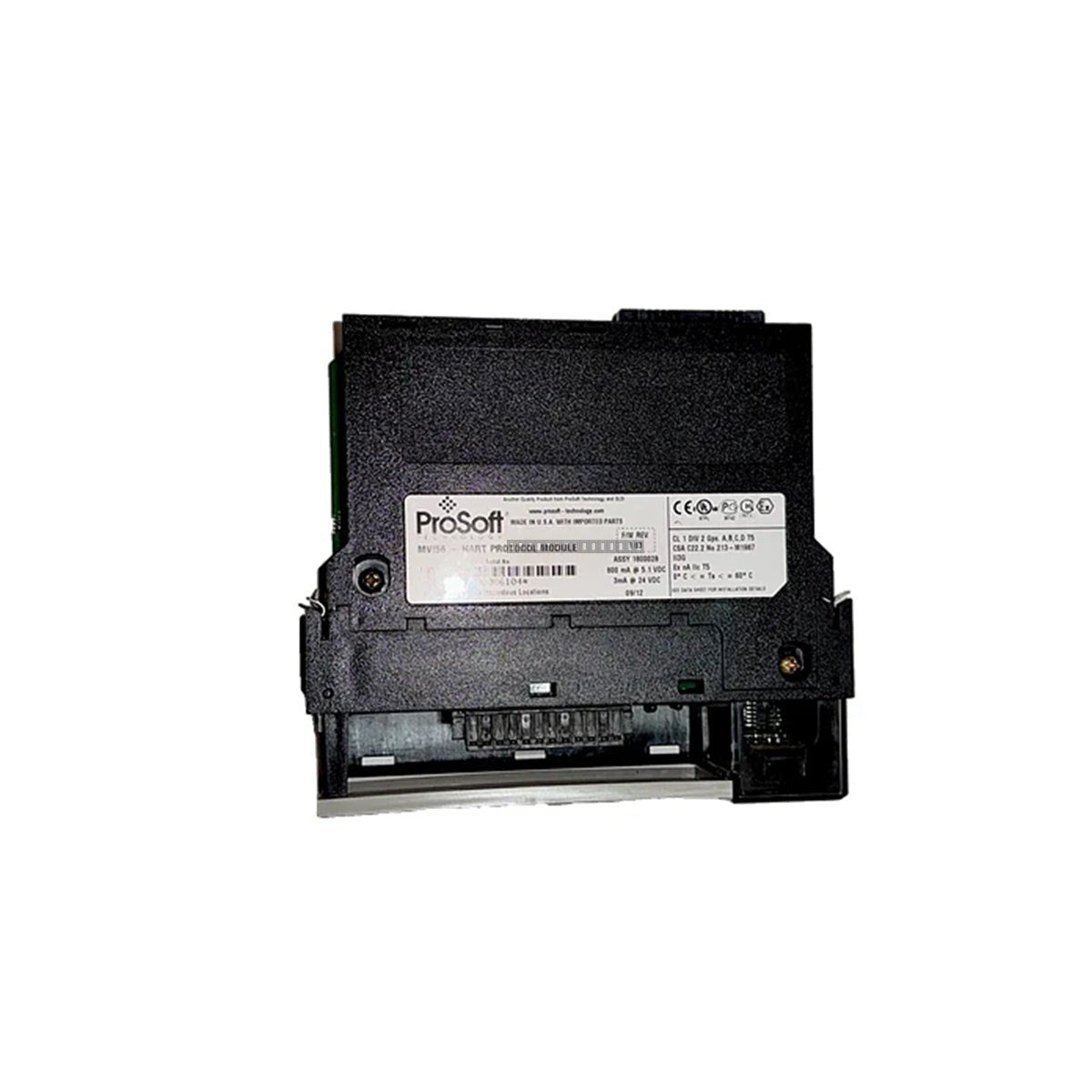

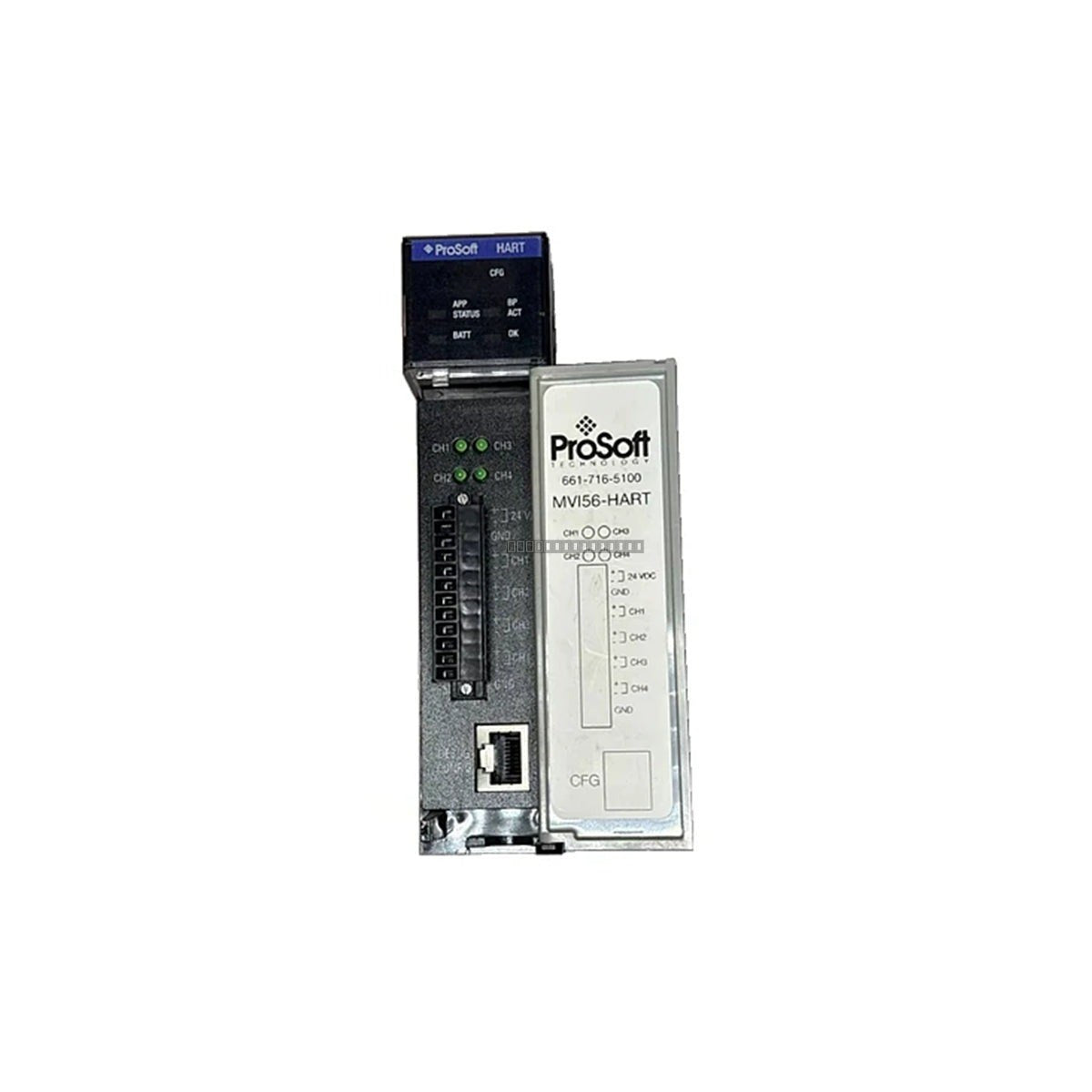

ProSoft MVI56-HART ControlLogix HART Master Module

Description

The ProSoft MVI56-HART is a 4-channel HART Master Multi-drop Network Interface Module designed for integration with the Rockwell Automation ControlLogix platform. This module facilitates bi-directional communication between ControlLogix processors and HART-compatible field instruments, providing essential access to secondary digital variables and device diagnostics. By enabling real-time asset management and predictive maintenance, the MVI56-HART helps reduce unplanned downtime and optimizes calibration cycles in demanding industrial process control applications.

Features

• Four independent HART channels supporting both point-to-point and multi-drop network topologies.
• FSK digital signal processing allows for simultaneous analog 4-20 mA monitoring and digital data extraction.
• Offloads protocol framing, timing, and error checking from the ControlLogix CPU to ensure efficient system performance.
• Integrated status LEDs for backplane activity, error status, and individual channel communication monitoring.
• Direct backplane compatibility with ControlLogix chassis for seamless integration.

Applications

The MVI56-HART is widely utilized in process-intensive industries including oil and gas refineries, chemical processing plants, and large-scale water treatment facilities where smart instrumentation diagnostics are required for operational efficiency.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis power is removed before inserting or removing the module.
• The module is designed for standard ControlLogix rack mounting; ensure the module is fully seated and the locking tab is engaged.
• Use appropriate shielded cabling for HART communication to minimize EMI interference.
• Maintain proper ventilation within the cabinet to ensure operating temperatures remain within the 0 to 60 deg C range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the MVI56-HART?

The MVI56-HART acts as a gateway between HART-enabled field devices and the ControlLogix controller, allowing the PLC to read digital process variables and diagnostic data from the instruments without interrupting the analog 4-20 mA signal.

Does this module require external power?

The module draws its power directly from the ControlLogix backplane (800 mA at 5.1 VDC). No external power supply is required for the module itself, though field instruments will require their own loop power.
