IS200TSVOH1BBB | General Electric | Servo Terminal Board

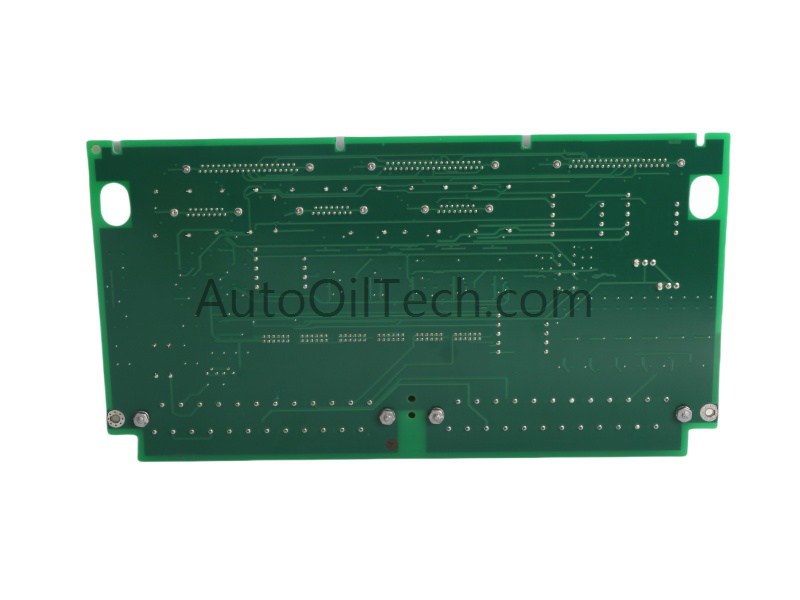

General Electric IS200TSVOH1BBB Mark VI Series Servo Terminal Board

Configured for servo valve execution in Mark VI platforms, the General Electric IS200TSVOH1BBB (IS200TSVOH Servo Terminal Board) provides direct physical/electrical execution.

Hardware Specifications

Backplane Bus Communication Velocity and System Architecture

The IS200TSVOH1BBB establishes interfaces with the VSVO I/O processor board using high-density molded cabling networks connected through the front J5 plug of the VSVO card and the corresponding J3/4 connectors located on the VME rack. This setup optimizes backplane bus communication velocity and transmission synchronization for electro-hydraulic servo parameters. In simplex mode, baseline commands route via the JR1 connector. For triple modular redundancy (TMR) architectures, parallel command paths are split across JR1, JS1, and JT1 connectors to execute hardware-level median signal voting, which prevents signal drift and dampens network latency during dynamic valve transitions.

Frequently Asked Questions

Q: What operational faults does the IS200TSVOH1BBB onboard circuitry actively detect?

A: The board monitors and flags anomalies including servo current limits exceeded, non-responsive servo valves, regulator feedback signal deviations outside predefined voltage thresholds, and configuration mismatches via failed onboard ID chips.

Q: How does the terminal board evaluate servo valve hardware integrity?

A: It performs continuous current loop tracking across the valve coils. If loop current exceeds hardcoded operating parameters or if structural feedback fails to track control outputs, a hardware interrupt is triggered.

Q: What is the purpose of the JD1 and JD2 plug connections?

A: Plugs JD1 and JD2 interface directly with external trip signals originating from the core protection modules, bypassing standard firmware processing layers to force immediate shutoff during emergency conditions.

Field Installation Guidelines

• LVDT and Valve Cabling: Field instrumentation lines for the linear variable differential transformers (LVDT) must use twisted-pair shielded cables. Terminate shields cleanly at the designated chassis grounding bus bar to eliminate electrical noise corruption across the 0.3532 to 4.054 V signal span.
• Redundant Plug Alignment: For TMR deployments, verify physical orientation and strict mapping of cables linking to connectors JR1, JS1, and JT1. Ensure all locking screws on the D-sub connectors are mechanically torqued down.
• Protection Module Integration: When routing external trip lines to plugs JD1 or JD2, isolate these safety-critical loops from high-voltage AC lines to mitigate inductive cross-talk that could cause false turbine trips.
• Environmental Controls: Ensure the installation cabinet maintains adequate convection or forced-air cooling. The surface-mount components are rated for -30 to 65 deg C, and blocking airflow can lead to thermal hot spots near the servo driver circuitry.
