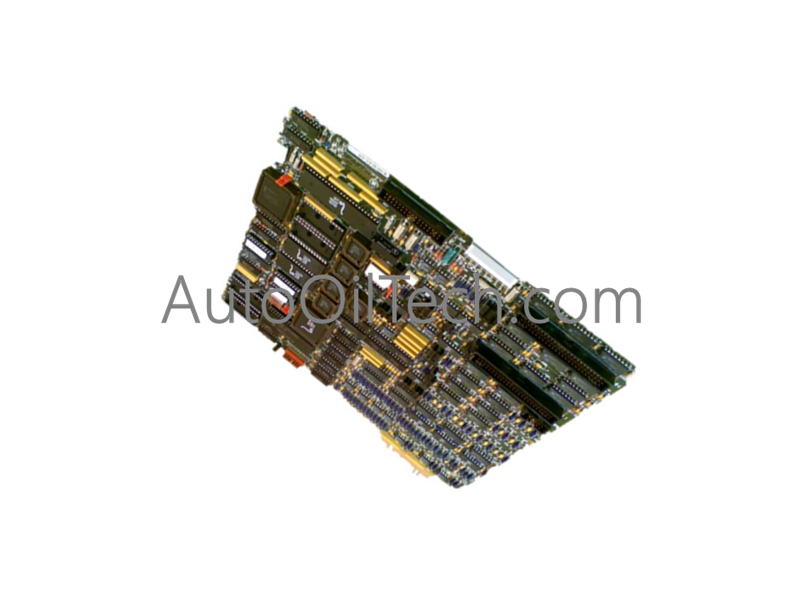

IS200AEPAH1BHC (IS215WEPAH2AB) GE Printed Circuit

The GE IS200AEPAH1BHC (IS215WEPAH2AB) Printed Circuit Board provides direct physical/electrical execution for turbine control signal processing and data communication within industrial automation networks.

Suffix Breakdown & Model Matrix

The complete module designation combines the primary assembly catalog number IS200AEPAH1BHC with the factory hardware revision identifier IS215WEPAH2AB, denoting the specific circuit layout and component population intended for GE turbine control systems. No arbitrary sub-modules exist for this printed circuit board assembly.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and Backplane Communication

The printed circuit board handles high-speed data throughput via a deterministic internal architecture supporting configurable software frame rates of 10 ms, 20 ms, and 40 ms. The integrated CAN Bus communication interface maintains a strict 1 Mbps data transfer rate to ensure synchronous execution across distributed turbine control nodes. Signal acquisition paths utilize 16 differential or single-ended input channels paired with a 12-bit analog-to-digital converter operating at a 200 kHz sampling rate, preserving data fidelity and preventing latency across the backplane bus interface.

Frequently Asked Questions

Q: Does the printed circuit board support hot-swappable installation within the rack?

A: No, replacement requires completely de-energizing the corresponding rack chassis power supplies to prevent electrical arcing and backplane bus fault propagation.

Q: How are firmware updates managed across the communication interface?

A: Firmware configuration updates are executed through dedicated system software tools via the controller network backbone while the target processor slot is placed in a non-active state.

Q: What is the primary function of the internal power conversion circuitry on this board?

A: The board steps down and regulates incoming power distribution rails to supply a stable 5 VDC operating voltage directly to internal logic components and sampling circuits.

Field Installation Guidelines

Insert the printed circuit board carefully along the designated chassis guide slots, ensuring smooth mechanical engagement with the backplane connector before applying manual pressure. Fasten the top and bottom panel securing screws firmly to establish proper chassis ground continuity and prevent loosening from heavy industrial vibration. Route any external signal or communication wiring through separate metallic conduits away from high-voltage alternating current power feeds to maintain electromagnetic compatibility.
