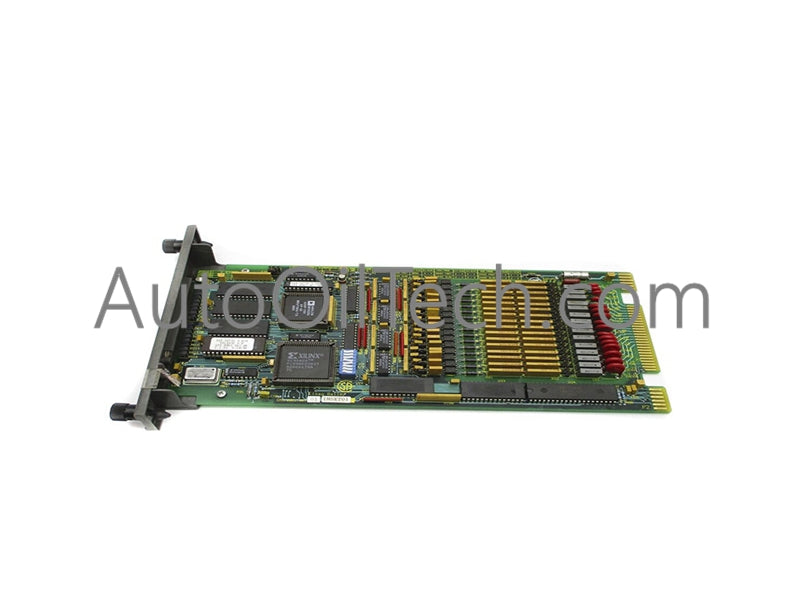

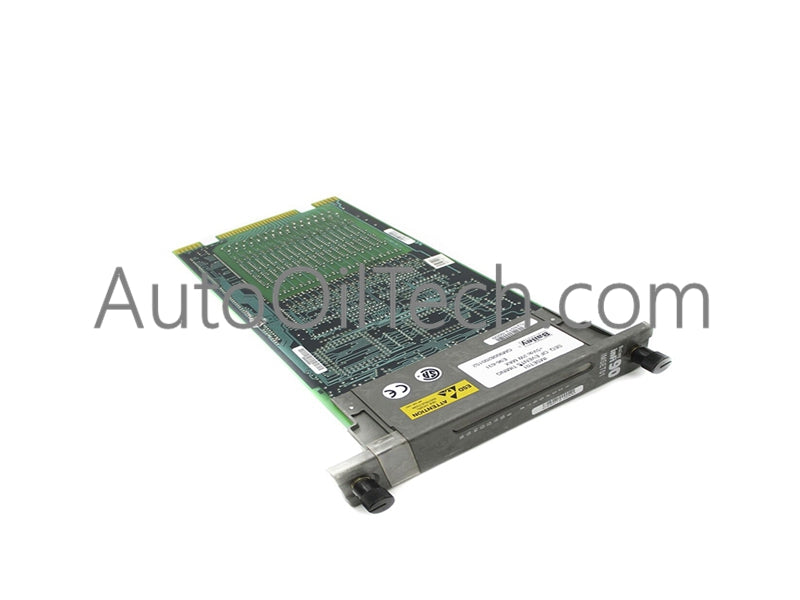

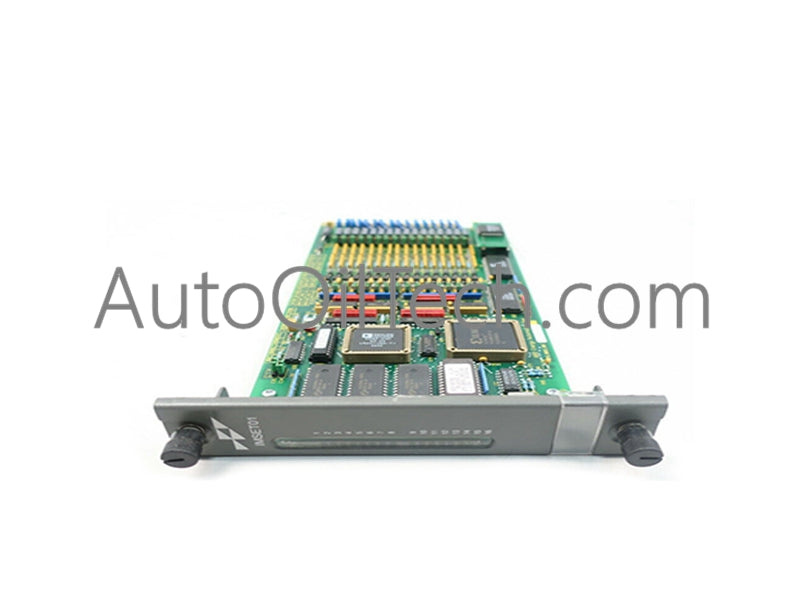

The ABB IMSET01 Sequence of Event Time Keeper Module (IMSET01) is designed to provide precise event time-stamping and synchronization within Harmony control systems. It ensures accurate sequence-of-event recording, enabling operators to analyze system behavior and troubleshoot effectively.
Key Features
Model/Part Number:IMSET01
Product Type: Sequence of Event Time Keeper Module
Operating Voltage: +5 VDC, ±5% at 350 mA typical
Microprocessor: 16-bit, running at 10 MHz
Memory: 64 KB RAM, 64 KB ROM
Communication: RS-485 time synchronization (IMSET01 only)
Digital Input Voltage Options:
24 VDC (±10%)
48 VDC (±10%)
125 VDC (±10%)
120 VAC (±10%) (system control logic only)
Digital Input Current (typical):
5 mA (24 VDC)
4 mA (48 VDC)
4 mA (125 VDC)
5 mA (120 VAC)
Turn-On Voltage (minimum):
21.6 VDC, 43.2 VDC, 112.5 VDC, 108 VAC
Turn-Off Voltage (maximum):
10 VDC, 20 VDC, 50 VDC, 50 VAC
Maximum Off-Leakage Current: 1.5 mA (all DI voltages)
Response Time (typical):
DC fast: 1.1 msec
DC slow: 18 msec
AC: 5 msec after first positive half cycle
Isolation:
1,000 VDC/VRMS channel-to-system
350 VDC/VRMS channel-to-channel
Applications
Event sequence recording in Harmony control systems
Time synchronization across distributed control modules
Industrial process monitoring requiring precise event logging
FAQ
Q: What is the main function of the IMSET01 module? A: It provides accurate time-stamping and synchronization for sequence-of-event recording in ABB Harmony systems.
Q: Can the IMSET01 handle both DC and AC inputs? A: Yes, it supports multiple DC voltage levels (24, 48, 125 VDC) and 120 VAC for system control logic.
