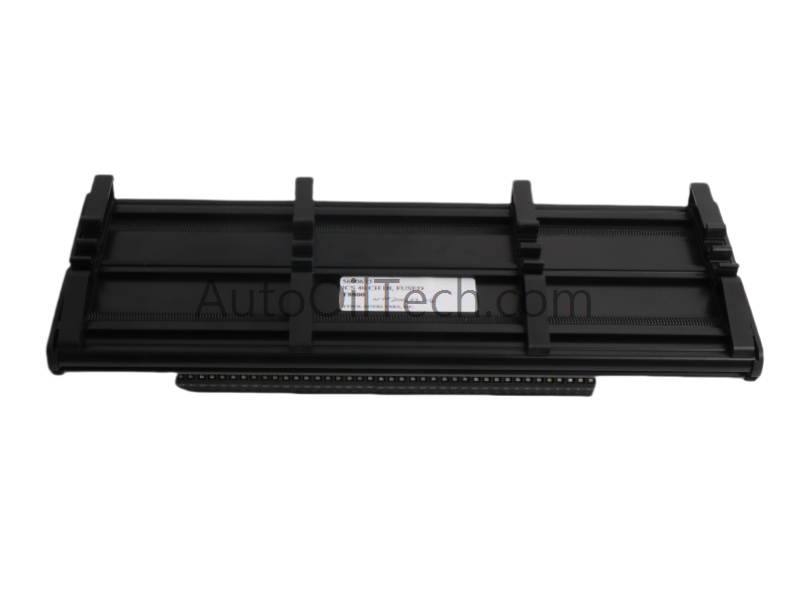

ICS Triplex T8830 is a high-reliability analog input FTA module designed for Trusted TMR systems. It provides fused channel protection and stable signal transmission from field devices such as sensors and transducers.
Specifications
Model Number: T8830
Type: Analog Input Field Termination Assembly (FTA)
Channels: 40 analog input channels
Connection: Standard 2-wire field device connection
Power Supply: Dual 24 VDC (range 18–32 VDC)
Max Current per Channel: 50 mA (fused field supply)
Power Consumption: 0.25 W (including LED indicators)
Indicators: On-board LED status display
Dimensions: 111 × 335 × 51 mm
Weight: Approx. 0.9 kg
Operating Temperature: 0℃ to +60℃
Storage Temperature: -25℃ to +70℃
Humidity: 10%–95% non-condensing
Mounting: DIN rail compatible
Features
High Reliability: Each channel equipped with fused power supply for enhanced protection
Signal Integrity: Stable transmission of analog signals such as temperature and pressure
Easy Integration: Supports standard 2-wire field devices and DIN rail installation
Hot-Swap Capability: Smartslot connection allows module replacement with minimal downtime
Diagnostic LEDs: Real-time monitoring of channel and power status
Industrial Application: Designed for process control, safety-critical, and automation systems
