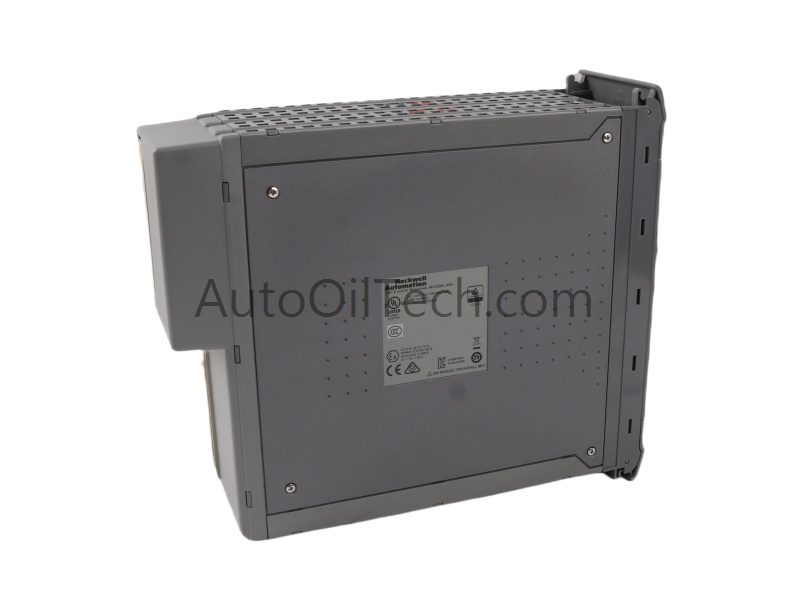

ICS Triplex T8111 Trusted TMR Processor

The ICS Triplex T8111, also cataloged as the T8111 processor module, serves as the primary Trusted TMR processor used to execute synchronized control logic across Trusted system platforms. It performs coordinated processing, IMB communication, and event handling within triplicated safety paths.

Hardware Specifications

Triple Modular Redundancy & Fail-safe Execution

The T8111 operates under a 2oo3 TMR architecture, where three synchronized processor slices execute identical logic and vote on deterministic outcomes. Triple‑redundant IMB communication ensures that controller‑to‑module data transfer remains valid even under single‑slice degradation. Galvanic isolation across internal paths prevents fault propagation between slices. SOE buffering supports 1000 local events with transfer to a 4000‑event CI buffer, maintaining chronological resolution for diagnostics.

Frequently Asked Questions

Q: Does the T8111 support hot‑swap replacement? A: Removal or insertion should only occur with the chassis de‑energized to avoid IMB disturbance and processor resynchronization delays.

Q: How does the processor behave under a slice fault? A: The remaining two slices maintain deterministic execution under the 2oo3 voting mechanism, while diagnostics flag the degraded slice.

Q: Are firmware versions interchangeable across Trusted releases? A: Firmware alignment is recommended to maintain consistent SOE timing, IMB synchronization, and diagnostic intervals across mixed‑release systems.

Field Installation Guidelines
