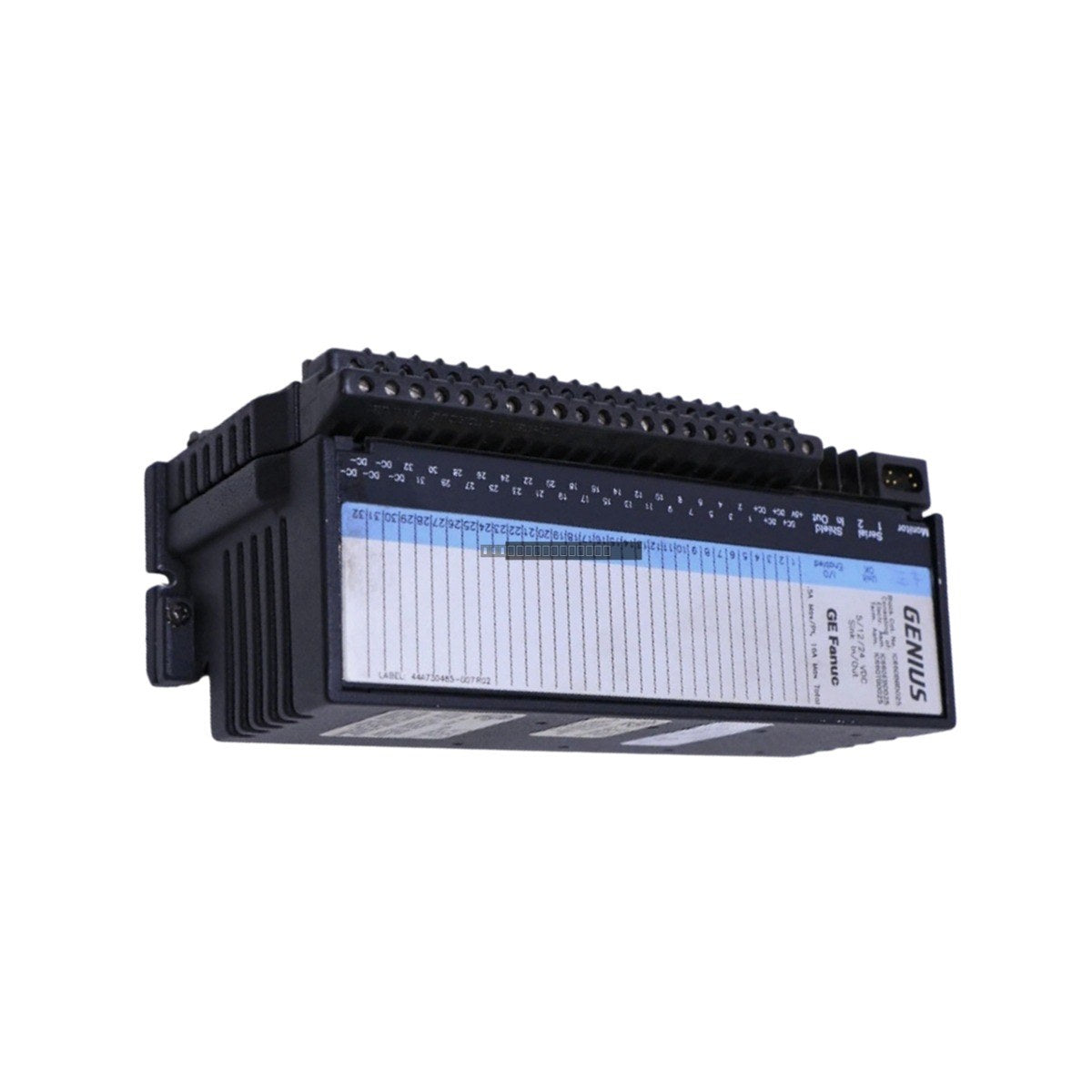

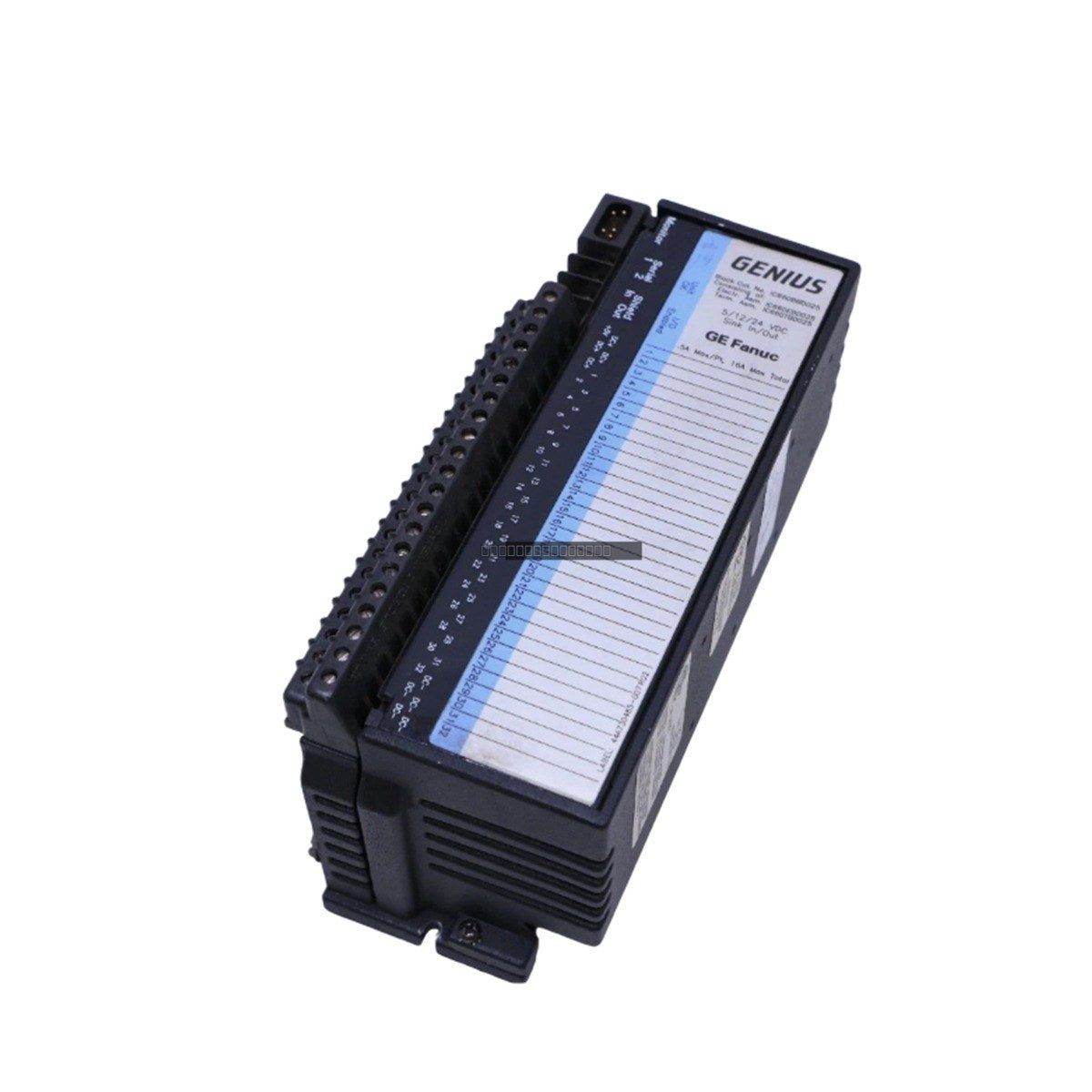

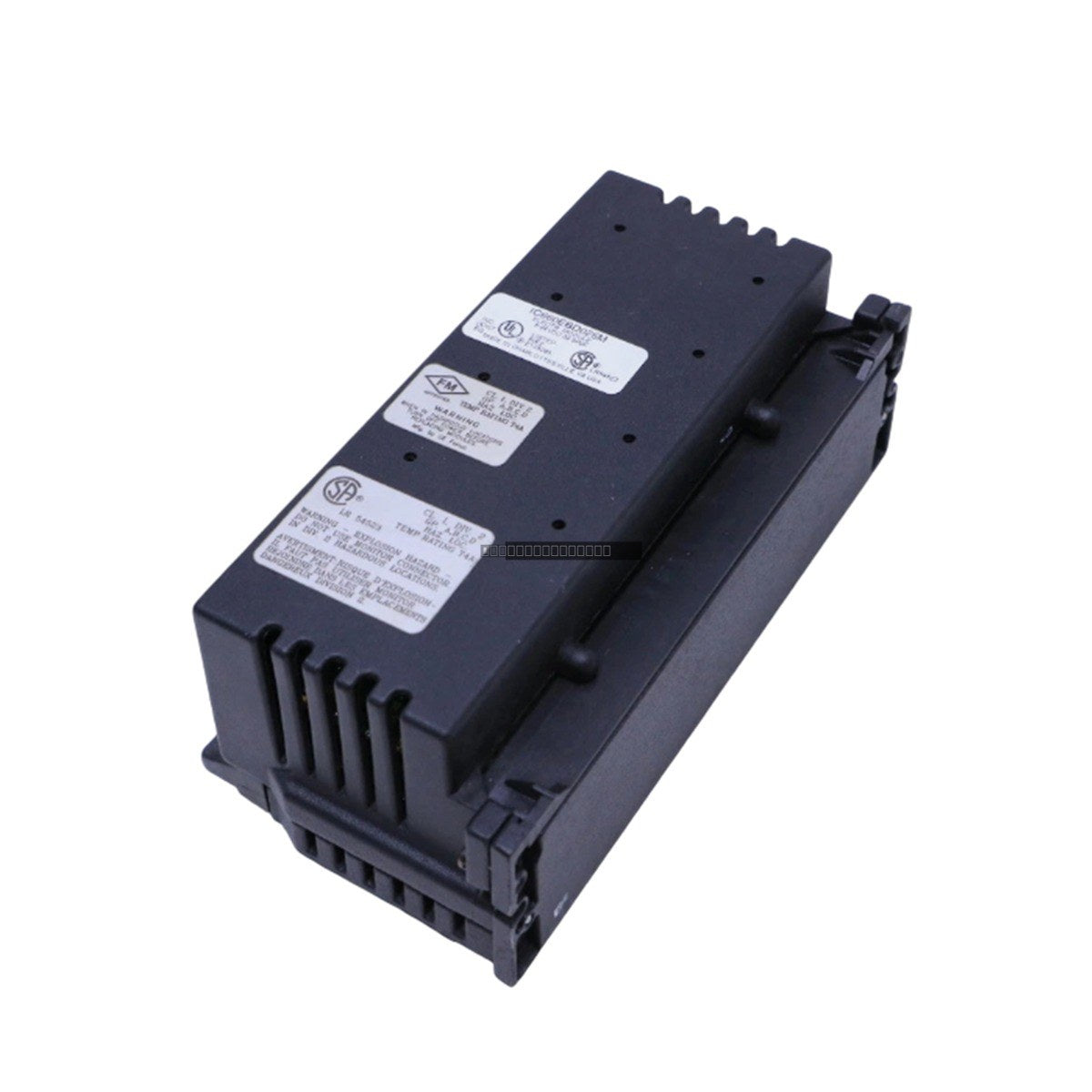

The General Electric IC660BBD025 is a 32-circuit Genius Block I/O module designed for flexible, high-density discrete signal processing. This sinking I/O block is engineered to support a wide range of industrial applications, offering compatibility with 5, 12, and 24 VDC signal levels. Each of the 32 circuits is software-configurable, allowing users to define them as inputs, outputs, or outputs with feedback, providing significant versatility for complex control architectures.
Features
Thirty-two configurable discrete I/O circuits.
Supports 12 to 24 VDC nominal operation, with 5 VDC TTL compatibility.
Built-in self-protecting circuits for output drivers against shorted loads and surges.
Advanced diagnostic capabilities including switch fault monitoring.
Integrated Hand-Held Monitor (HHM) port and Genius I/O bus connectivity.
Individual circuit status LEDs for local logic-side monitoring.
Applications
Remote I/O distribution in oil and gas hydrocarbon processing.
High-density discrete interfacing for turbine control systems.
Proximity sensor and actuator integration in robotics and CNC machinery.
Marine-based control systems and shipboard monitoring.
Technical Specifications
Product Model
IC660BBD025
I/O Type
Sinking
Circuit Count
32
Input Voltage
5/12/24 VDC
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 85 degC
Max Steady State Current
0.5 A per circuit
Max Inrush Current
4 A (up to 10ms)
Input Impedance
3.3 kOhms (typical)
Block Isolation
850V
Humidity
5% to 95% non-condensing
Installation Guidelines
Environment: Install within a clean, protective enclosure with adequate ventilation to prevent overheating.
Mounting: Secure the block using 8-32 hardware. Ensure notches in the flanges align with mounting points. Use star washers to maintain proper ground integrity.
Spacing: Maintain a minimum clearance of 2 inches between adjacent blocks to facilitate airflow.
Handling: This device is static-sensitive. Use a grounded ESD wrist strap and handle only by the edges.
Safety: Always disconnect power before performing installation, wiring, or removal of the module.
FAQ
What is the primary function of the IC660BBD025?
It acts as an intelligent, configurable interface between a controller and field devices, managing up to 32 discrete I/O points in a compact block format.
Is this module compatible with TTL signals?
Yes, the sinking version of this block is compatible with 5 VDC TTL-level signals.
What communication protocol does this module use?
It utilizes the Genius I/O bus protocol, which supports long-distance communication up to 7,500 feet.
How are the circuits protected?
Each circuit features built-in, resettable self-protection that guards against shorted loads and excessive inrush currents.
