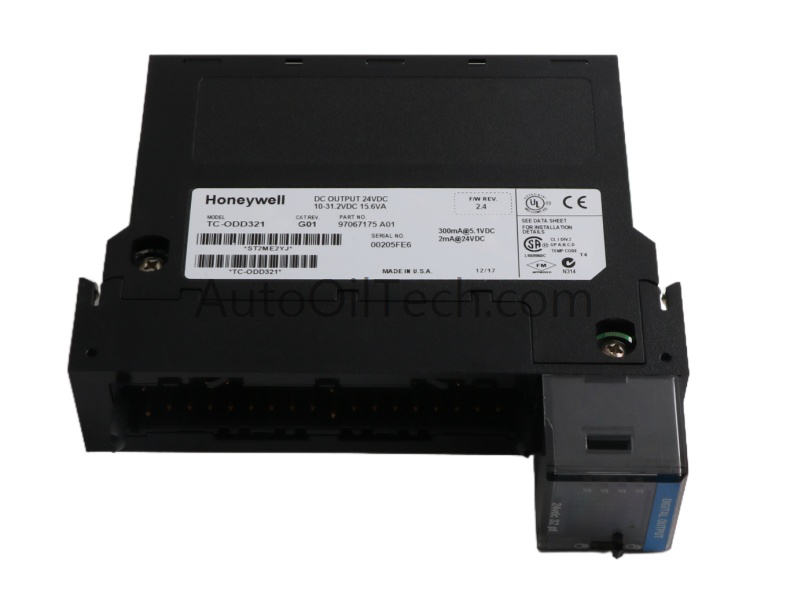

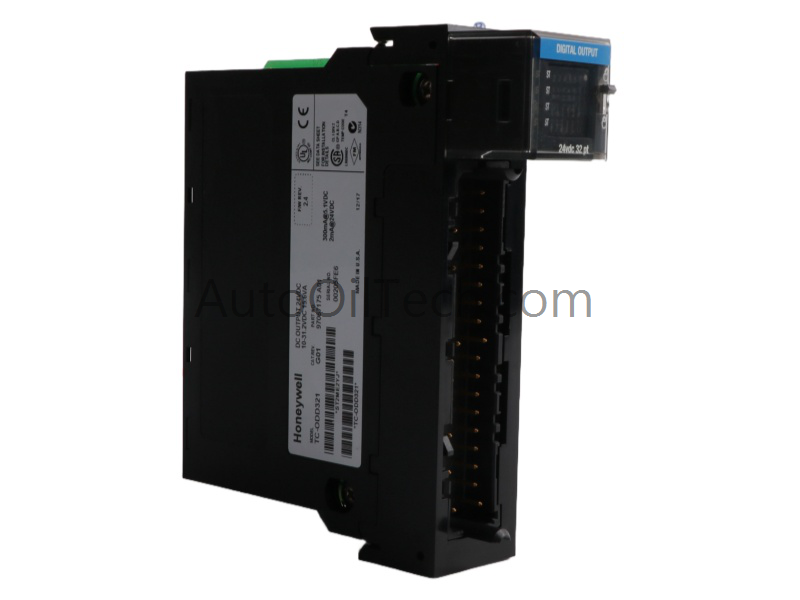

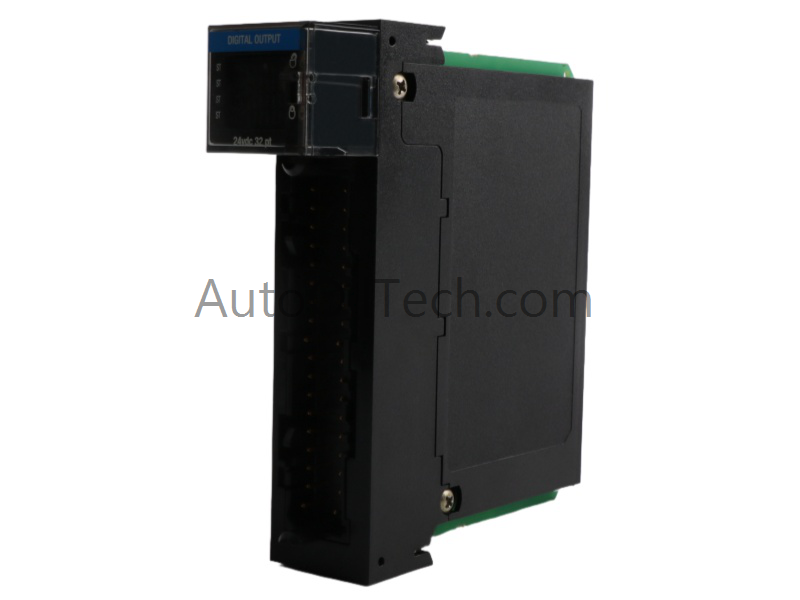

The Honeywell TC-ODD321 Experion DC Output Module is a high-density 32-point discrete output module engineered for industrial automation. Operating at 24 VDC, it provides reliable control of industrial devices with flexible configuration options for fault and program states. Its rugged design, IP65 protection, and DIN rail mounting make it ideal for demanding environments requiring both performance and durability.
Technical Specifications
Parameter
Value
Model Number
TC-ODD321
Module Type
Experion DC Output Module
Manufacturer
Honeywell
Condition
Brand New
Dimensions
3.5 x 14 x 14.5 cm
Weight
0.24 kg
Output Points
32 (groups of 16 per common)
Output Voltage Range
10–31.2 VDC
Nominal Output
24 VDC
Output Current
Up to 100 mA per channel
Isolation
Opto-isolated, up to 250 VAC
Fault/Program States
Hold Last State, ON, OFF
Protection Rating
IP65 (dust and moisture resistant)
Mounting
DIN rail
System
DCS / Experion PKS
HS Code
8537101190
Product Origin
USA
MOQ
1
Lead Time
In Stock
Functional Highlights
32 discrete outputs arranged in groups of 16 per common.
Configurable fault/program states for enhanced safety.
Opto-isolated channels provide robust electrical protection.
IP65-rated enclosure ensures resistance to dust and moisture.
DIN rail mounting simplifies integration into control cabinets.
