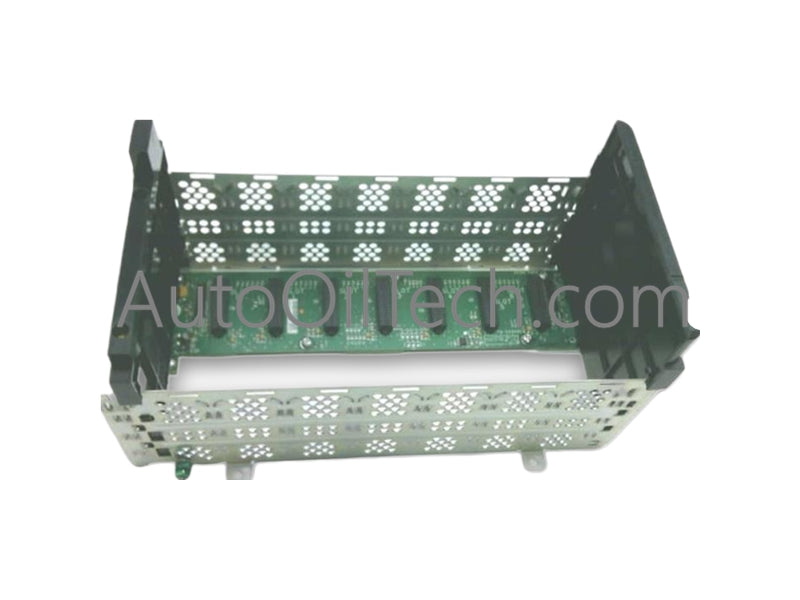

The Honeywell TC-FXX072, also cataloged as the TC-FXX072 PLC Module, operates as a dedicated hardware component for backplane power routing and physical module mounting within Honeywell Experion PKS chassis platforms.
Hardware Specifications
Parameter
Specification
Model
TC-FXX072
Brand
Honeywell
Origin
USA
Weight
2.25 lbs (1.02 kg)
Dimensions
Standard Experion 7-slot chassis panel dimensions
Operating Temp
0 to +60 deg C
Power Consumption
24 VDC nominal chassis power bus feed
Slot Capacity
7 expansion slots
Backplane Isolation
Channel-to-channel and bus galvanic isolation standard
Mounting Type
DIN-rail or panel enclosure mount
Channel-to-Channel Isolation & Backplane Bus Integrity
Engineered for process control environments, the TC-FXX072 chassis provides stable power distribution and high-speed signal routing across seven dedicated module slots. Internal backplane traces maintain channel-to-channel isolation and robust immunity against high-frequency electromagnetic interference, safeguarding sensitive analog and digital I/O communications. Power rails supplied by the 24 VDC input are regulated across the backplane to prevent transient voltage sags and ground loop cross-talk between adjacent control modules.
Frequently Asked Questions
Q: What is the primary operating voltage feed for the TC-FXX072 backplane?
A: The chassis backplane operates on a nominal 24 VDC system power feed, which distributes regulated operational power to all seated I/O and processor cards.
Q: How many module slots are provided by the TC-FXX072 hardware frame?
A: The TC-FXX072 provides 7 physical slots for housing Experion controllers, power supplies, and field I/O interface modules.
Field Installation Guidelines
Ensure all system power sources feeding the 24 VDC input terminals are locked out and tagged out prior to mechanical mounting.
Secure the 7-slot chassis to the mounting panel or cabinet subplate using specified hardware to ensure proper mechanical bonding.
Connect the main cabinet earth ground wire directly to the chassis ground lug to establish a low-impedance path to ground.
Verify that card slot guide rails are free of debris before inserting processor or I/O modules into the backplane connectors.
Apply 24 VDC system power and verify backplane rail voltages with a calibrated multimeter prior to commissioning control loops.
