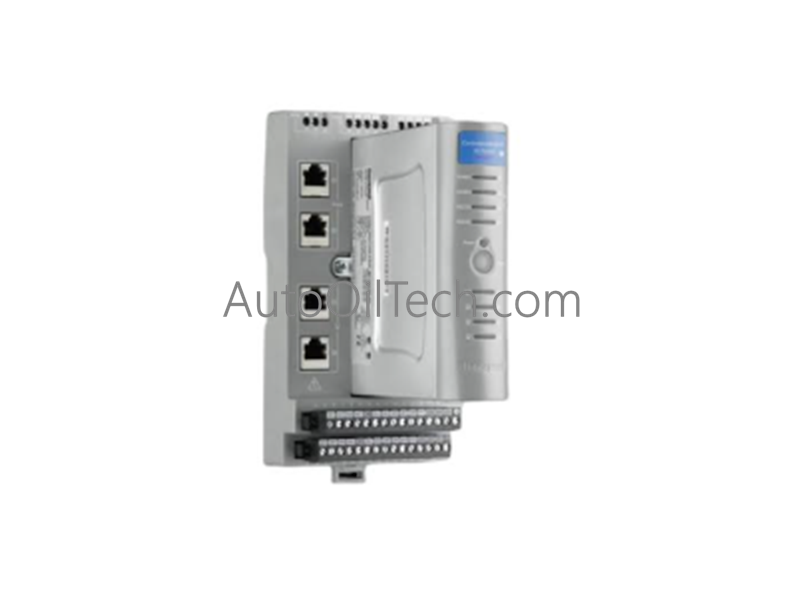

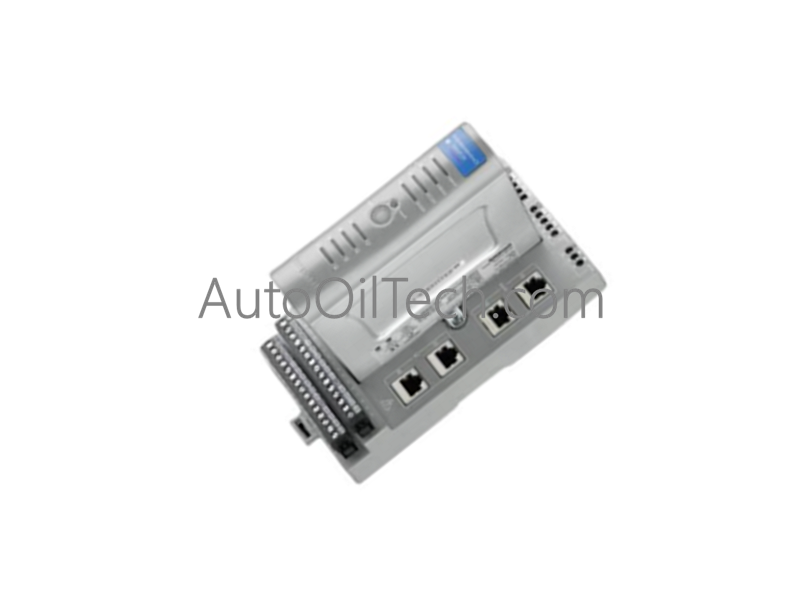

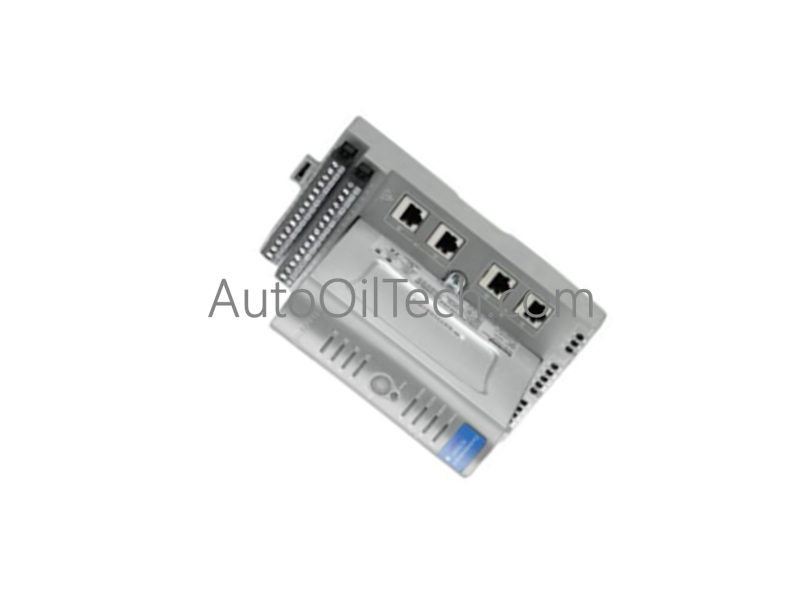

Honeywell SC-UMX01 Mixed I/O Module Series

The Honeywell SC-UMX01, also cataloged as the SC-UMX01 Mixed I/O Module, operates as a dedicated hardware component for universal analog and digital signal execution within industrial automation networks. This module provides a flexible, high-density interface layout that directly processes non-interfering analog input current loops, digital voltage inputs, and discrete output command signals on a single, shared backplane slot profile.

Hardware Specifications

Process Control and DCS Metrics

• Universal Channel-to-Channel Isolation Parameters: The module features dedicated optocouplers and physical insulation channels across its input and output matrix. By maintaining strict channel-to-channel isolation parameters, the onboard circuitry blocks common-mode voltage offsets, field ground loops, and transient spike currents from migrating into adjacent communication paths or common processing registers.
• 4-20 mA HART Loop Protocol Path Preservation: The analog input networks incorporate high-frequency dampening filters tuned to pass standard linear current signals while isolating digital control carrier waves. This physical trace separation prevents high-frequency digital clock rates or neighboring switching spikes from inducing cross-talk fields into active 4-20 mA HART loop protocol lines sharing the same field terminal tracks.

Frequently Asked Questions

Q: How does the mixed architecture of the SC-UMX01 prevent internal cross-talk between the discrete and analog channels?

A: The physical circuit layouts inside the module isolate the fast-switching high-voltage discrete driving rails from the low-potential analog measurement traces. Separate power plane layers and dedicated ground shields on the internal multi-layer PCB attenuate capacitive and inductive coupling, preserving the conversion accuracy of the analog paths.

Q: Can the analog input channels on the SC-UMX01 module supply loop power to external two-wire transmitters?

A: Yes. Depending on the physical terminal jumper mapping or software control block configuration, the module's 24 VDC auxiliary distribution path can be routed to supply continuous loop power straight to standard field transmitters while simultaneously tracking the returned 4-20 mA current loop signal.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Insert the module housing straight into its assigned slot on the system backplane framework, pushing firmly until the mechanical locking clips latch onto the rack structure. Verify a minimum 50 mm clearance perimeter above and below the card cage to support natural vertical air convection and prevent thermal load concentrations on the electronic housing.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Route all low-potential 4-20 mA analog instrument loops and communication cables through dedicated wireways completely isolated from high-voltage AC lines, 120 VDC discrete command paths, or heavy motor power conductors. Connect the outer braided shield layers of the field cables straight to the cabinet's central copper earth bus bar to ground stray electromagnetic field noise away from the I/O channels.
