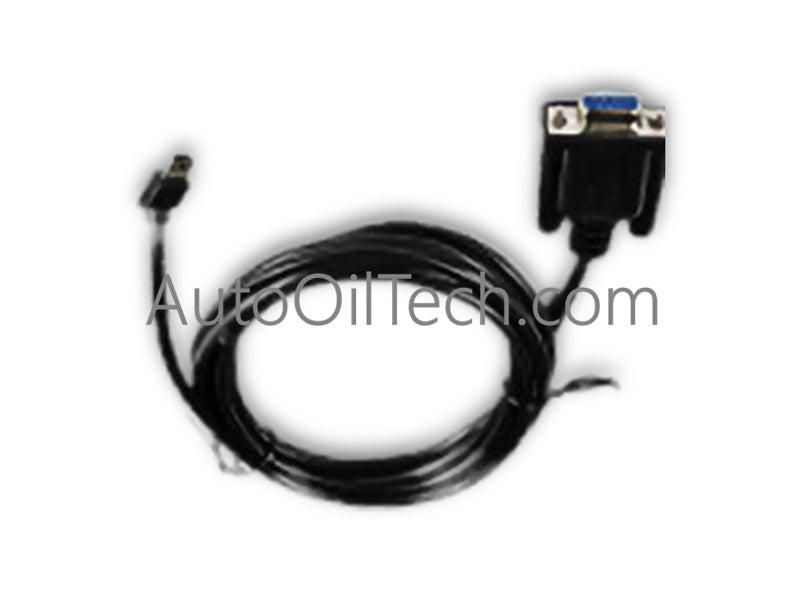

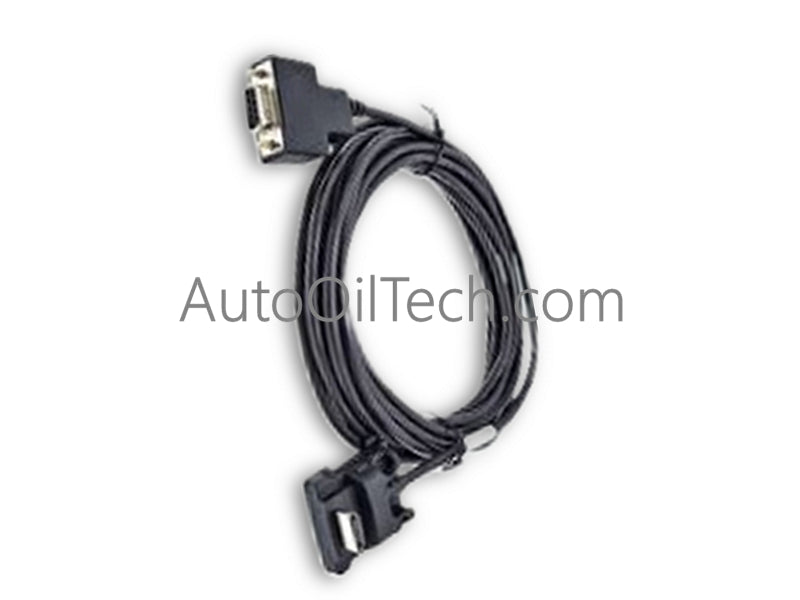

The Honeywell RS232 CABLE 5M, also cataloged as the RS232 CABLE 5M Serial Communication Cable, operates as a dedicated hardware component for physical signal interconnection within Honeywell DCS and control platforms.
Suffix Breakdown & Model Matrix
RS232 CABLE 5M: Standard 5-meter serial communications interface cable terminated with DB9 connectors for direct RS-232 serial physical layer connectivity.
Hardware Specifications
Parameter
Specification
Model
RS232 CABLE 5M
Brand
Honeywell
Origin
USA
Weight
Standard Cable Assembly Weight
Dimensions
5 meters (16.4 feet) length
Operating Temp
-20 to +60 deg C
Power Consumption
Passive physical media (N/A)
Cable Type
High-quality PVC insulated serial assembly
Connector Type
Standard RS232 DB9 male/female options
System Compatibility
Honeywell platforms with RS232 interfaces
Galvanic Isolation & Process Network Communications
Engineered for industrial serial data transmission, the RS232 CABLE 5M maintains continuous signal shielding across its 5-meter length to suppress electromagnetic interference (EMI) and noise coupling. When interfaced with process controllers and 4-20 mA HART diagnostic tool ports, the durable PVC insulation provides physical protection and preserves signal integrity between serial transceivers without introducing channel-to-channel communication drift.
Frequently Asked Questions
Q: What is the maximum recommended operating temperature range for the RS232 CABLE 5M?
A: The cable assembly is rated for continuous operation within an environment of -20 to +60 deg C (-4 to +140 deg F).
Q: What connector interfaces are provided on this serial cable assembly?
A: The assembly features standard DB9 serial connectors designed to mate directly with Honeywell serial ports and standard PC COM ports.
Field Installation Guidelines
Inspect cable jacket and connectors for mechanical defects or bent pins prior to installation.
Route the cable through designated low-voltage cable trays, keeping it isolated from AC power lines to avoid EMI.
Align DB9 connectors with the mating device port and push straight in without forcing the pins.
Tighten the integral jack-screw retainers on both ends to ensure complete electrical contact and vibration immunity.
Connect any drain wires or shield braid terminations to cabinet single-point ground terminals where applicable.
