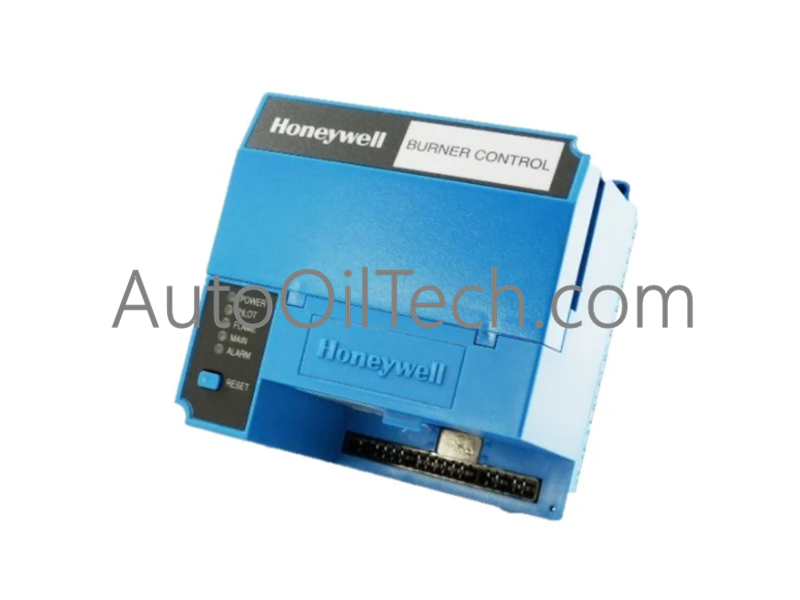

The Honeywell RM7895C1012, also cataloged as the RM7895C1012 Burner Control Unit, operates as a dedicated hardware component for automatic burner sequencing and flame supervision within 7800 Series platforms. This relay module executes prepurge timing, interrupted pilot control, delayed main valve activation, and nonvolatile memory data logging over a 120 VAC supply line.
Hardware Specifications
Parameter
Specification
Model
RM7895C1012
Brand
Honeywell
Origin
Industrial Automation Standard
Weight
0.96 kg (2.12 lbs)
Dimensions
Standard 7800 Series Module Footprint
Operating Temp
-40 deg C to +60 deg C
Power Consumption
120 VAC, 50/60 Hz
System Platform
7800 Series
Memory Type
Nonvolatile Memory
Pilot Type
Interrupted Pilot
Main Flame Establishing Period
10 Seconds
Pilot Flame Establishing Period
4 or 10 Seconds (Selectable)
Channel Isolation and Dynamic Protocol Characteristics
The module utilizes channel-to-channel isolation and structured bus communication parameters across its backplane interface layer. In process automation topologies, electrical isolation prevents common-mode interference from compromising readout accuracy during flame sequence transitions. The module incorporates internal signal filtering and cold junction compensation algorithms within the host burner control architecture to maintain real-time diagnostic reporting during supply voltage fluctuations or high-frequency ignition noise.
Frequently Asked Questions
Q: What happens to operational history stored in the RM7895C1012 module during a total power failure?
A: Sequence status, lockout history, and operating cycles are stored in nonvolatile memory, ensuring data retention without battery backup.
Q: What line power specification is required for module operation?
A: The module requires a nominal power supply of 120 VAC at 50/60 Hz.
Field Installation Guidelines
Disconnect line power to the control panel prior to mounting or removing the RM7895C1012 module from its subbase.
Inspect subbase socket pins and verify wire terminal screw tightness before engaging module retention clips.
Keep high-voltage ignition transformer leads isolated from low-voltage field sensor and interlock wiring to avoid inductive interference.
Ensure the subbase ground terminal is connected to the enclosure master ground bus using heavy-gauge copper conductor.
