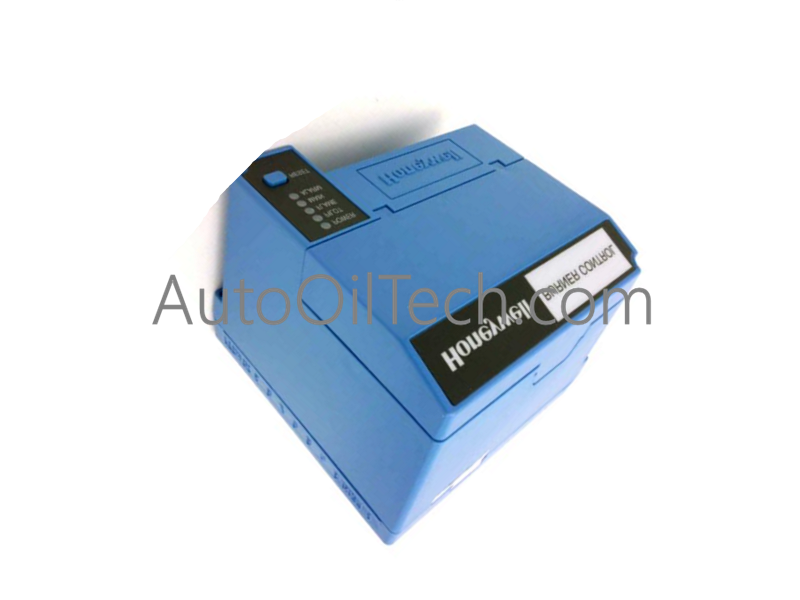

Honeywell RM7890B1048 7800 Series Burner Control

Configured for primary flame safeguard execution in heavy industrial HVAC combustion networks, the Honeywell RM7890B1048 (RM7890 Burner Control Unit) provides direct physical/electrical execution. It operates as a microprocessor-based relay module, initiating fixed 4 second or 10 second pilot flame establishing periods alongside intermittent main flame supervision. The hardware relies on a 120 VAC input circuit and incorporates integrated nonvolatile memory to mechanically retain sequence timing and lockout status independently of external power inputs.

Hardware Specifications

Channel-to-Channel Isolation and Loop Integrity

Within the broader plant DCS integration architecture, the internal printed circuit board of the burner control module leverages channel-to-channel isolation principles to shield microampere flame amplifier signals from backplane ground loops and high-voltage transient spikes. The hardware ensures that the 120 VAC ignition output relays remain galvanically separated from the sensitive analog flame detection pathways. This strict electrical isolation scheme prevents localized spark interference from falsely triggering combustion state data, maintaining deterministic sequence control and accurate safety lockout execution across the physical combustion network without requiring external signal conditioning barriers.

Frequently Asked Questions

Q: Does the relay module retain sequence lockout fault data following a complete 120 VAC power loss?

A: Yes, the unit utilizes integrated nonvolatile memory on the internal processing board. This physical architecture ensures that operational history, fault codes, and electromechanical lockout states are permanently written to memory, allowing direct diagnostic retrieval when the 120 VAC power is restored to the primary backplane terminal.

Q: What are the primary mechanical requirements for utilizing the included dust cover?

A: The provided dust cover physically snaps over the exposed front-facing printed circuit board (PCB) and diagnostic interfaces. It acts as a primary mechanical barrier against conductive particulate accumulation on the relay contacts, which is necessary to prevent surface tracking faults across the input terminals in standard industrial HVAC environments.

Field Installation Guidelines

• Terminate the 120 VAC primary supply lines to the designated subbase wiring terminals using standard industrial torque specifications (typically 8 to 10 in-lbs) to maintain a gas-tight electrical contact under continuous thermal cycling.
• Route all flame scanner microampere signal wiring in separate, grounded steel conduits strictly away from high-voltage ignition transformer cables to eliminate inductive cross-talk.
• Ensure the subbase grounding terminal is bonded directly to the primary burner chassis ground using a dedicated, low-impedance copper wire, actively avoiding daisy-chain grounding configurations.
• Verify that the wiring subbase is mounted completely flat on the back panel to prevent mechanical warping of the relay module header pins when mating the unit to the terminal block.
