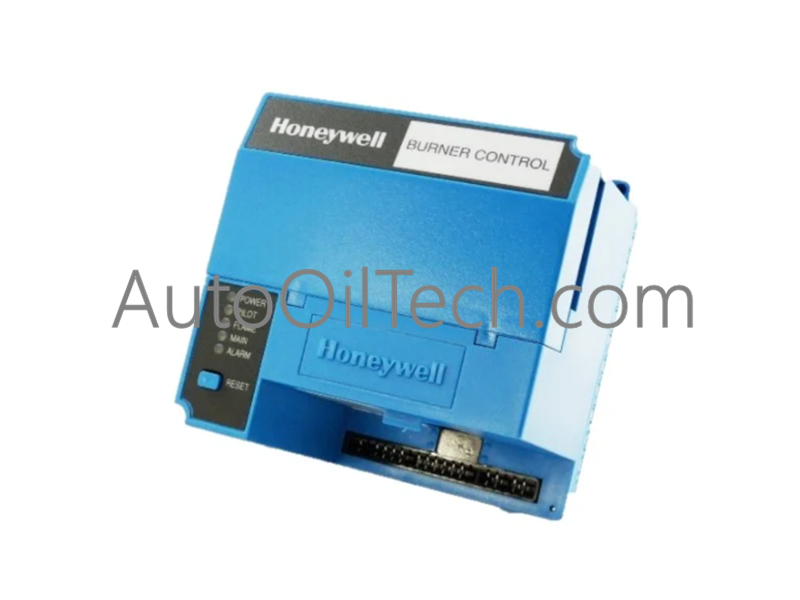

Honeywell RM7890B1014 7800 Series Relay

The Honeywell RM7890B1014, also cataloged as the RM7890B1014 Burner Control Unit, operates as a dedicated hardware component for primary flame safeguard execution within industrial HVAC combustion networks. Operating on a 120 VAC, 50/60 Hz supply, the microprocessor-based relay module executes intermittent pilot sequences alongside intermittent main flame establishing periods with a fixed 4 second or 10 second pilot flame timing.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel Isolation

Within integrated plant process loops, the RM7890B1014 utilizes internal signal filtering and channel-to-channel isolation principles to insulate low-level flame sensor inputs from high-voltage AC ignition interference. The solid-state control architecture decouples internal microampere flame signal processing lines from the main 120 VAC switching relays and external field wiring terminals. This isolation layout suppresses high-frequency inductive electrical noise, eliminating ground-loop current shifts and maintaining deterministic sequence timing, flame signal validation, and emergency safety lockout execution during active combustion cycles.

Frequently Asked Questions

Q: Does the RM7890B1014 relay module require specific subbase hardware for terminal wiring?

A: Yes, the unit mates directly with standard Honeywell 7800 Series wiring subbases. Keyed female header pins on the rear PCB interface with the subbase terminals to enable secure electrical contact for 120 VAC input power, flame scanner inputs, and output relay circuits.

Q: How does the module handle main flame establishing periods?

A: The RM7890B1014 is configured specifically for intermittent pilot and intermittent main flame operating modes. The main flame establishing period remains active throughout the firing cycle while flame presence is continuously verified by the associated flame amplifier and detector hardware.

Field Installation Guidelines

• Secure the 7800 Series wiring subbase to a flat enclosure panel using recommended mounting hardware to prevent mechanical stress on module connector pins during insertion.
• Route high-voltage ignition transformer leads in separate grounded metal conduits away from low-voltage flame scanner wiring to suppress electromagnetic cross-talk.
• Connect the main equipment ground conductor directly to the subbase grounding lug using a single low-impedance copper jumper wire to avoid floating ground loops.
• Verify that terminal screw connections on the subbase are torqued to industrial specifications (8 to 10 in-lbs) to maintain gas-tight electrical contact across all active 120 VAC circuits.
