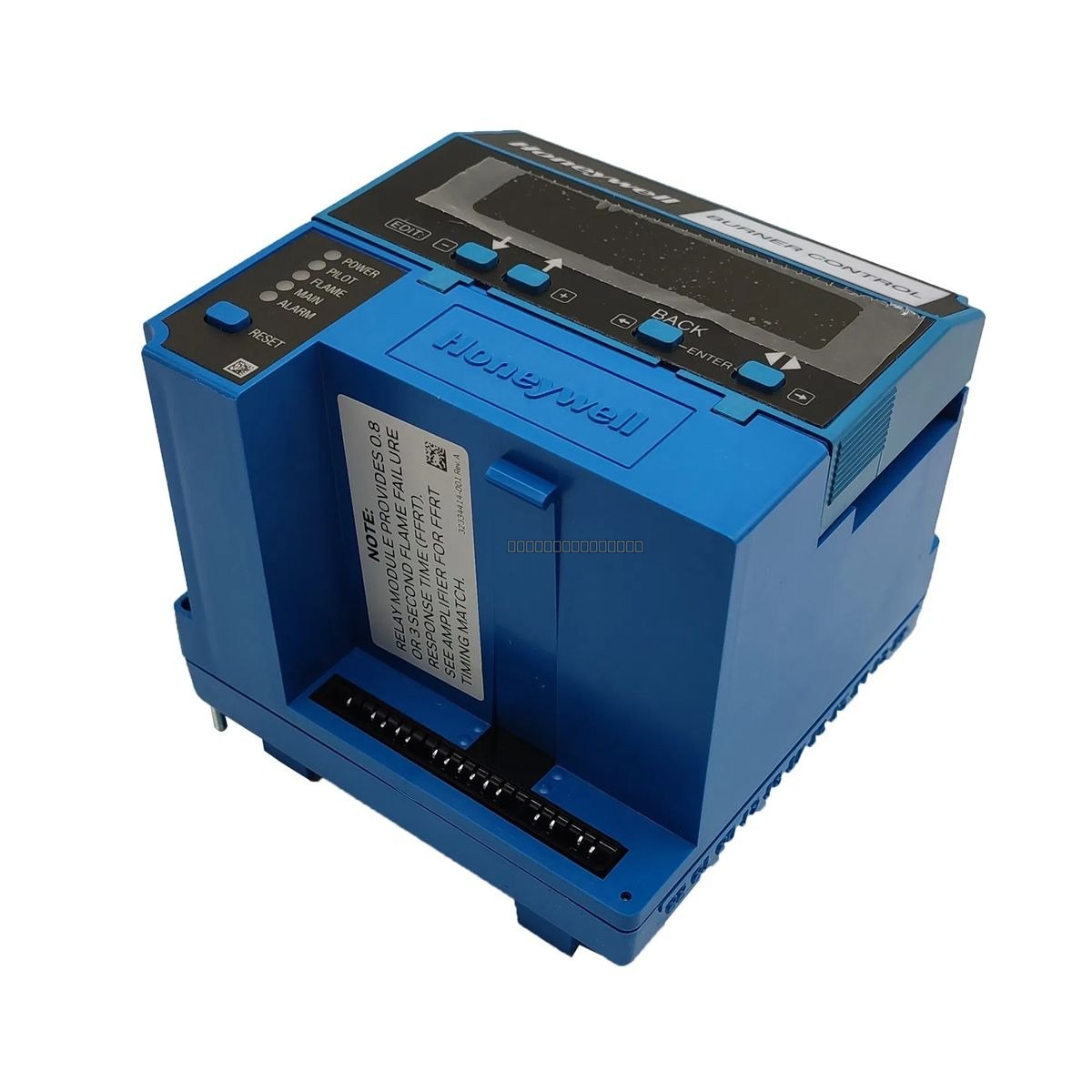

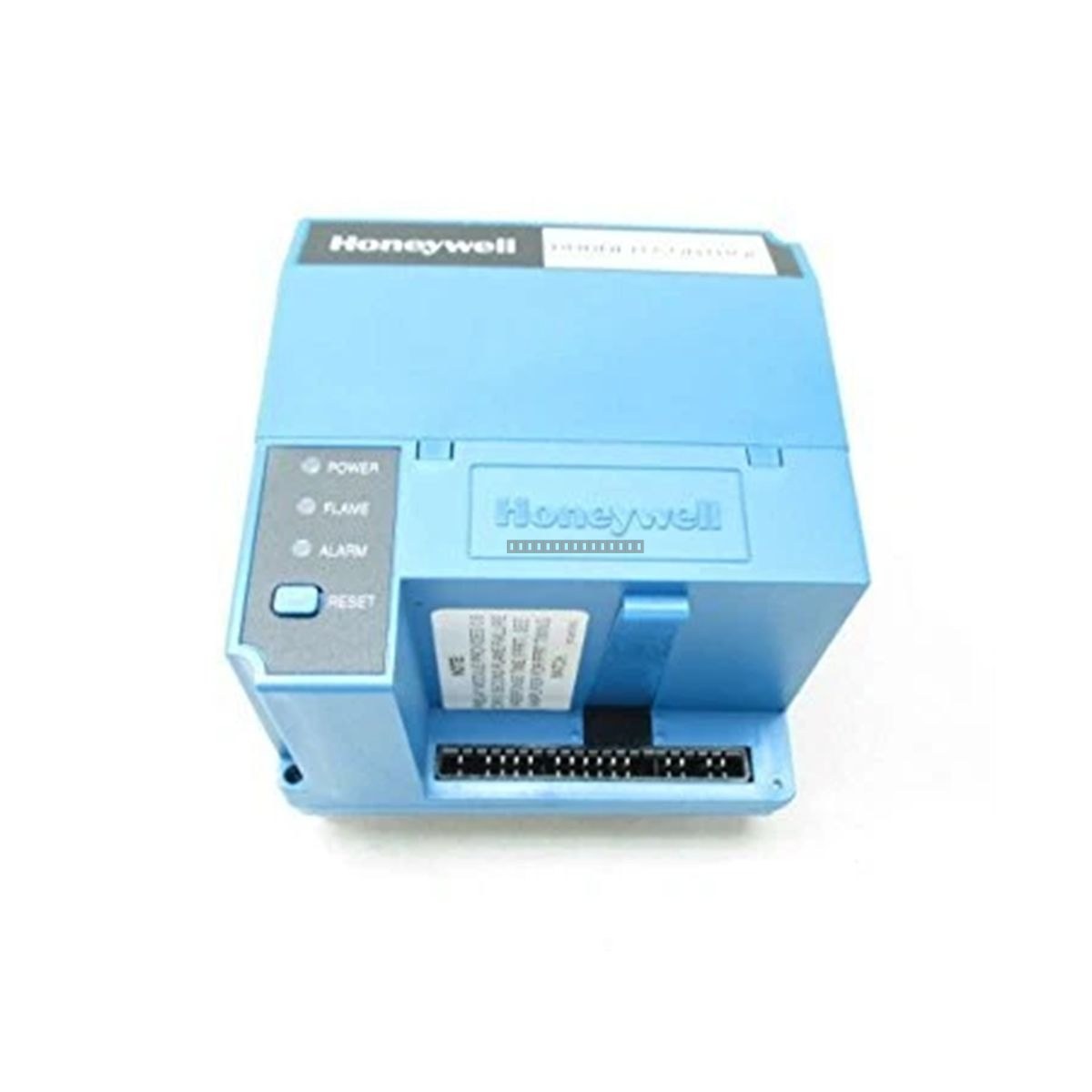

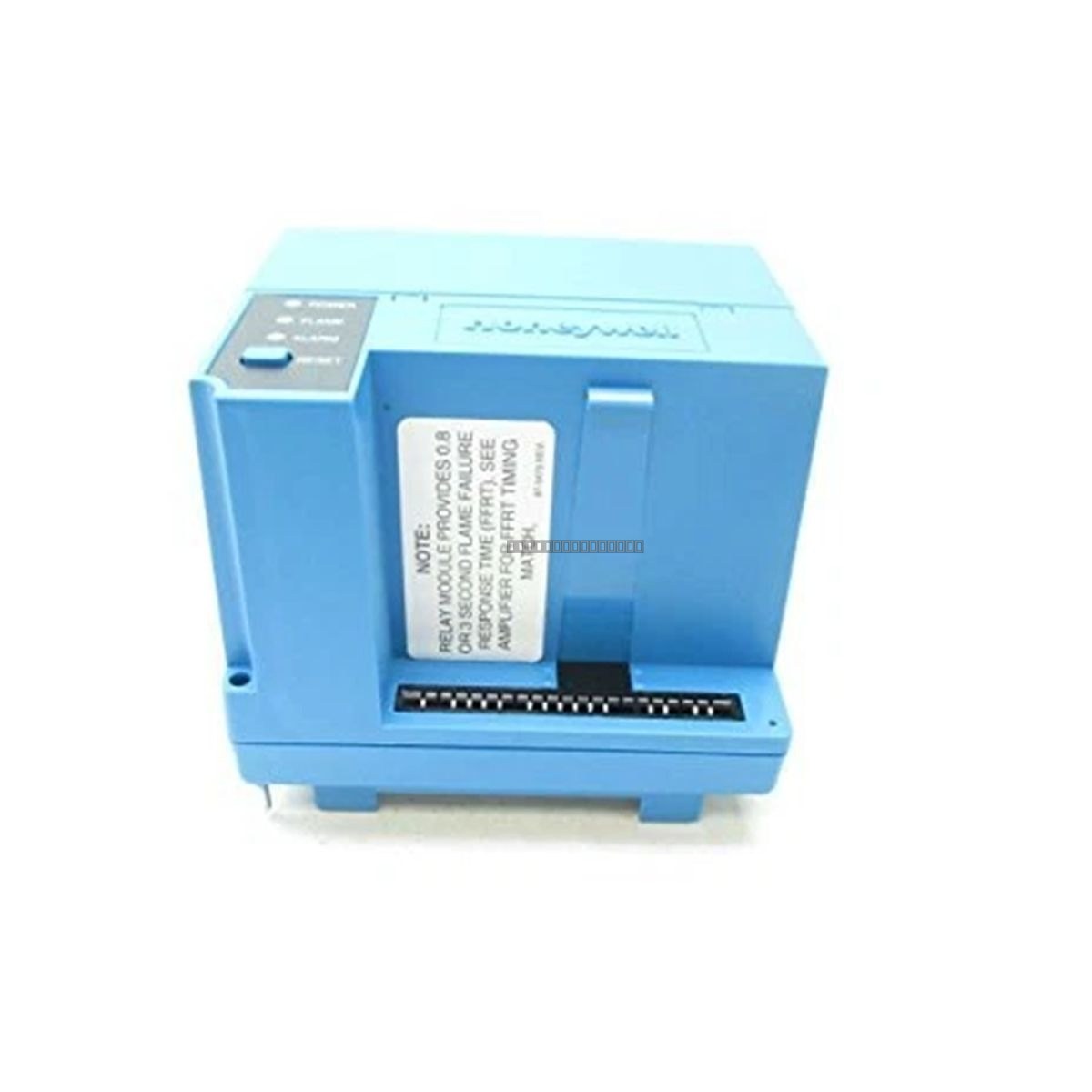

The RM7888A1019 is a Honeywell 7800 SERIES burner control module engineered for industrial combustion management systems that require high-integrity sequencing and flame supervision. This module is widely deployed in boilers, process heaters, and power generation burners where precise ignition control, purge sequencing, and flame monitoring are essential for operational safety. By automating start-up and shutdown logic, the RM7888A1019 reduces operator dependency and ensures repeatable, deterministic combustion cycles. Its modular design facilitates rapid maintenance and replacement within the 7800 SERIES architecture, minimizing unplanned downtime in critical thermal systems.
Features
Integrated burner management for safe ignition, purge, and shutdown sequences.
Deterministic relay-based logic for consistent switching performance under industrial load conditions.
Modular plug-in design compatible with the standard 7800 SERIES chassis architecture.
Supports integration with 7800 SERIES keyboard display units and flame amplifiers.
Designed for high-reliability operation in demanding thermal process environments.
Applications
The RM7888A1019 is suitable for a variety of industrial thermal applications, including:
Industrial boilers and steam generation systems.
Refinery furnaces and process heaters.
District heating plants.
Heavy industrial thermal processing equipment.
Technical Specifications
Model
RM7888A1019
Series
7800 SERIES
Supply Voltage
120 VAC, 60 Hz
Power Consumption
Approx 10 W
Operating Temperature
0 to 60 deg C
Control Type
Relay-based burner sequencing
Mounting
Plug-in rack-mounted
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the chassis.
Verify that the chassis backplane is clean and free of debris to ensure proper electrical contact.
The module is designed for plug-in installation; align the module with the chassis guides and press firmly until seated.
Ensure proper grounding of the burner control chassis to mitigate EMI/RFI interference.
Follow all local safety codes and manufacturer wiring diagrams when connecting external sensors or flame detectors.
Maintain adequate ventilation around the control cabinet to keep ambient temperatures within the 0 to 60 deg C operating range.
FAQ
Is this module compatible with other 7800 SERIES components? Yes, the RM7888A1019 is designed to interface with standard 7800 SERIES backplanes, flame amplifiers, and keyboard display units.
Can I replace this module without rewiring the system? Yes, the modular plug-in design of the 7800 SERIES allows for module replacement without requiring extensive rewiring of the chassis.
