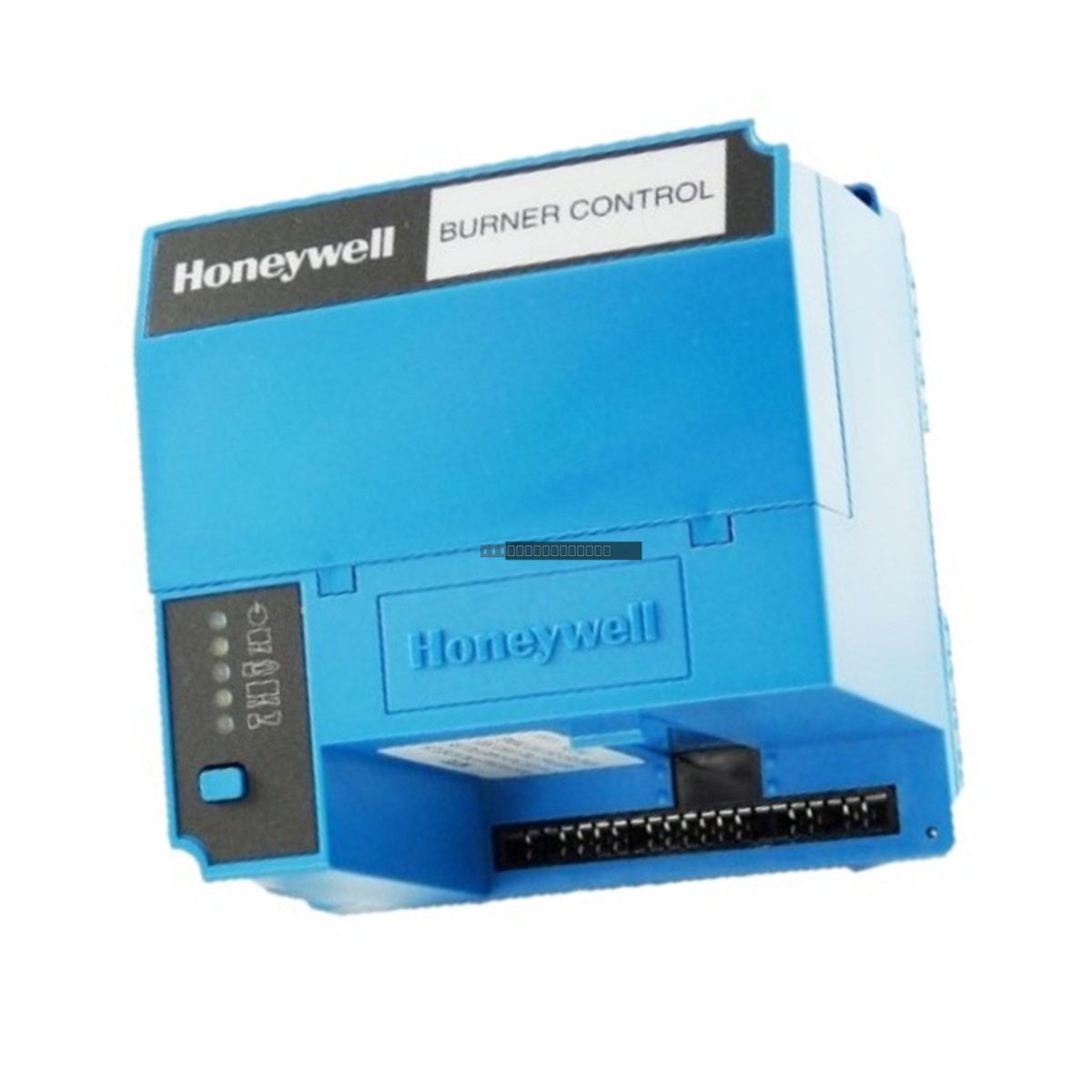

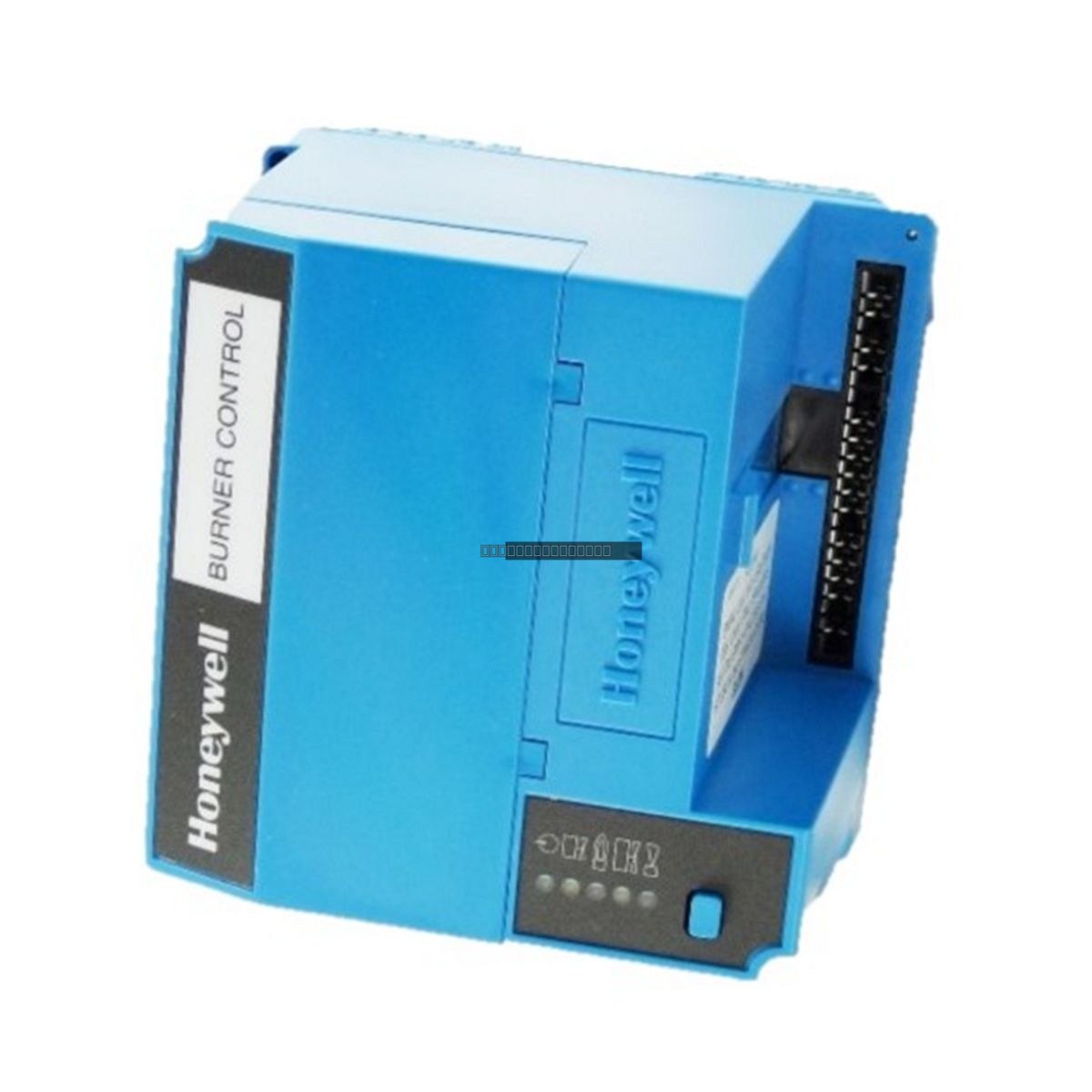

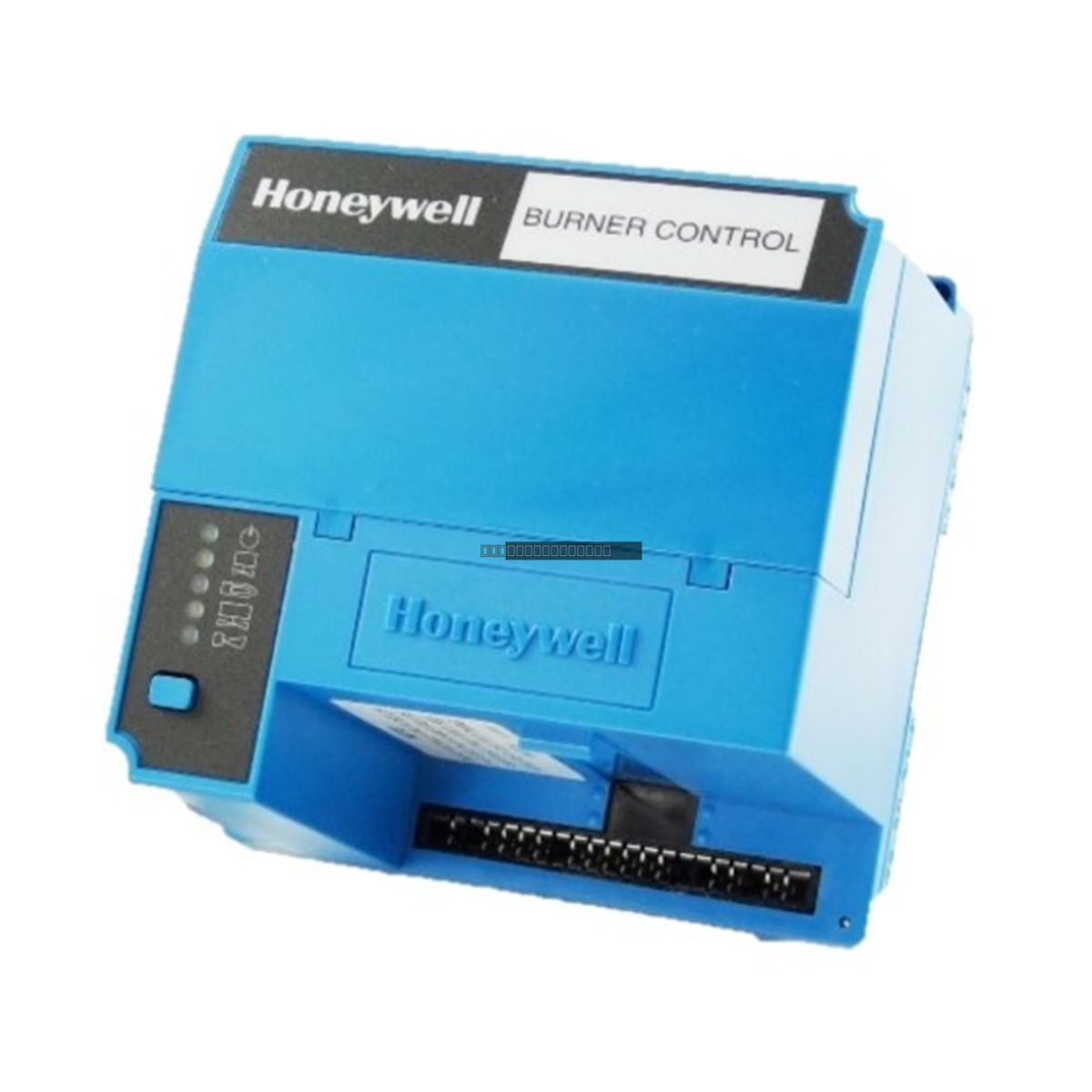

Honeywell RM7850A1001 7800 Series Burner Control Relay Module

Description

The Honeywell RM7850A1001 is a microprocessor-based integrated burner control relay module from the 7800 Series, specifically engineered for the automated sequencing, supervision, and safety management of industrial burner systems. This module provides comprehensive control over the entire combustion cycle, including purge, ignition, pilot transition, and shutdown logic. It is widely utilized in critical applications such as power plant boilers, refinery furnaces, and large-scale industrial heating processes where precise ignition control and robust flame safety interlocking are mandatory.

Features

• Integrated burner sequencing logic for automated start-up and shutdown cycles.
• Supports interrupted pilot operation for enhanced safety during ignition sequences.
• Configurable airflow proving logic to validate combustion air conditions prior to ignition.
• Deterministic timing control ensures compliance with industrial safety standards and European combustion timing requirements.
• Fast response lockout interlocks with diagnostic feedback for rapid fault isolation and reduced system downtime.
• Reliable relay architecture designed for continuous thermal cycling in demanding environments.

Applications

• Industrial boiler management systems.
• Refinery and petrochemical furnace control.
• Large-scale commercial and industrial heating processes.
• Combustion safety interlocking for gas and oil-fired burners.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from its base.
• The module must be mounted on a compatible 7800 Series wiring base.
• Verify that all external safety chain inputs and flame detector wiring are securely terminated according to the local electrical code and system wiring diagrams.
• Maintain proper ventilation around the module to ensure operating temperatures remain within the 0 to 60 deg C range.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
• Ensure that the airflow proving switch is correctly calibrated and wired to the designated input channels to prevent unsafe ignition sequences.

FAQ

What is the primary function of the RM7850A1001?

The RM7850A1001 acts as the central safety and sequencing controller for industrial burners, managing the ignition, flame monitoring, and shutdown sequences to ensure safe combustion operation.

Is this module compatible with existing 7800 Series bases?

Yes, the RM7850A1001 is designed for use with the standard Honeywell 7800 Series mounting bases, allowing for straightforward integration into existing control panels.

What does the 0.2 second postpurge timing signify?

The fixed 0.2 second postpurge timing is a safety feature that ensures the rapid removal of residual gases from the combustion chamber immediately following a burner shutdown, preventing the accumulation of combustible mixtures.
