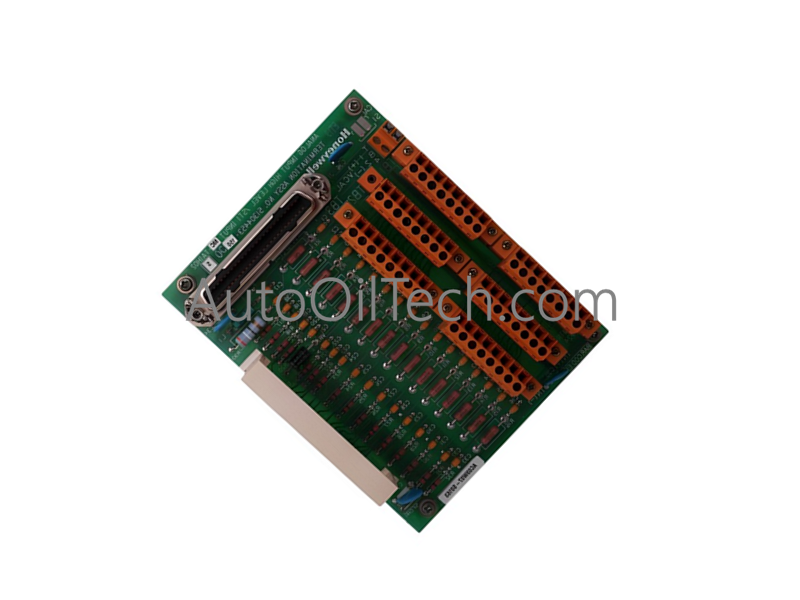

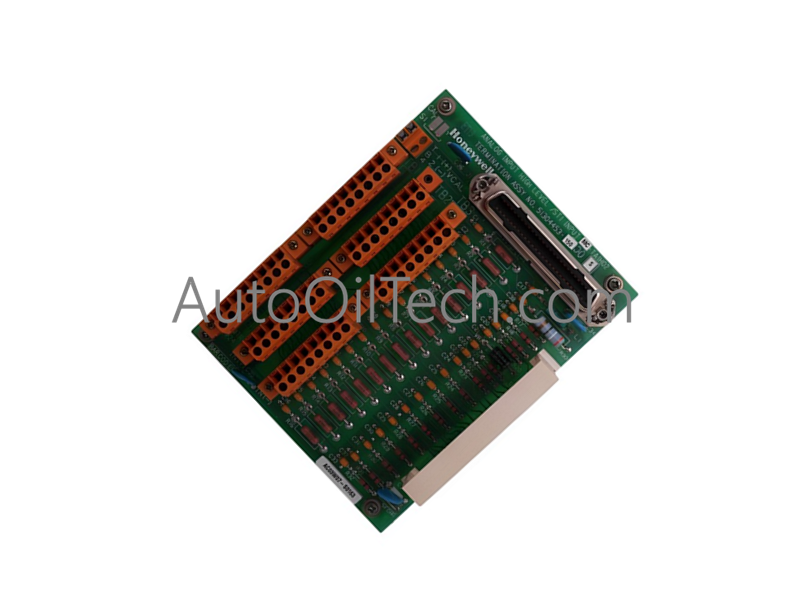

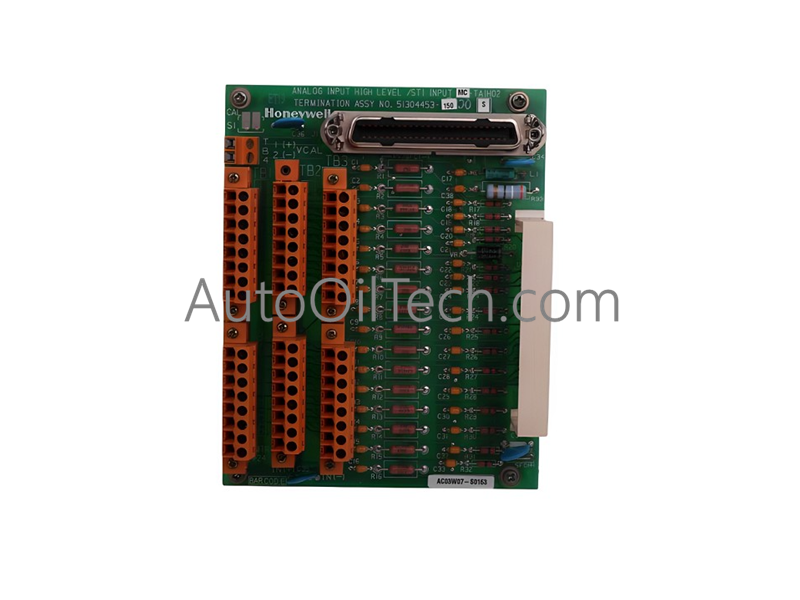

Honeywell MU-TAIH02 Analog Input Modules

Configured for high-level analog signal conditioning in Experion PKS platforms, the Honeywell MU-TAIH02 (MU-TAIH02 Analog Input Module) provides direct physical/electrical execution. It operates as a dedicated field termination assembly (FTA), interfacing high-level voltage, 4-20 mA current loops, and Smart Transmitter Interface (STI) field signals with host I/O processors across system backplane buses.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel Isolation

The MU-TAIH02 field termination module integrates dedicated input conditioning circuits that isolate 4-20 mA field loops and Smart Transmitter Interface (STI) signal paths from system backplane potentials. By enforcing channel isolation principles, the module suppresses high-frequency electromagnetic interference, attenuates common-mode noise, and prevents ground loop circulation across active field loops. Digital telemetry superposed on standard current loops passes through integrated signal filtering networks, maintaining deterministic signal routing and sub-millivolt accuracy into host Honeywell control nodes.

Frequently Asked Questions

Q: How does the MU-TAIH02 interface with smart field transmitters?

A: The module incorporates input circuitry designed to process both standard 4-20 mA analog signals and bi-directional smart transmitter digital signals (such as STI protocols), passing field variable data and diagnostic information to the I/O processor.

Q: Can field signal lines be serviced without disconnecting system power?

A: Field wiring can be disconnected or re-terminated at the individual terminal block connectors; however, standard site safety and loop isolation procedures must be observed to prevent accidental trip conditions on active analog control loops.

Field Installation Guidelines

• Mount the FTA module securely onto standard cabinet DIN rails or rack structures, ensuring all mounting clips engage fully to resist mechanical shock and vibration.
• Route low-level and high-level field signal conductors in separate grounded steel wireways, maintaining a minimum physical separation of 30 cm from AC power and high-voltage switching circuits.
• Terminate field cable drain shields to a single dedicated clean instrument ground bus inside the enclosure to maintain ground potential integrity and suppress noise coupling.
• Verify that terminal block screw connections are tightened to recommended torque levels (0.5 to 0.6 Nm) to guarantee low-resistance electrical contact across high-level analog loops.
