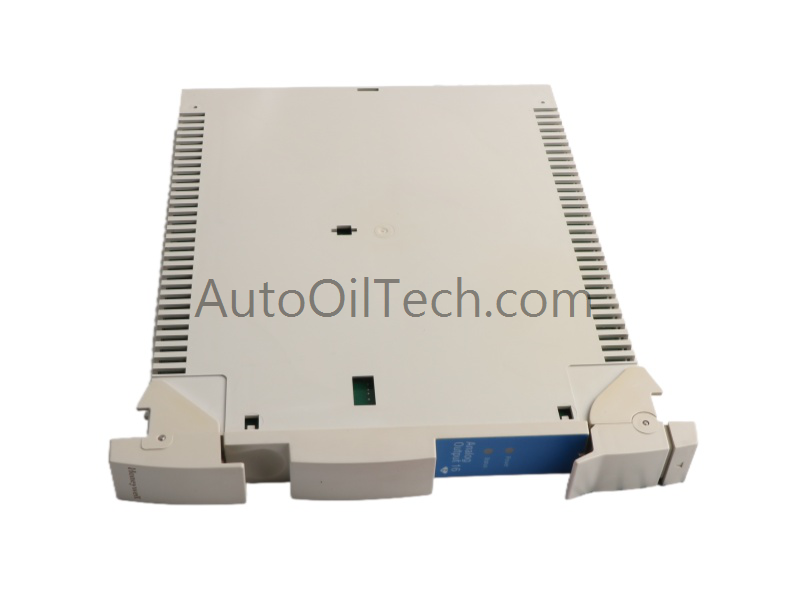

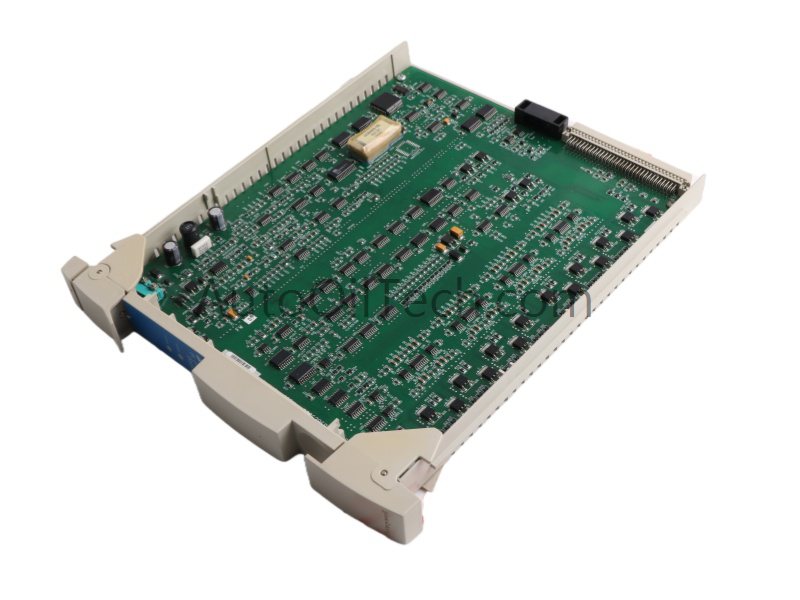

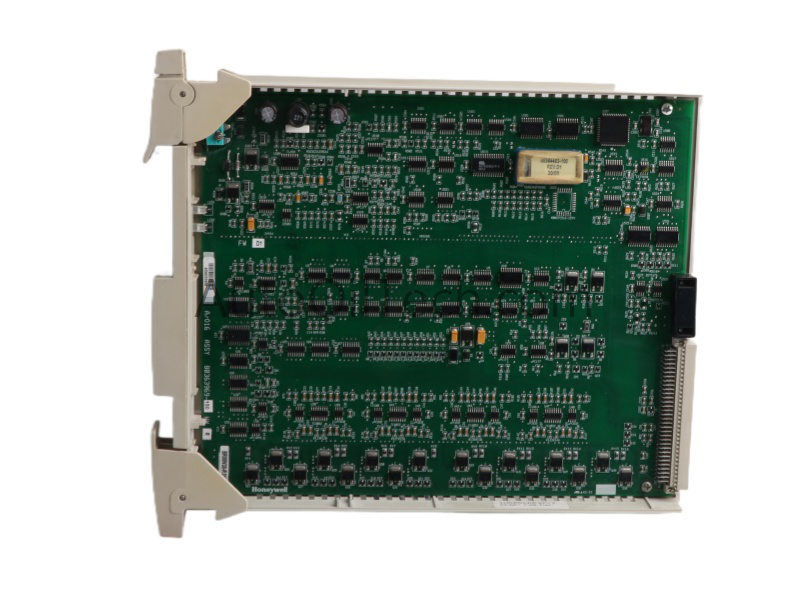

The Honeywell MC-PAOY22/ 80363969-176 Analog Output Module is a versatile 16-channel solution engineered for precision-driven industrial automation. Honeywell designs this module for high accuracy, low noise, and seamless integration into distributed control systems, ensuring reliable performance in demanding environments.
Technical Specifications
Parameter
Value
Model Number
MC-PAOY22/ 80363969-176
Module Type
Analog Output Module
Manufacturer
Honeywell
Series
Honeywell Industrial
Condition
Brand New
Dimensions (datasheet)
7 × 14 × 14.5 cm
Dimensions (functional)
9.5 × 12.7 × 2.5 cm
Weight (datasheet)
0.4 kg
Weight (functional)
0.58 kg
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System Compatibility
DCS
Communication Service
Ethernet router
Lifecycle Status
Active
Output Channels
16
Output Range
0–10 VDC / 4–20 mA
Accuracy
±0.05%
Output Current
20 mA per channel
Power Consumption
≤ 10 W
Output Noise
10 μVrms
Linearity
±0.05%
Readback Accuracy
±4%
Output Ripple
100 mV peak-to-peak
Features
Field-configurable settings
Functional Description
The MC-PAOY22/ 80363969-176 module delivers precise analog signal control across 16 channels, supporting both 0–10 VDC and 4–20 mA ranges. Its advanced design ensures minimal noise (10 μVrms), high linearity, and reliable readback accuracy, making it ideal for critical control tasks. Honeywell engineers this module with field-configurable settings, balancing performance with energy efficiency (≤10 W power consumption). Compact yet robust, it integrates seamlessly into Honeywell and third-party systems.
Applications and Compatibility
The Honeywell MC-PAOY22/ 80363969-176 integrates into distributed control systems, SCADA setups, and industrial automation projects requiring precise multi-channel analog outputs. It suits process control, manufacturing automation, petrochemical plants, power generation, and research environments where accuracy, scalability, and reliability are essential.
