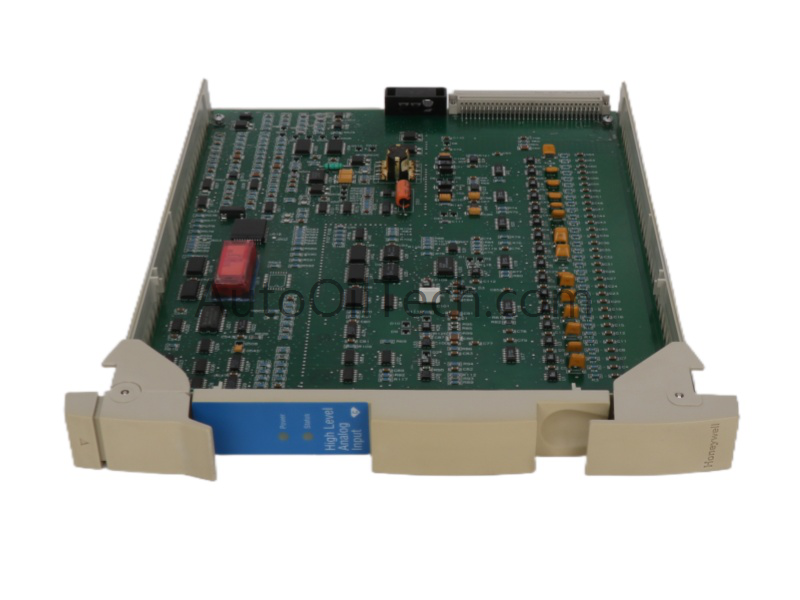

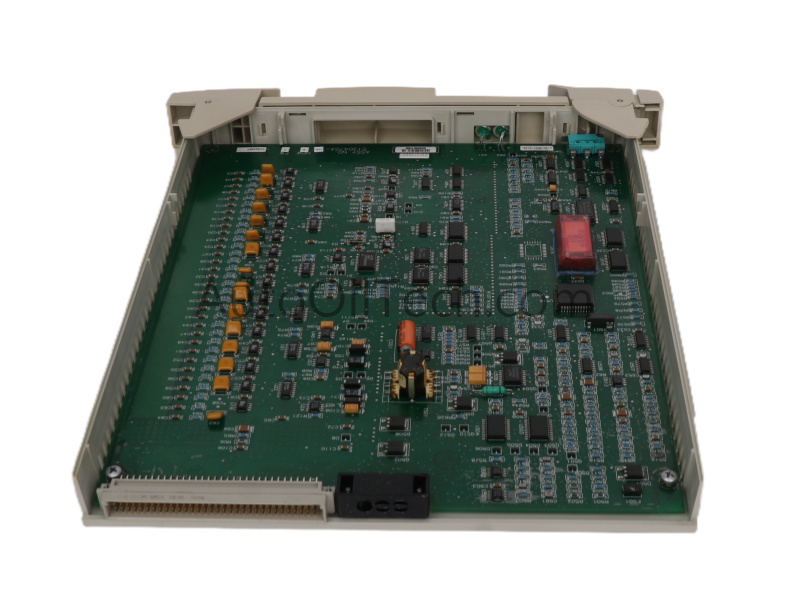

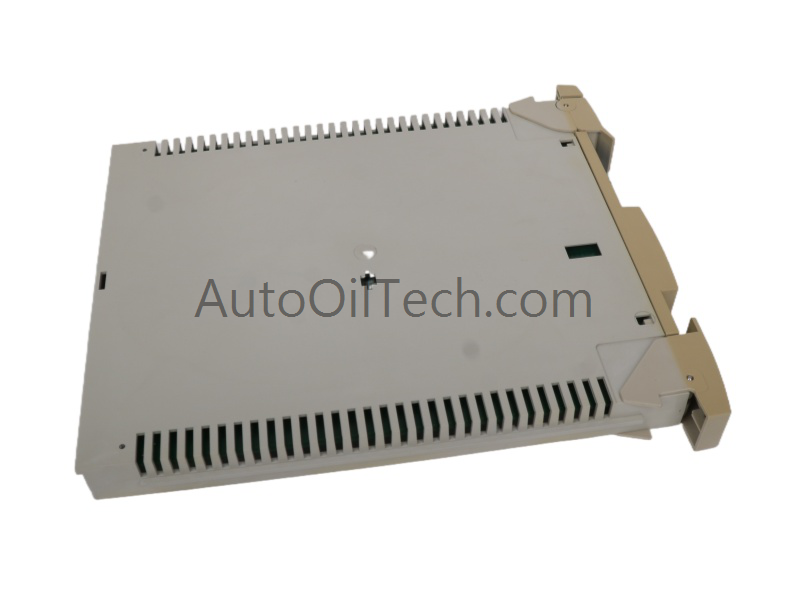

The Honeywell MC-PAIH03 51304754-176 Analog Input Module is a high-level input processor designed for Honeywell’s Universal Control Network (UCN). With 16 differential channels, it provides precise monitoring of voltage and current signals from industrial sensors and transmitters, ensuring reliable performance in demanding process environments.
Technical Specifications
Parameter
Value
Model Number
MC-PAIH03 51304754-176
Module Type
Analog Input Module
Manufacturer
Honeywell
Series
Honeywell Industrial
Condition
Brand New
Dimensions
7 × 14 × 14.5 cm
Weight
0.4 kg
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System Compatibility
DCS / UCN
Communication Service
Ethernet router
Lifecycle Status
Active
Input Channels
16 differential
Input Ranges
0–5V, 1–5V, 0.4–2V, 4–20 mA (via 250Ω resistor)
Resolution
16-bit A/D conversion
Noise Immunity
70 dB CMR, 32 dB NMR @ 60 Hz
Input Impedance
>10 MΩ
Crosstalk Rejection
60 dB
Protection
Conformal coating
Compatible FTAs
MU-TAIH02, TAIH12, TAIH53
Functional Description
The MC-PAIH03 51304754-176 module ensures high-integrity analog signal acquisition with 16 differential channels supporting multiple voltage and current ranges. Its 16-bit resolution provides precise data conversion, while advanced noise rejection and crosstalk isolation guarantee signal accuracy. Conformal coating enhances durability in harsh industrial environments, making it suitable for critical process applications.
Applications and Compatibility
The Honeywell MC-PAIH03 51304754-176 integrates seamlessly into UCN-based control architectures and distributed control systems. It suits industries such as petrochemical, power generation, manufacturing, and water treatment where precision, resilience, and reliable analog input processing are essential.
