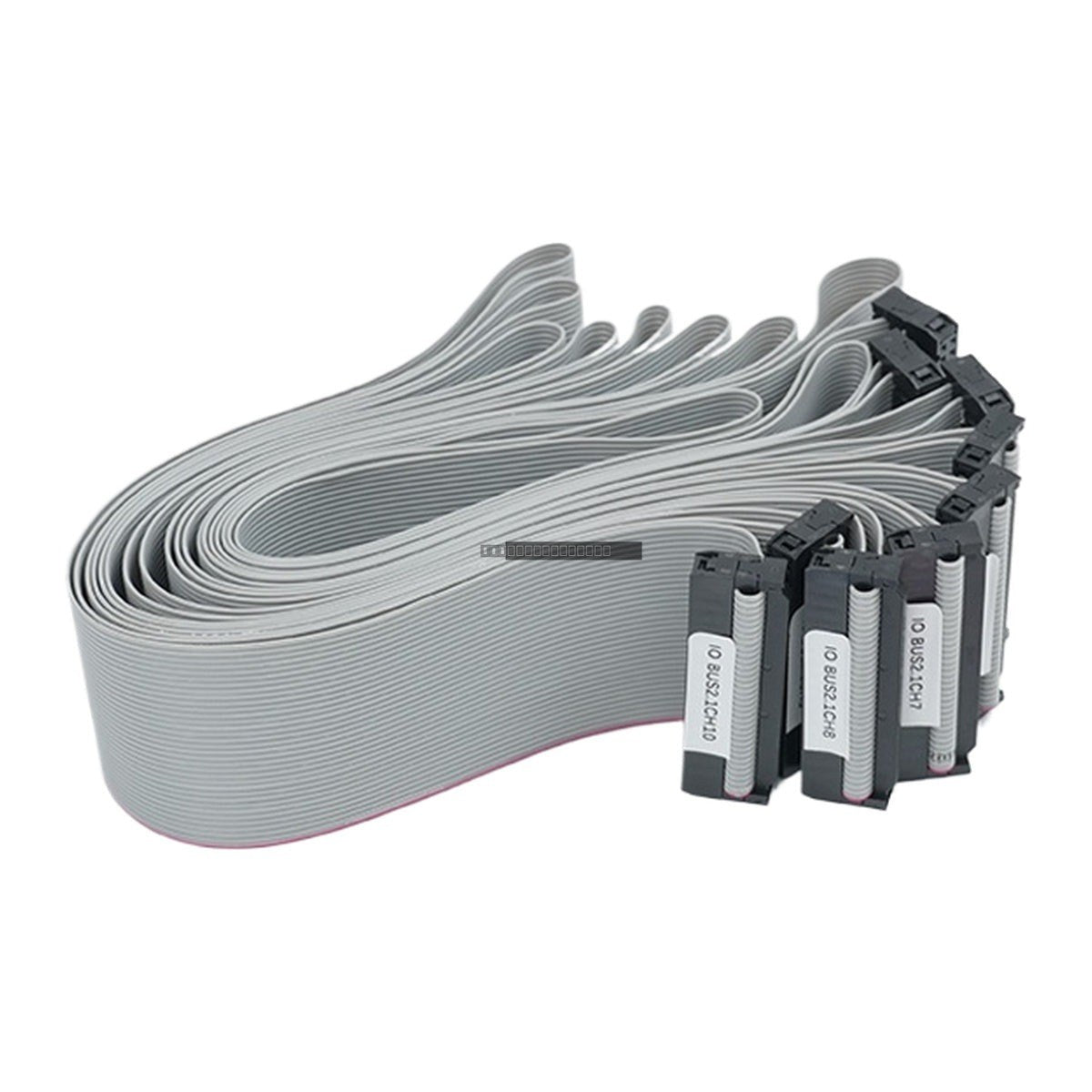

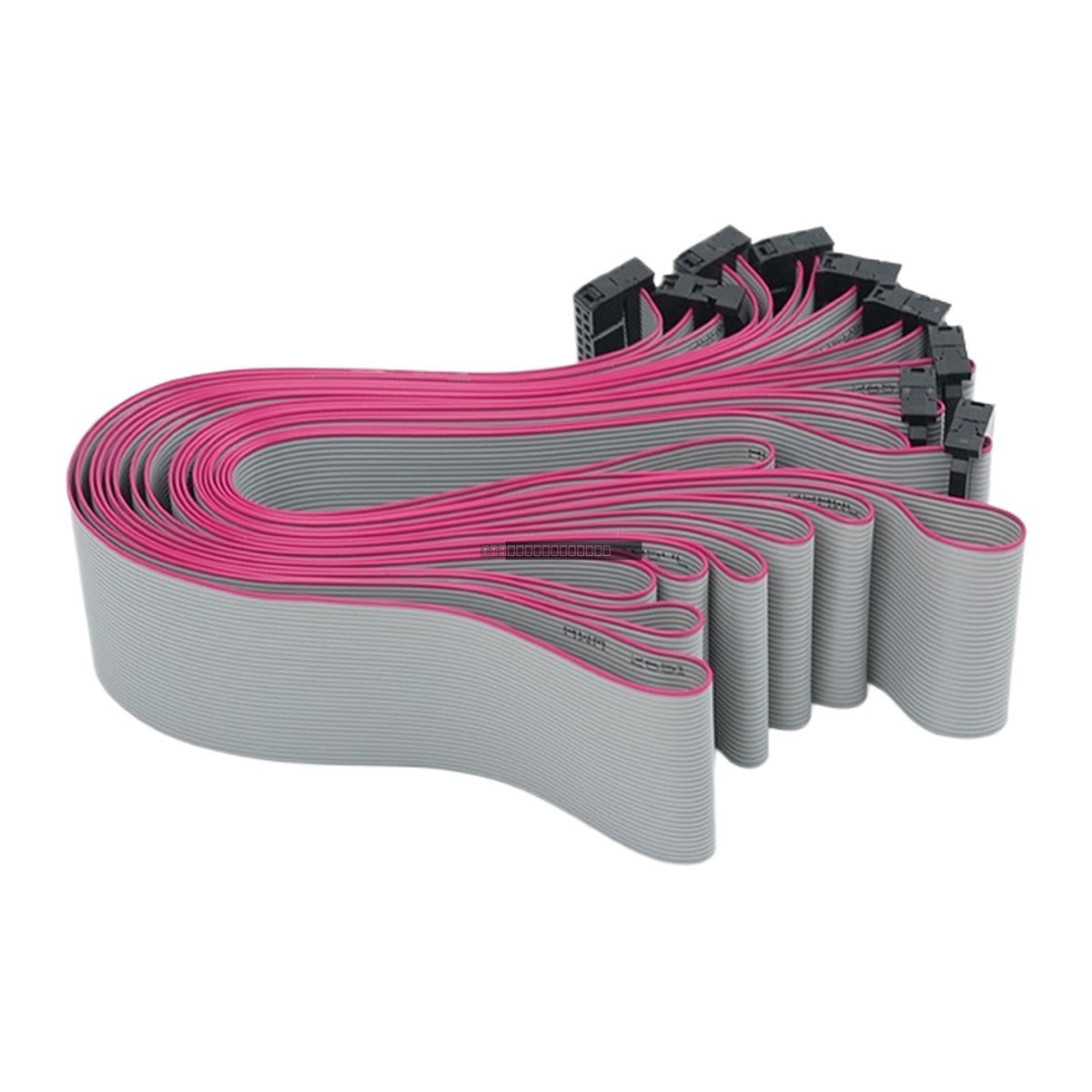

The Honeywell FS-IOBUS-CPIO is a specialized 34-pole I/O bus cable designed for the Honeywell Safety Manager system. It provides the critical communication link between the Controller Chassis (CPCHAS) and the I/O Chassis (IOCHAS), facilitating the transmission of scan, test, and update data between the QPP module and the I/O modules.
Features
Facilitates communication between Controller Chassis and I/O Chassis
34-pole female latch connector design
Supports both redundant and non-redundant system configurations
Shielded construction to ensure signal integrity and noise reduction in safety-critical environments
Compatible with Safety Manager A.R.T. and standard Safety Manager architectures
Applications
Oil & Gas Refineries: Managing emergency shutdown (ESD) and fire & gas (F&G) systems
Chemical Plants: Coordinating safety logic to prevent hazardous chemical reactions
Power Generation Facilities: Ensuring reliable communication between control and I/O chassis for mission-critical monitoring
Pharmaceutical & Biotech: Providing a scalable, flexible control system that meets strict regulatory standards
Technical Specifications
Model
FS-IOBUS-CPIO
Connector Type
34-pole latch (female)
Operating Temperature
-20 degC to +70 degC
Power Supply
24 V DC
Power Consumption
180 VA
Approvals
UL, CSA
Tariff Code
8537101190
Installation Guidelines
Ensure the system is powered down before connecting or disconnecting the I/O bus cable.
At the Controller chassis, connect the cable to the backplane connector marked "IO bus".
At the I/O chassis, connect the cable to the IO backplane (IOB-0001S/R) at the connector marked "IO bus".
For optimal EMI protection, route the cable along the middle horizontal bar at the back of the housing, keeping it separated from high-voltage power and watchdog cables.
Ensure the latching mechanism is fully engaged to prevent intermittent signal loss.
FAQ
What is the primary function of the FS-IOBUS-CPIO?
It serves as the communication backbone between the controller chassis and the I/O chassis, ensuring reliable data transfer between the QPP module and the I/O modules in a safety system.
Is this cable compatible with redundant systems?
Yes, the FS-IOBUS-CPIO is designed for use in both redundant and non-redundant controller and I/O configurations.
Which chassis types does this cable support?
It is designed to connect controller chassis such as the CPCHAS-0001 series to I/O chassis including the IOCHAS-0001S/R series.
