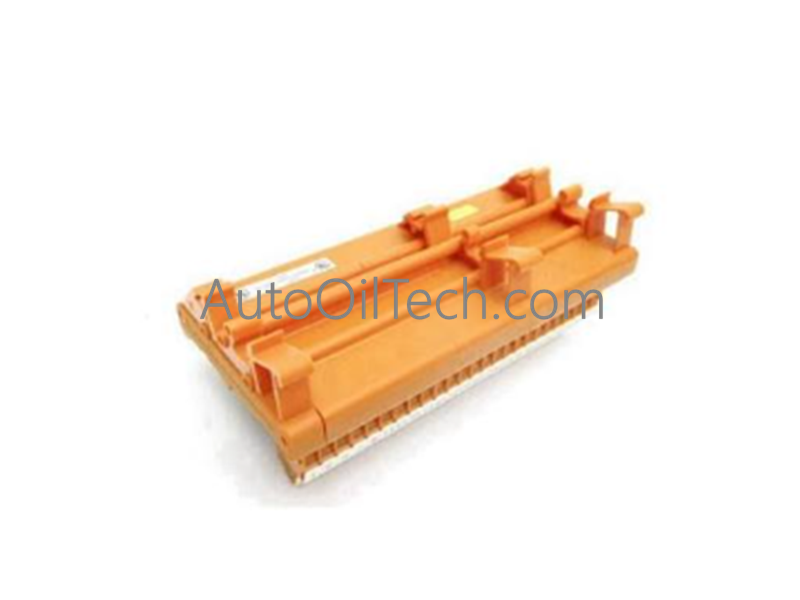

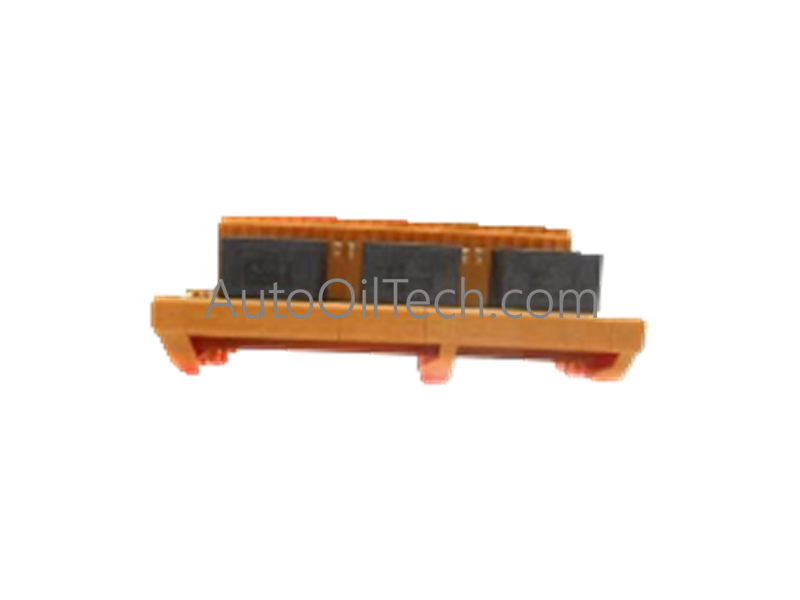

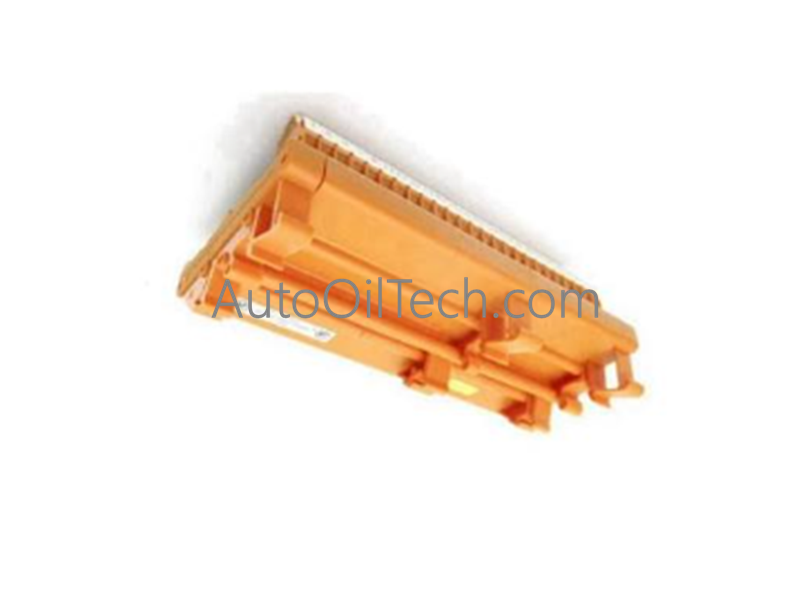

Honeywell FTA-T-04 Field Terminal Assembly

The Honeywell FTA-T-04, also cataloged as the FTA-T-04 Field Terminal Assembly, operates as a dedicated hardware component for field signal termination and cable routing within TPS, TDC 3000, and Experion PKS control system architectures.

Hardware Specifications

Process Control and DCS Characteristics

• 4-20 mA HART loop protocol: The terminal assembly supports standard process loop signals, allowing for seamless integration of HART-enabled instrumentation when paired with compatible I/O modules.
• FOUNDATION Fieldbus / Profibus PA connectivity: The physical layout facilitates the termination of fieldbus segment wiring, ensuring that network trunk and spur connections maintain required impedance characteristics.
• Channel-to-channel isolation: Electrical isolation performance is managed by the paired I/O module; the FTA maintains signal path separation through its PCB trace design to prevent cross-channel interference.
• Cold junction compensation (CJC): The mechanical interface supports the installation of temperature sensing elements or thermocouple extension wiring, preserving the thermal reference accuracy required for high-precision measurement loops.

Frequently Asked Questions

Q: Does the FTA-T-04 perform signal conditioning?

A: No, the FTA-T-04 is a passive field terminal assembly. Signal conditioning, isolation, and voltage translation are performed by the Honeywell I/O module connected to the FTA.

Q: Is this FTA compatible with legacy TDC 3000 systems?

A: Yes, the FTA-T-04 is designed for compatibility with legacy Honeywell architectures including TPS and TDC 3000, as well as modern Experion PKS systems, facilitating drop-in replacement or system upgrades.

Field Installation Guidelines

• Mounting: Secure the assembly to the control cabinet panel using the designated mounting holes. Ensure the unit is positioned to allow adequate clearance for field cable strain relief.
• Grounding: Terminate cable shields to the integrated grounding points provided on the FTA. Maintain a continuous ground path to the cabinet’s main bus to ensure electromagnetic interference immunity and signal loop reference stability.
• Wiring: Land field signal wires onto the screw or compression terminals according to the loop diagram. Use wire ferrules for stranded conductors to prevent strand splaying, and ensure all connections are torqued to avoid resistance buildup.
