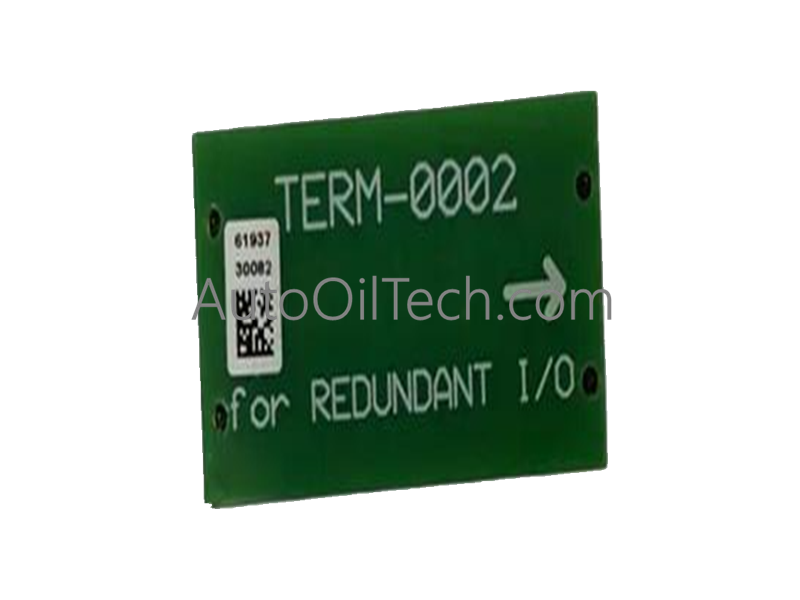

The Honeywell FS-TERM-0002 Bus Terminator is designed for FSC Safety Manager systems, ensuring stable communication by properly terminating the ESB bus. It prevents signal reflection, maintains impedance matching, and secures data integrity in redundant I/O architectures.
Specifications
Manufacturer: Honeywell
Part Number: FS-TERM-0002
Type: Bus Terminator Module
System Compatibility: Honeywell FSC Safety Manager / redundant I/O systems
Function: Provides electrical termination for ESB bus lines
Installation: Mounted at the end of the bus line in I/O chassis
Signal Integrity: Prevents bus reflection and communication errors
Withstanding Voltage: 1500 V AC/min (system dependent)
Wiring: Standard terminal block connection with M4 screws
Operating Temperature: −20 °C to +70 °C
Compliance: UL, CE certified
Weight: ~0.2 kg
Features
Reliable Termination: Ensures stable ESB bus communication
Noise Reduction: Prevents signal reflection and interference
System Integration: Compatible with Honeywell FSC redundant I/O systems
Easy Installation: Fits into designated I/O chassis slot
Industrial Durability: Built for continuous operation in automation environments
Maintenance Friendly: Clear labeling for quick identification and replacement
