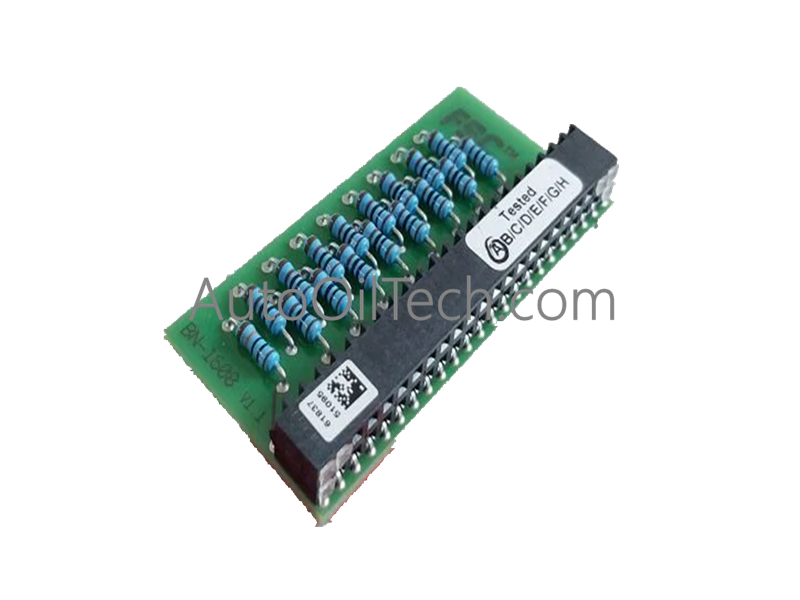

The Honeywell FC-BSDI-16UNI, also cataloged as the Adapter Module, is designed for integration within Safety Manager and Experion PKS systems. It provides a universal interface for digital input signals, ensuring reliable connectivity and isolation in industrial automation environments.
Hardware Specifications
Manufacturer: Honeywell
Product No.: FC-BSDI-16UNI
Product Type: Adapter Module
Channel Capacity: 16 digital input channels (universal)
Signal Type: Dry contact / voltage input (configurable)
Isolation: Channel‑to‑channel and logic isolation
Transmission Compliance: Compatible with Safety Manager I/O bus
Connector Type: Terminal block adapter interface
Operating Voltage: 24 VDC nominal
Operating Temperature: 0 °C to +60 °C
Shipping Weight: ~1.5 Kg
Features
Universal Input Handling: Supports multiple digital input types for flexible field integration.
High Channel Density: 16 input channels per module for efficient system design.
Robust Isolation: Channel‑to‑channel isolation ensures safe and reliable operation.
System Compatibility: Seamlessly integrates with Honeywell Safety Manager and Experion PKS systems.
Compact Design: Lightweight adapter module for easy installation and maintenance.
Frequently Asked Questions (FAQ)
Q: How many input channels does the FC-BSDI-16UNI support? A: It supports 16 universal digital input channels.
Q: What type of signals can be connected? A: Dry contact and voltage input signals are supported.
Q: Is the module isolated? A: Yes, it provides channel‑to‑channel and logic isolation for enhanced reliability.
Field Installation Guidelines
Mount the FC-BSDI-16UNI securely in the designated rack slot.
Connect field wiring to the terminal block adapter interface.
Ensure proper grounding and shielding to minimize interference.
Verify input signal configuration during commissioning.
Perform diagnostic checks to confirm stable input recognition.
