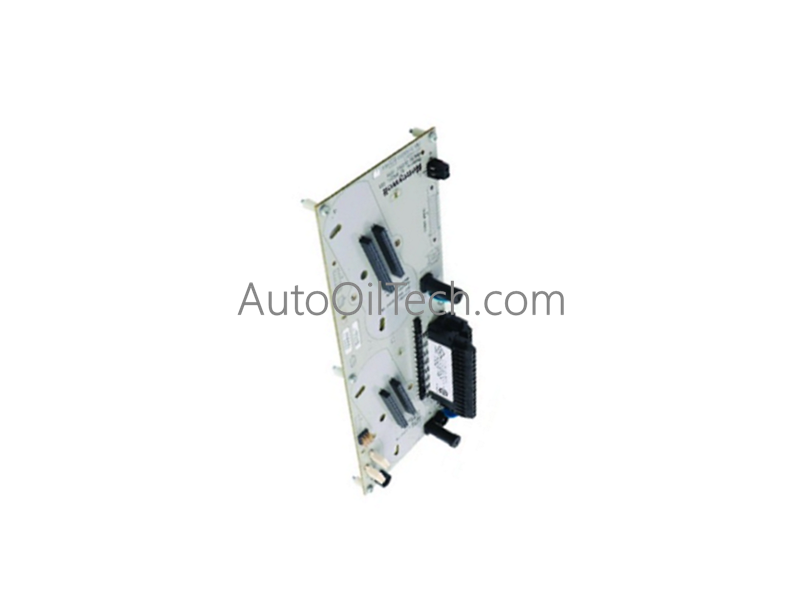

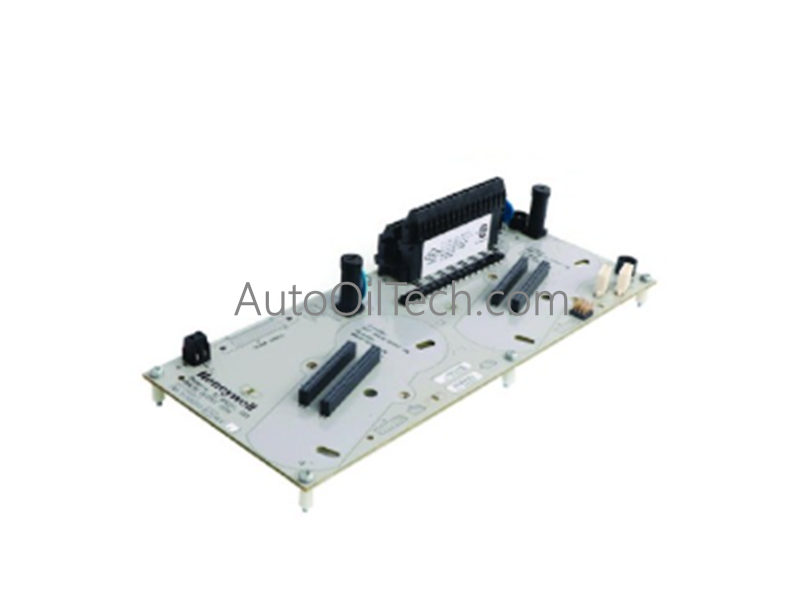

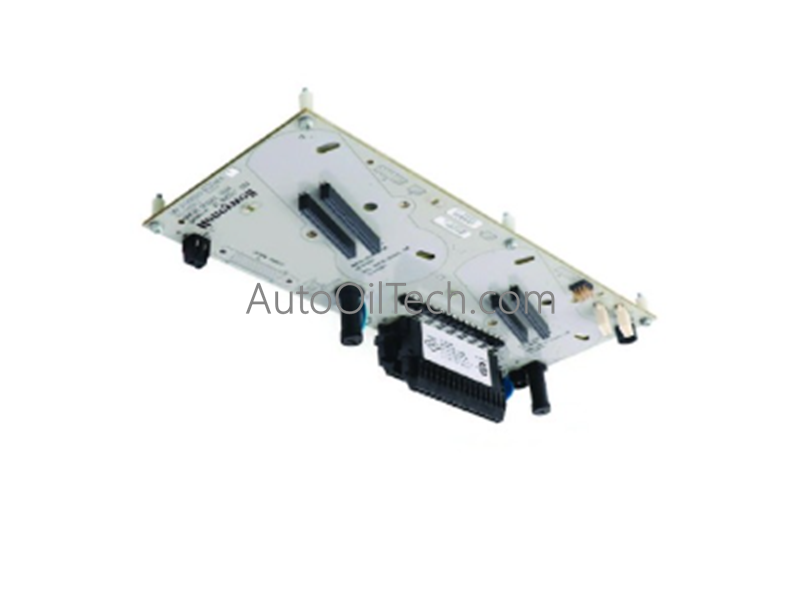

Honeywell DC-TDIL01 Digital Input IOTA

Configured for discrete signal acquisition in C300 controller platforms, the Honeywell DC-TDIL01 (DC-TDIL01 Digital Input 24 Vdc IOTA) provides direct physical and electrical execution of 24 Vdc digital input termination and signal processing within Experion PKS architectures.

Hardware Specifications

Process Control and DCS Instrumentation Characteristics

• 4-20 mA HART loop protocol: The IOTA assembly is engineered to support seamless integration into Experion PKS control schemes. It maintains signal path transparency for HART-enabled field devices, ensuring that secondary diagnostic data is efficiently passed to the controller without signal attenuation.
• Channel-to-channel isolation: The DC-TDIL01 provides electrical isolation for its 24 Vdc digital input channels. This separation is necessary to prevent ground loop propagation between discrete field sensors and the controller backplane, particularly when monitoring inputs from geographically dispersed field instruments.
• Cold junction compensation (CJC): The module is designed to operate within high-density control cabinets, where its physical footprint and thermal profile are optimized to support the precision of adjacent modules that rely on integrated CJC circuits.
• FOUNDATION Fieldbus / Profibus PA connectivity: The unit serves as a high-density termination point, translating discrete field inputs into deterministic data packets for the C300 controller, ensuring real-time response for process interlocks and monitoring tasks.

Frequently Asked Questions

Q: Can the DC-TDIL01 be used as a standalone module without a C300 controller?

A: No. The DC-TDIL01 is an I/O Termination Assembly (IOTA) designed exclusively for the Honeywell Experion PKS C300 controller platform. It requires the controller backplane and associated software configuration to function within an automation loop.

Q: How is the 24 Vdc input power monitored?

A: The IOTA includes onboard diagnostic support that interfaces with the controller to monitor input channel health and loop power status. Diagnostic alerts are generated via the Experion PKS engineering station if power levels fall outside defined operational thresholds.

Field Installation Guidelines

• Mounting: Secure the DC-TDIL01 onto the cabinet mounting rail using the integrated mechanical fasteners. Ensure the I/O module-to-IOTA connector is fully seated to guarantee bus continuity and prevent high-resistance contact points.
• Grounding: Bond the IOTA chassis ground to the cabinet earth bus using a low-impedance copper strap. A robust ground is mandatory for effective EMI suppression and to protect the digital input circuits from transient voltage spikes.
• Wiring: Terminate field signal conductors according to the documented I/O map. Keep discrete signal runs separated from AC power lines and VFD cabling by at least 150 mm to minimize inductive noise interference, which can lead to false state transitions in digital logic.
