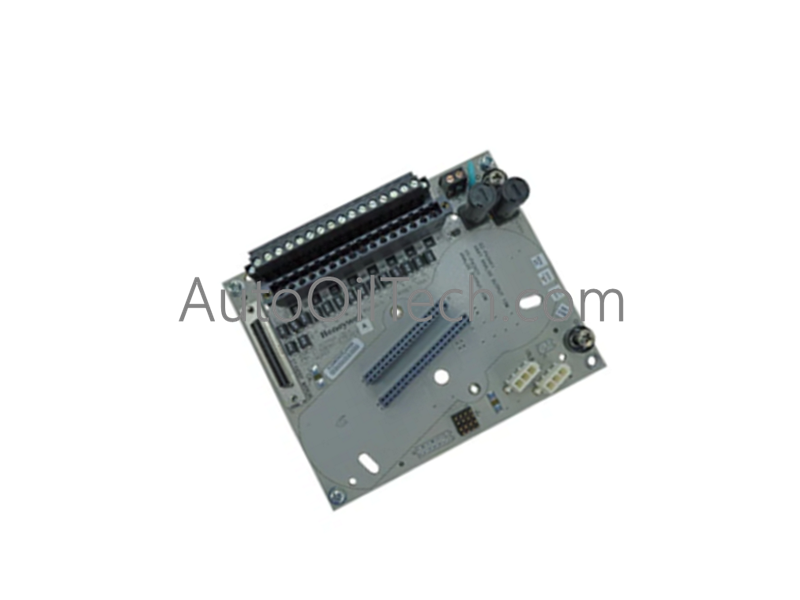

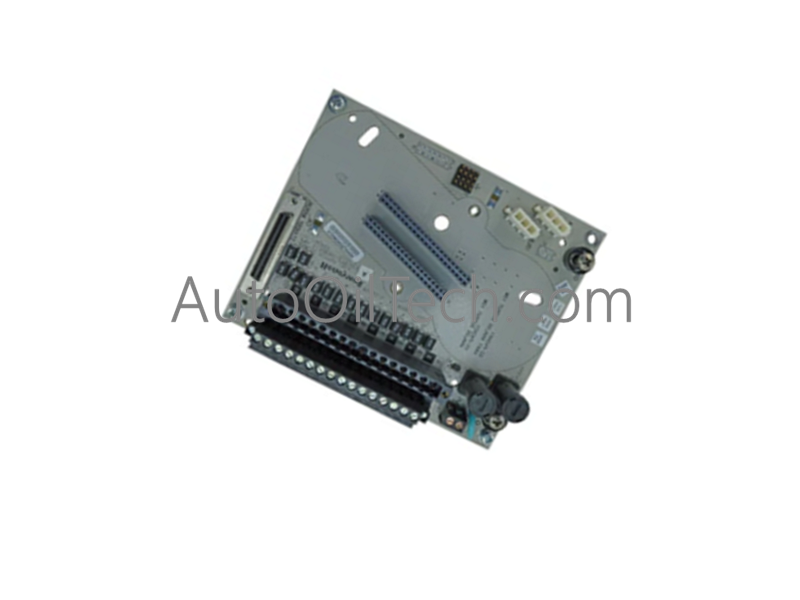

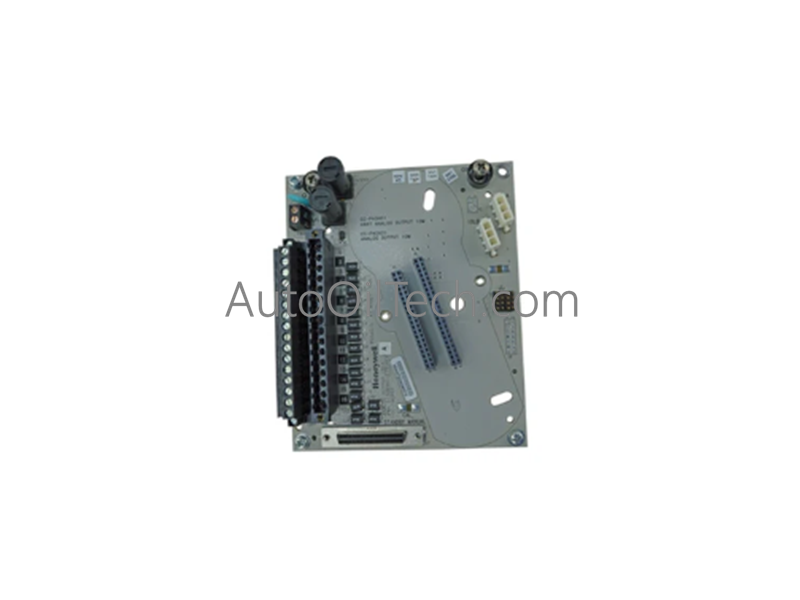

Honeywell DC-TCNT01 51307591-175 I/O Termination Assembly

Configured for routing and terminating communication interface lines in Experion PKS Series C networks, the Honeywell DC-TCNT01 (51307591-175 Controller I/O Termination Assembly) provides direct physical/electrical execution.

Hardware Specifications

Process Control Integration & Channel Isolation

The DC-TCNT01 serves as the termination backbone for communication and control modules, maintaining system stability through dedicated interface layouts:

• Coexistence with 4-20 mA HART Loop Protocols: The PCB trace layout is designed to suppress high-frequency digital noise, preventing network carrier signals from coupling into and corrupting neighboring analog 4-20 mA HART loops within the same cabinet.
• Channel-to-Channel Isolation Support: High-isolation physical barriers on the board route power and communication networks on separate layers, helping to preserve the channel-to-channel isolation design of the connected I/O processor modules.
• Electromagnetically Shielded Ports: The integrated RJ45 connection ports feature metal-shielded housings grounded directly to the chassis through the mounting standoffs, providing a continuous path to drain electromagnetic interference (EMI).

Frequently Asked Questions

Q: Does the DC-TCNT01 support redundant controller module installations?

A: No. The DC-TCNT01 is a non-redundant termination assembly. It is configured to accommodate a single controller interface or communication module.

Q: Can communication cables connected to this assembly be hot-swapped?

A: Yes. The communication ports are passive physical connections. RJ45 network cables can be disconnected or reconnected without damaging the IOTA board or the attached controller, though communication to that node will be temporarily lost.

Field Installation Guidelines

• Chassis Ground Connection: Mount the DC-TCNT01 on a grounded backplane using the provided metal standoffs and screws. Ensure clean metal-to-metal contact to establish a low-impedance ground path.
• Cable Bend Radius Maintenance: When routing network and signal cables to the RJ45 connectors, maintain a minimum bend radius of eight times the outer cable diameter to avoid damaging internal conductors.
• Cable Routing Segregation: Keep Ethernet communication cables and low-voltage signal wires physically separated from 120/240 V AC power distribution cables by at least 300 mm to suppress inductive noise.
• Secure Connection Check: Ensure all network cable RJ45 plugs lock firmly into the modular jacks on the assembly board to prevent vibration-induced signal dropouts.
