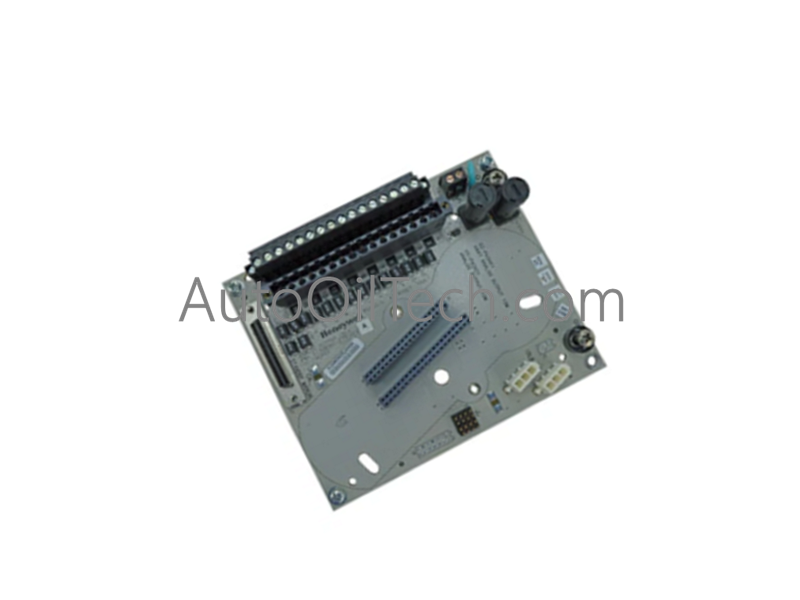

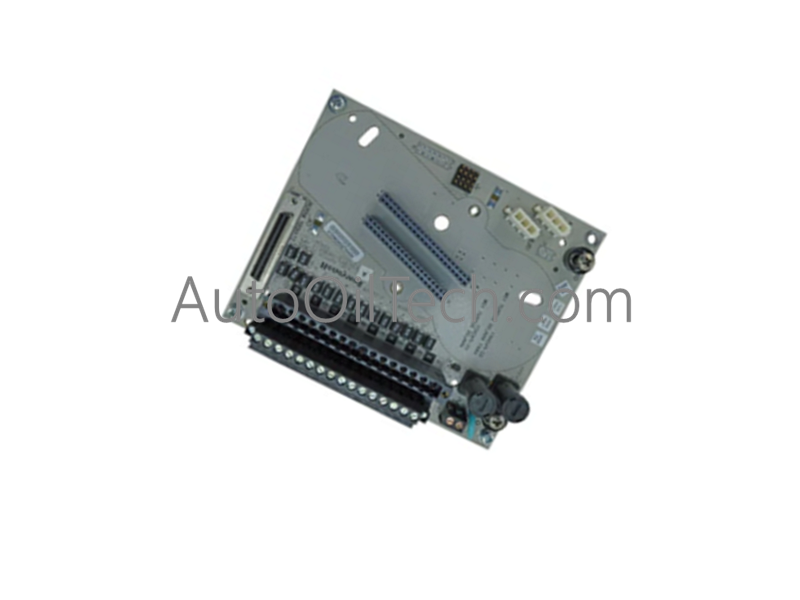

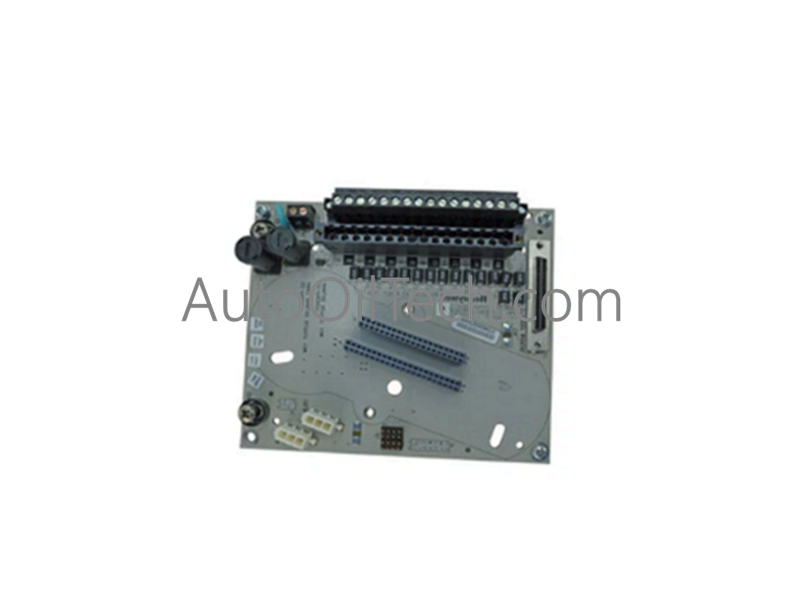

Honeywell DC-TCF902 51307945-176 Input/Output Termination Assembly

The Honeywell DC-TCF902, also cataloged as the 51307945-176 Input/Output Termination Assembly (IOTA), operates as a dedicated hardware component for routing and terminating analog field wiring signals within Honeywell distributed control platforms.

Hardware Specifications

Process Control Integration & Channel Isolation

• 4-20 mA HART Loop Protocol Coexistence: The physical circuit layout of the DC-TCF902 is designed to minimize high-frequency interference, preventing digital network communication from corrupting neighboring analog 4-20 mA HART loop wiring routed through the same panel trunking.
• Channel-to-Channel Isolation Support: The assembly routes electrical connections on separate, isolated board layers, aiding the connected I/O processor modules in maintaining high channel-to-channel isolation to prevent field ground loop currents.
• Cold Junction Compensation (CJC) Support: When paired with thermocouple input modules, the termination board layout supports stable reference junction measurement paths to ensure precise cold junction compensation across its operating temperature range.

Frequently Asked Questions

Q: Can the active interface modules on the DC-TCF902 be replaced during system operation?

A: Yes. The DC-TCF902 acts as a passive termination base, allowing compatible active I/O processor cards to be hot-swapped without disconnecting the field wiring termination terminal blocks.

Q: Does the DC-TCF902 require a dedicated external power supply connection?

A: No. As a passive termination assembly, the DC-TCF902 routes operating power directly from the backplane or the connected I/O processor module, removing the need for an independent power feed.

Field Installation Guidelines

• Chassis Ground Path Integrity: Secure the assembly onto the panel chassis using the integrated metal standoffs. Clean away any non-conductive paint at the mounting contact points to establish a low-impedance ground path.
• Field Cable Shield Termination: Ground the outer shields of all analog field cables at a single common grounding point on the cabinet earth bus to avoid generating parasitic ground loops.
• Signal Cable Segregation: Route low-voltage analog signal cables and communication links through dedicated wire ways, keeping them separated from 120/240 VAC power cables by at least 300 mm.
• Screw Terminal Torque Limits: Secure all field wires into the termination blocks, tightening to the specified manufacturer torque limits to prevent physical thread damage while ensuring solid electrical contact.
