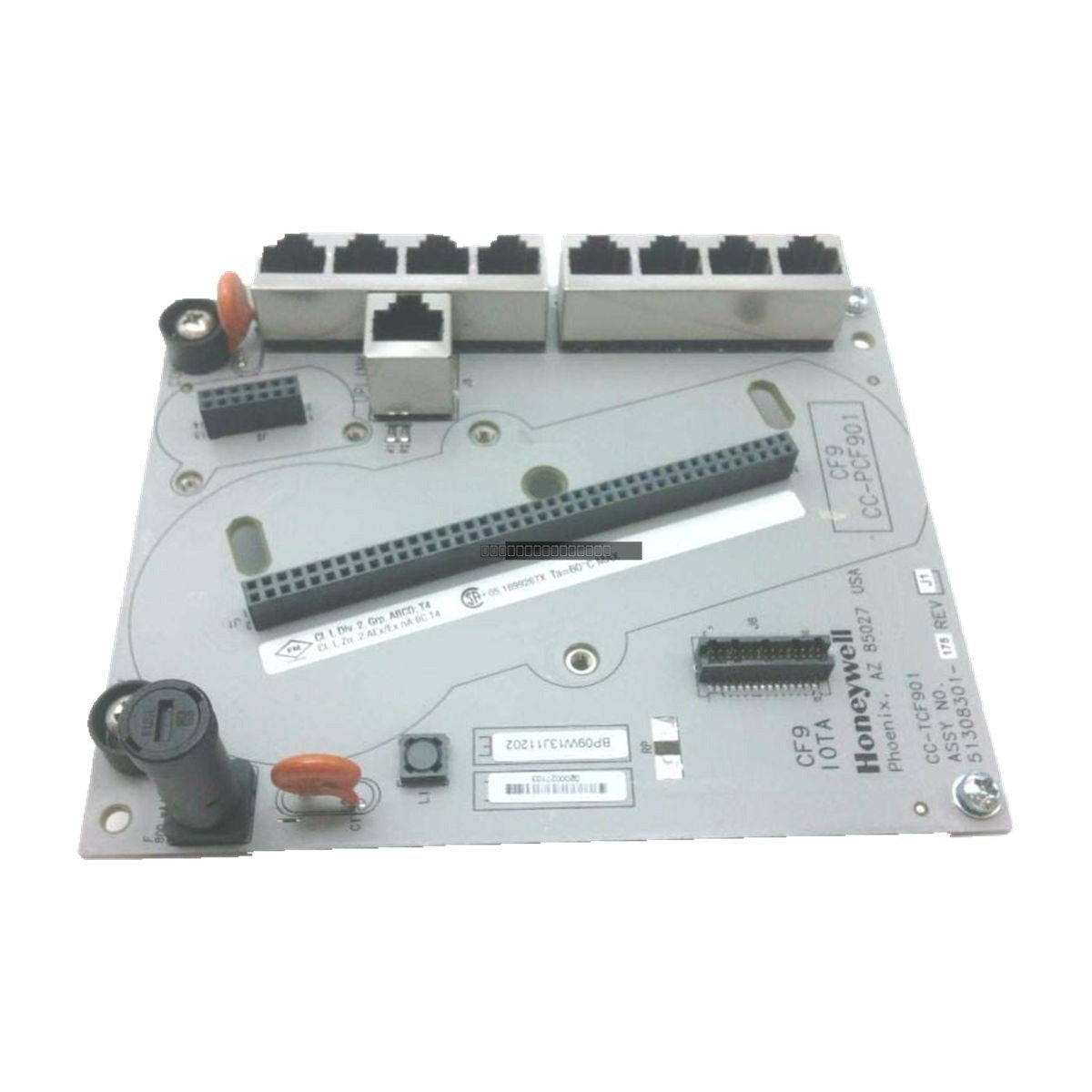

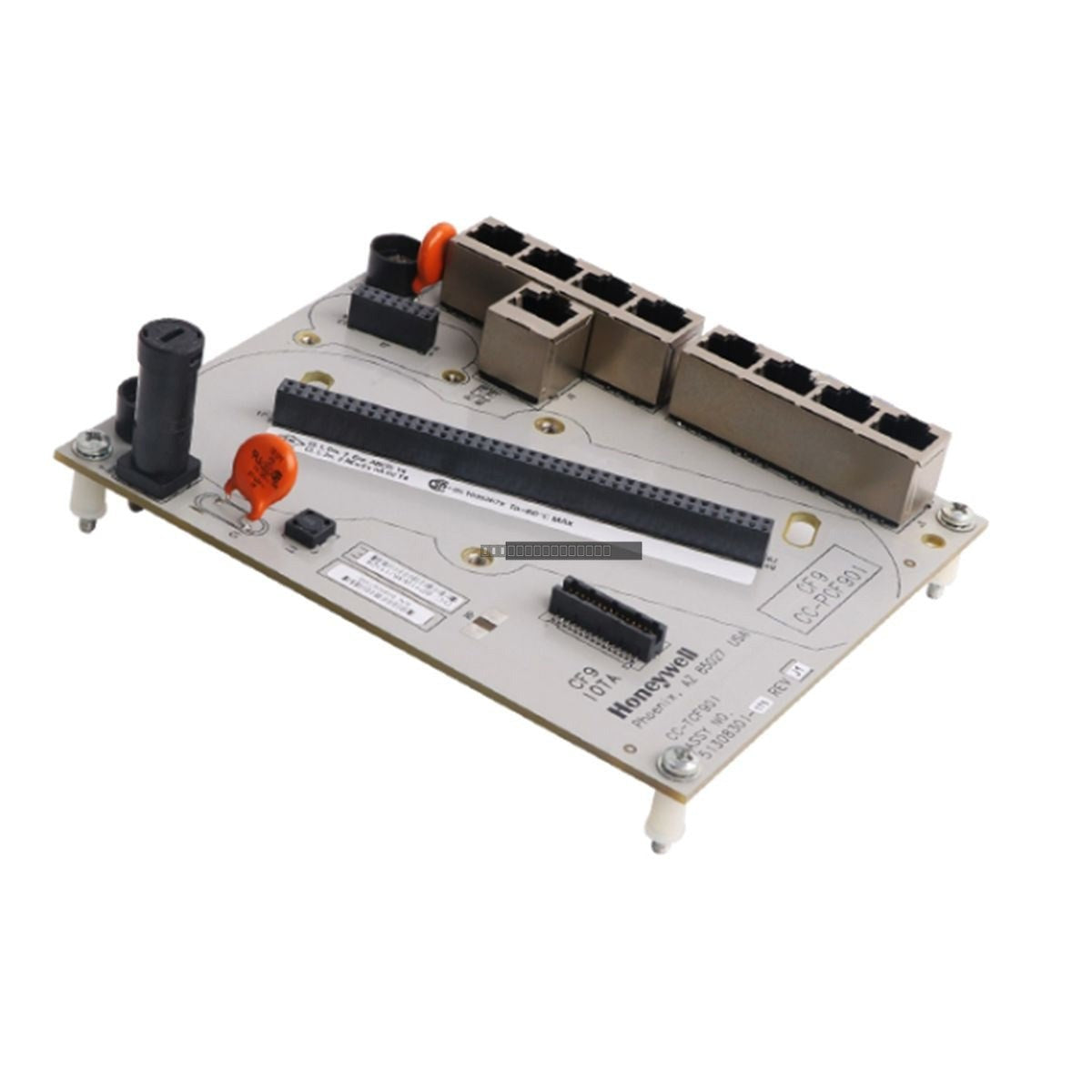

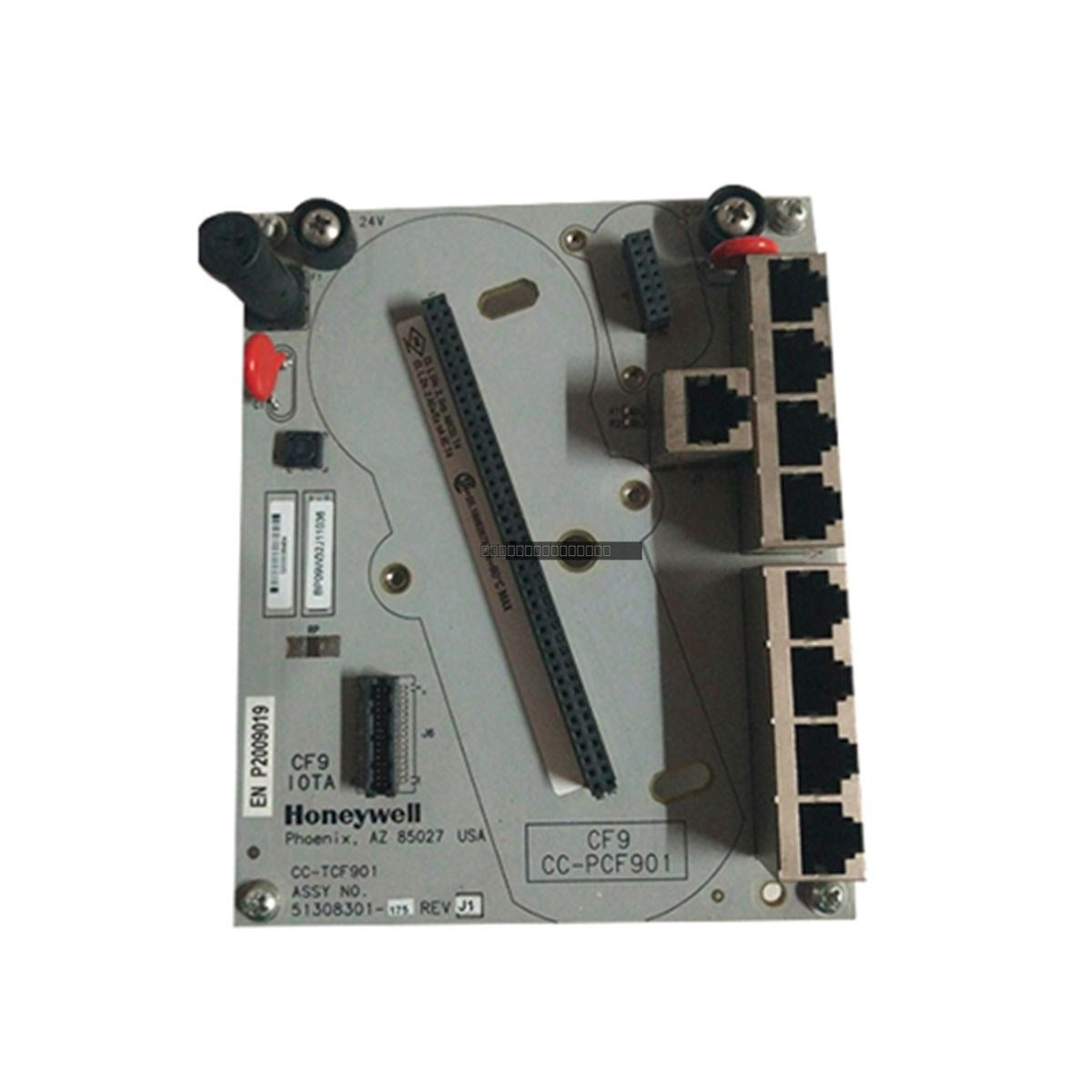

Honeywell CC-TCF901 51308301-175 Control Firewall I/O Termination Assembly

The Honeywell CC-TCF901 (part number 51308301-175) is a specialized Control Firewall Input/Output Termination Assembly designed for integration within industrial automation and communication networks. This module facilitates robust connectivity in demanding environments, ensuring reliable signal transmission and system protection.

Features

• Fiber Optic Compatibility: Optimized for medium-range single-mode glass fiber (9/125) applications.
• Performance Specifications: Operates at a 1300 nm wavelength with a maximum transmission distance of up to 15 km (9 miles).
• Connectivity: Equipped with an LC connector for standardized fiber interface.
• Rugged Design: Rated for industrial temperature ranges from -40 degC to +85 degC (-40 degF to +185 degF).
• Power Efficiency: Low power consumption profile, approximately 1 W.
• Compact Form Factor: Utilizes an SFP (Small Form-factor Pluggable) design for space-efficient mounting in control cabinets.

Applications

This termination assembly is primarily utilized in Honeywell distributed control systems and industrial networking architectures. It is essential for high-integrity data communication between controllers and remote I/O subsystems, particularly where fiber optic isolation and long-distance signaling are required to mitigate electromagnetic interference.

Technical Specifications

Installation Guidelines

• ESD Protection: Always handle the module using proper electrostatic discharge (ESD) grounding procedures to prevent damage to sensitive internal components.
• Power Down: Ensure that the host system power is switched off before inserting or removing the SFP module from the termination assembly.
• Fiber Handling: Clean fiber optic connectors according to industrial standards before insertion to prevent signal attenuation or permanent damage to the optical port.
• Environment: Mount the assembly in a location that ensures adequate ventilation and maintains the operating environment within the specified -40 degC to +85 degC range.
• Cable Routing: Route fiber optic cables away from high-voltage lines and heavy machinery to prevent mechanical stress and signal interference.

FAQ

What is the primary function of the CC-TCF901?
It serves as an I/O termination assembly for control firewalls, specifically handling fiber optic signal conversion and transmission within Honeywell control systems.

Is this module suitable for outdoor use?
While it is rated for a wide industrial temperature range (-40 degC to +85 degC), it must be installed within a NEMA-rated or equivalent protective industrial enclosure to prevent exposure to moisture, dust, and direct environmental elements.
