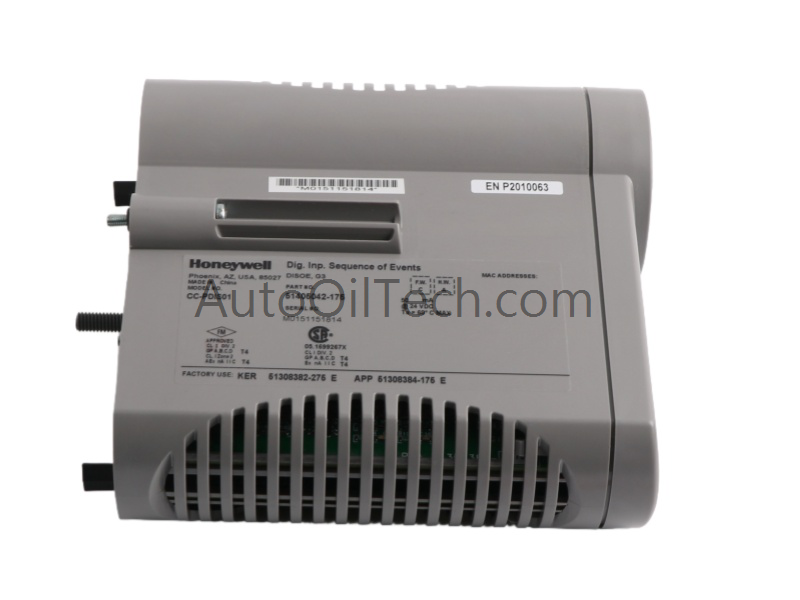

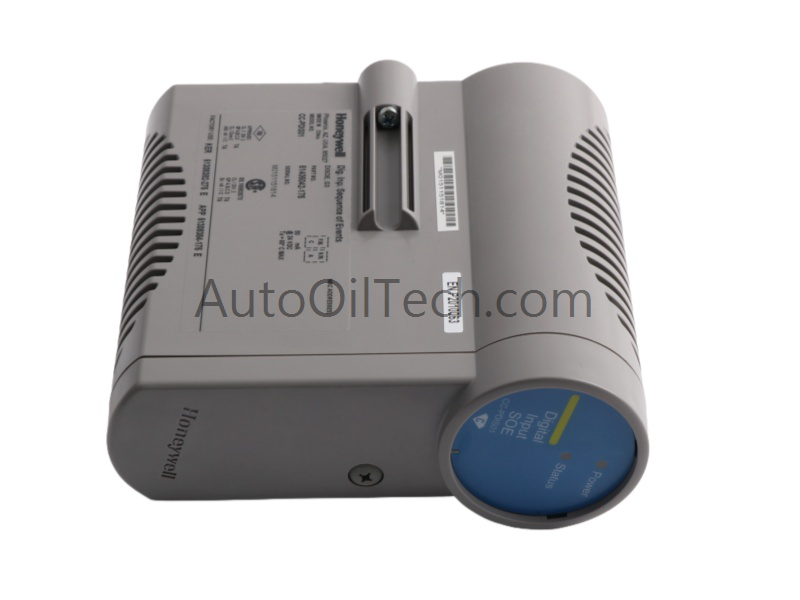

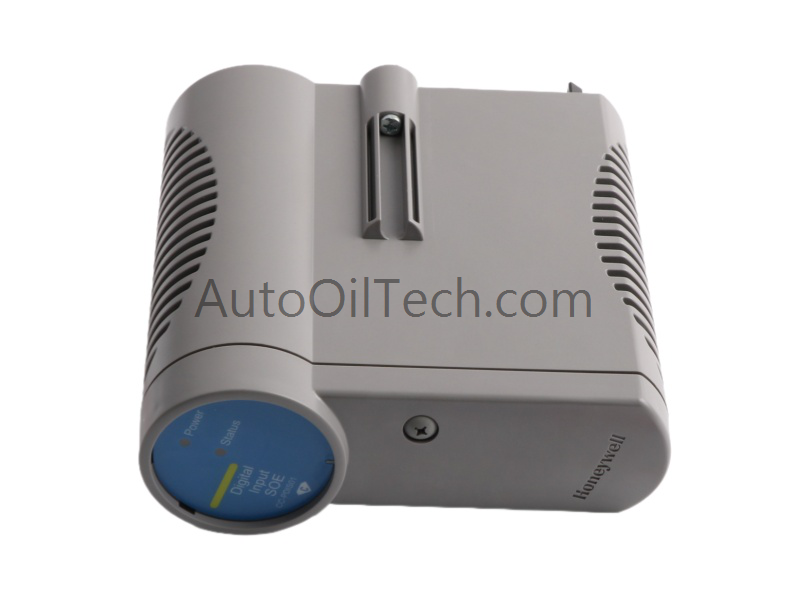

The Honeywell CC-PDIS01 (51405042-176) Digital Input Module is a high-performance input board designed for Honeywell Safety Manager systems within distributed control architectures (DCS). With 32 input channels and advanced diagnostics, it ensures precise monitoring and reliable event sequencing in safety-critical industrial environments.
Technical Specifications
Model Number:CC-PDIS01 (51405042-176)
Manufacturer: Honeywell
Module Type: Digital Input Module
Product Range: Safety Manager
System Compatibility: DCS architectures
Input Channels: 32 discrete inputs (24 VDC)
Operational Modes:
Normal: 20 ms PV scan
Sequence of Events (SOE): 1 ms resolution
Low Latency: 5 ms PV scan
Diagnostics: Internal diagnostics with open-wire detection
Voltage Range: 18–30 VDC
ON Sense Parameters: ≥13 VDC or ≥3 mA
OFF Sense Parameters: ≤5 VDC or ≤1.2 mA
Redundancy: Optional redundancy supported
Field Power: Internal/external selection with onboard excitation power
Safety: Non-incendive field power, galvanic isolation
Weight: 0.4 kg
Dimensions: 24 × 18.8 × 6.5 cm
Origin: USA
HS Code: 8537101190
Condition: Brand New
Lead Time: In Stock
MOQ: 1
Lifecycle Status: Discontinued (Dec 31, 2018)
Key Features
32-channel digital input with precise 1 ms SOE resolution
Multiple operational modes for flexible application requirements
Advanced diagnostics with open-wire detection for enhanced reliability
Optional redundancy for safety-critical applications
Onboard excitation power eliminates need for marshalling power
Non-incendive field power and galvanic isolation for safe operation
Rugged design suitable for demanding industrial environments
Application Scenarios
Safety-critical process industries requiring precise event sequencing
Manufacturing plants with distributed control systems
Industrial automation setups needing reliable digital input monitoring
Legacy Honeywell Safety Manager systems requiring replacement modules
FAQ
Q: What makes the CC-PDIS01 suitable for safety-critical applications? A: Its advanced diagnostics, redundancy options, and galvanic isolation ensure reliable and safe operation.
Q: Is the CC-PDIS01 still in production? A: No, it was discontinued on Dec 31, 2018, but remains available for legacy system support.
